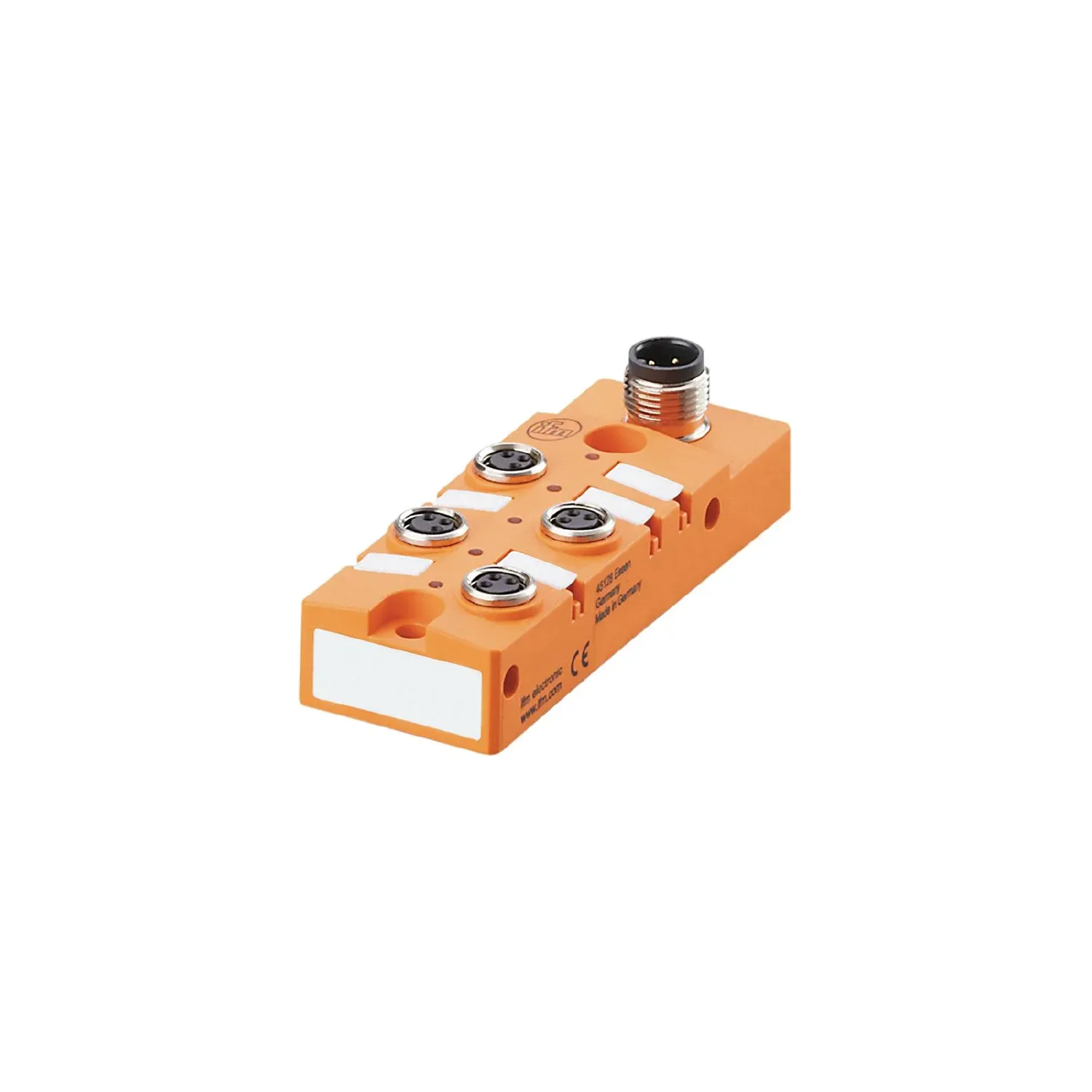

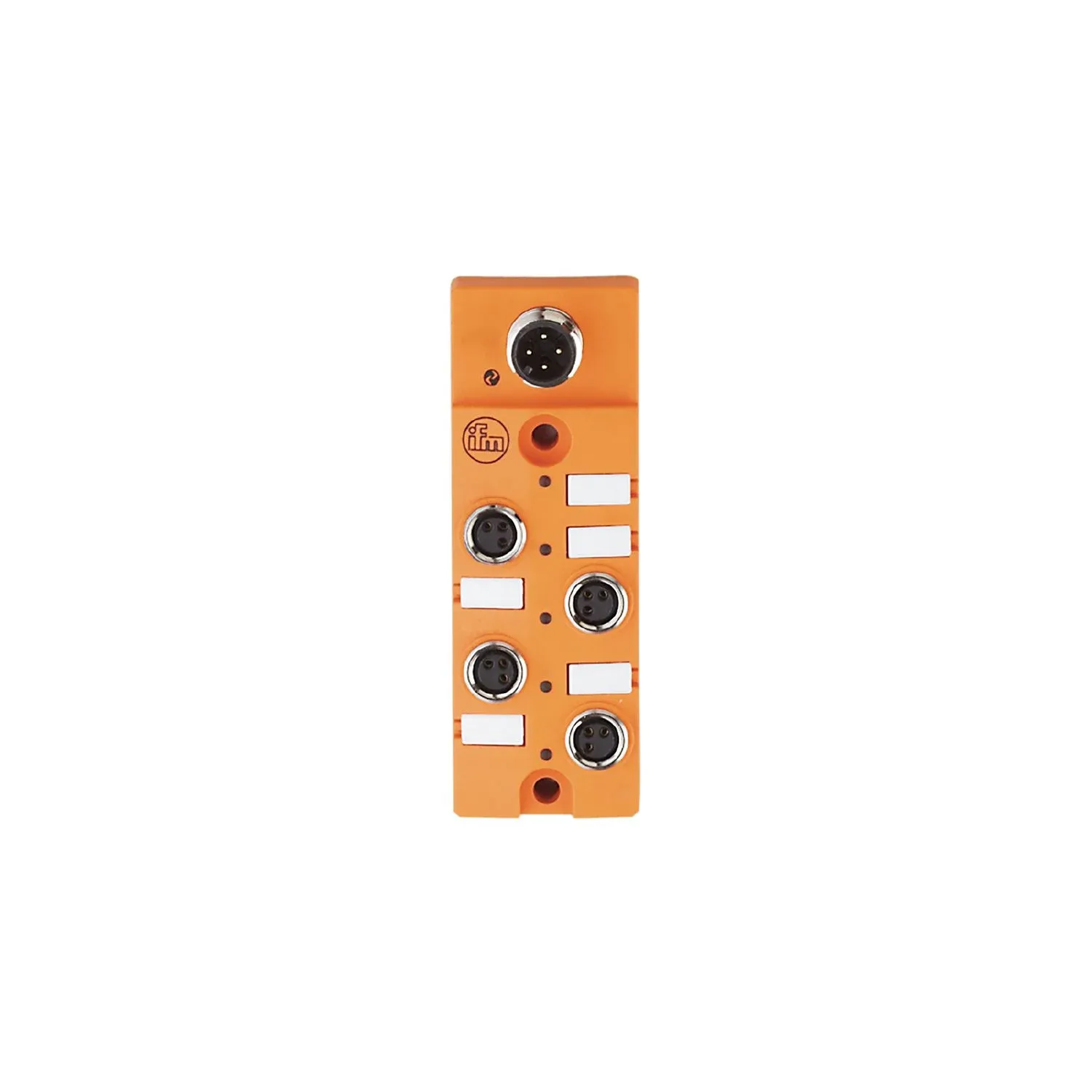

IFM AL2410
AL2410
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Compact design due to M8 sockets
Robust design for use in harsh industrial environments
Detection of short circuit and overvoltage
Parameter setting and diagnostics via IO-Link
Extension of IO-Link masters with additional inputs and outputs
Specification
Electrical data
| Operating voltage[V] [V] | 18...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | 50 |
| Current rating per port[A] [A] | 0.1 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Input current limitation[mA] [mA] | 15 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Supported DeviceIDs | IO-Link Device 789 |
| IO-Link Device | 789 |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | no |
| Process data binary | 32 |
| Min. process cycle time[ms] [ms] | 2.9 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Protection | IP 67 |
| Protection rating (NEMA 250) | 6P |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|
Mechanical data
| Weight[g] [g] | 103.7 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 85.5 x 30 x 23.7 |
| Materials | housing: PBT; socket: brass nickel-plated; O-ring: FKM |
| Sealing material | FKM |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Accessories
| Items supplied | panel for labelling Protective caps: 2 |
|---|---|
| Accessories (optional) | Protective cap: M8, E73005 |
Remarks
| Remarks | For use in NFPA 79 applications only The device is to be operated to IO-Link specification V1.1.2. The maximum cable length of the IO-Link cable is 20 m. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Inputs
| Connector | 4 x M8; coding: A; Sealing: FKM |
|---|
