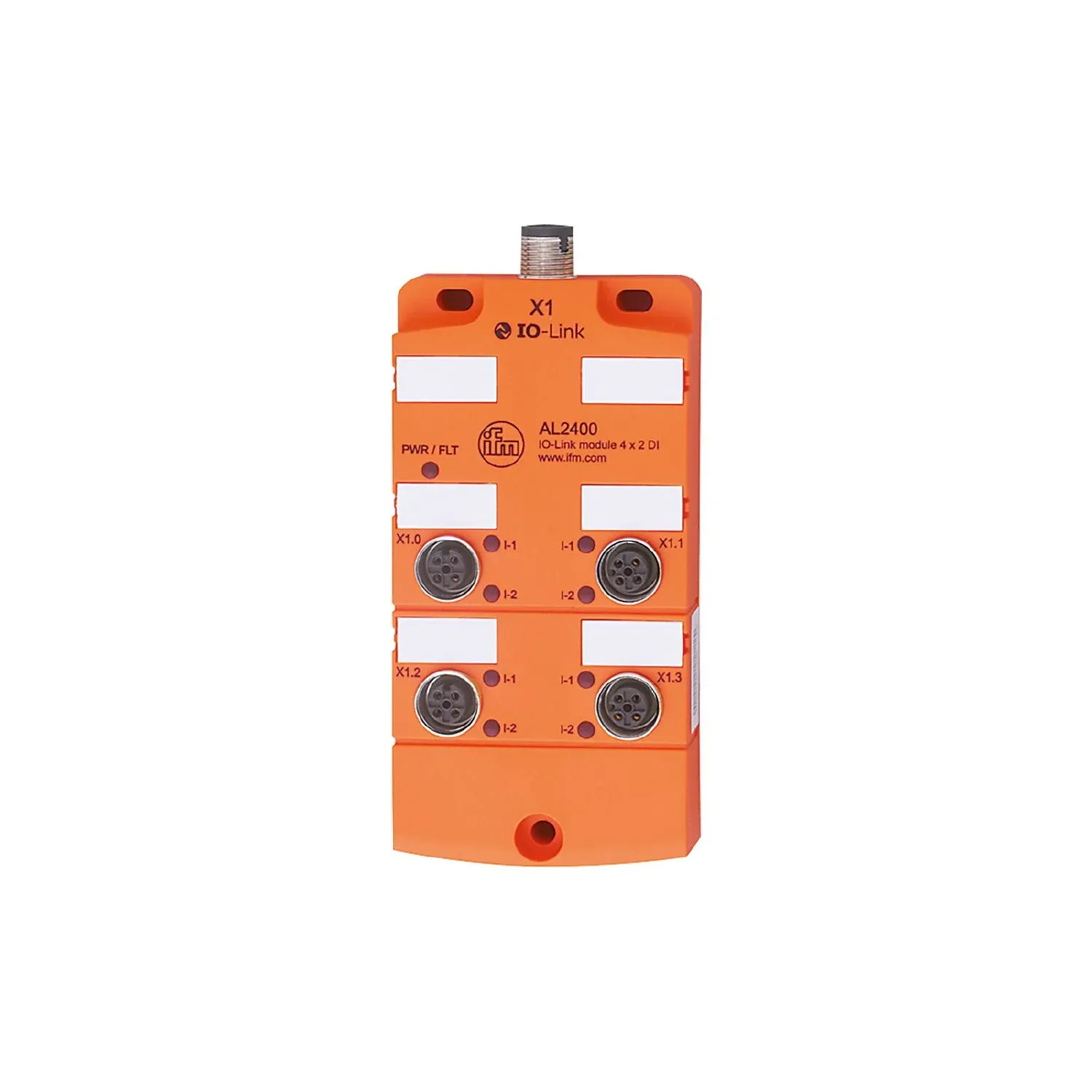

IFM AL2400
AL2400
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Data and energy transmission also possible with unscreened connection cable
Clearly visible LEDs for displaying operation, switching status and error
Four ports with two binary inputs each for eight sensors
Robust design with full potting for use in harsh industrial environments
For the simple connection of binary sensors to any IO-Link master
Specification
Electrical data
| Operating voltage[V] [V] | 18...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Current rating per port[A] [A] | 0.1 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 8 |
|---|
Inputs
| Number of digital inputs | 8; (4 x 2) |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | IO-Link |
| Input current limitation[mA] [mA] | 15 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Supported DeviceIDs | IO-Link Device 554 |
| IO-Link Device | 554 |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | no |
| Process data analogue | 1 |
| Process data binary | 12 |
| Min. process cycle time[ms] [ms] | 2.9 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
| Protection rating (NEMA 250) | 6P |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|
Mechanical data
| Weight[g] [g] | 300 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 128.5 x 60 x 27 |
| Materials | housing: PA; socket: brass nickel-plated; O-ring: FKM |
| Sealing material | FKM |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Accessories
| Accessories (optional) | Stainless steel sleeve, for installation in case of high mechanical stress , E70402 |
|---|
Remarks
| Remarks | For use in NFPA 79 applications only The device is to be operated to IO-Link specification V1.1.2. The maximum cable length of the IO-Link cable is 20 m. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Process connection
| Connector | 4 x M12; coding: A; Sealing: FKM |
|---|
