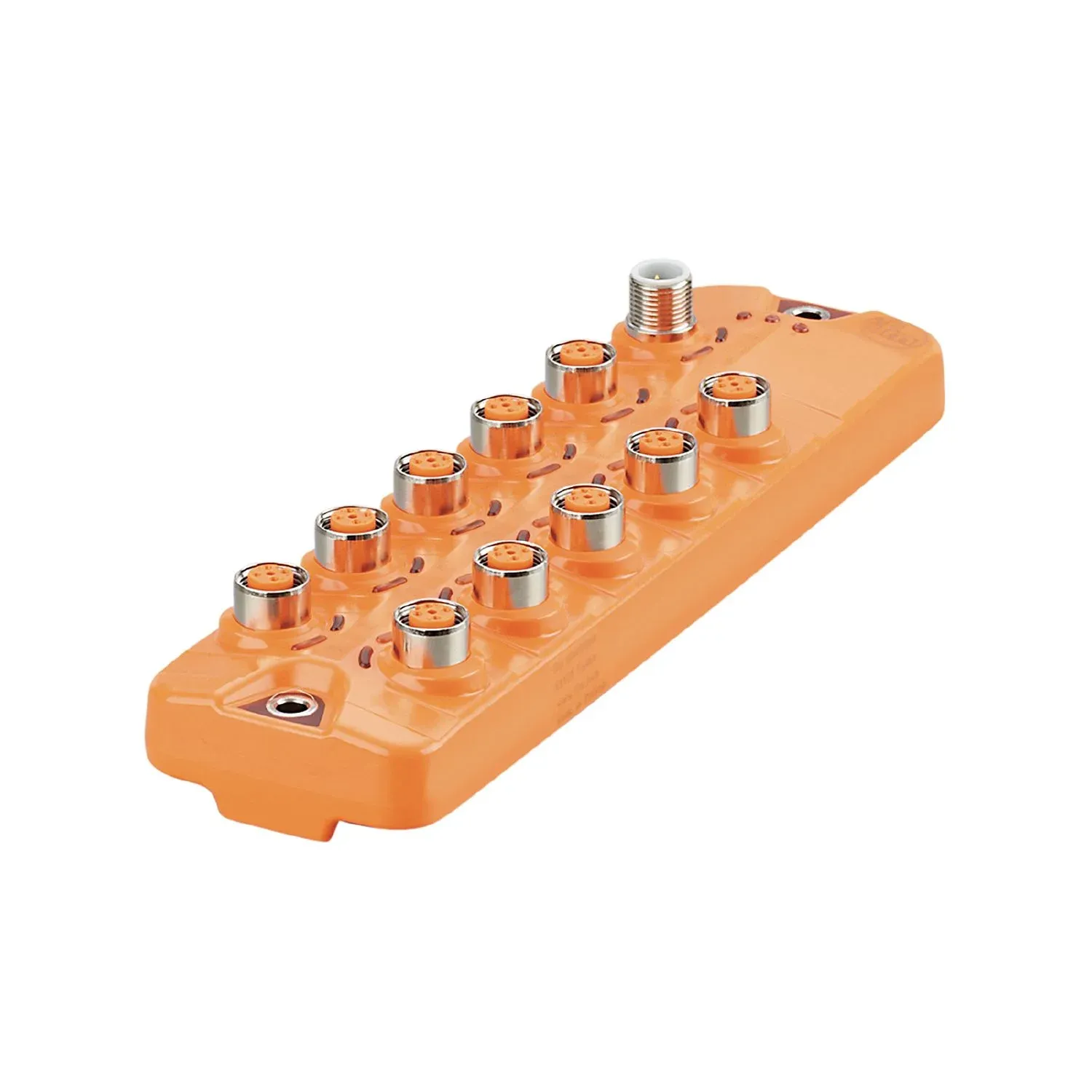

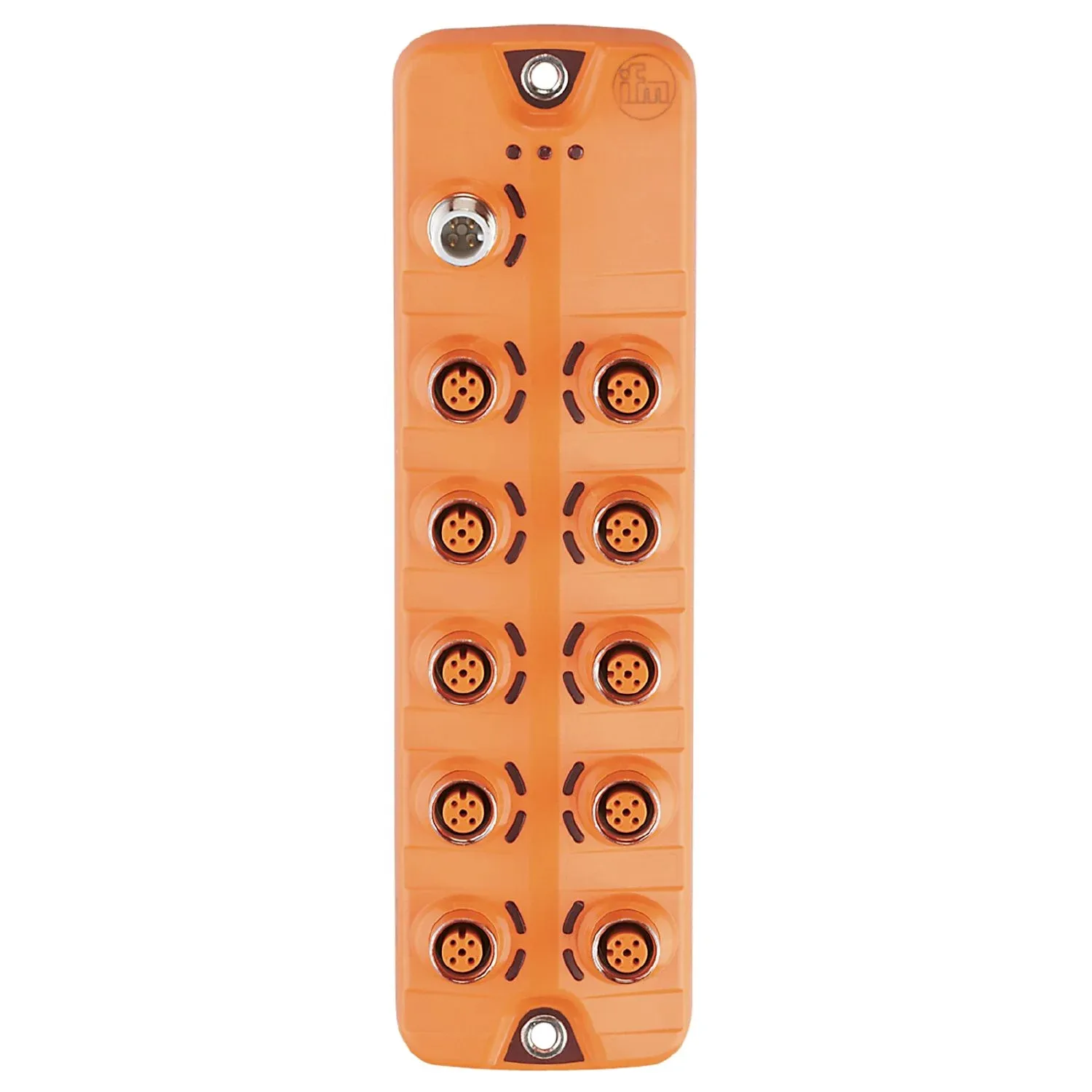

IFM AL2341
AL2341
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extension of IO-Link master modules by up to 20 digital inputs
Pre-processing of the input signals by digital input filters
Robust design for use in harsh industrial environments
For the effective connection of sensors with digital output to IO-Link
Specification
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 100...1100; (US) |
| Protection class | III |
| Current rating per port[A] [A] | 0.1 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 20 |
|---|
Inputs
| Number of digital inputs | 20; (10 x 2 PNP type 2 according to IEC 61131-2) |
|---|---|
| Sensor supply of the inputs | IO-Link |
| Power supply[V] [V] | 16...30 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 4.3 |
| Supported DeviceIDs | default 940 |
| default | 940 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
| MTTF[years] [years] | 140 |
Mechanical data
| Weight[g] [g] | 392.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 208 x 59.3 x 38.4 |
| Materials | housing: PA orange; socket: brass nickel-plated |
Displays / operating elements
| Display | operation 1 x LED, green fault 1 x LED, red function 1 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| fault | 1 x LED, red |
| function | 1 x LED, yellow |
Accessories
| Accessories (optional) | protective cap for M12 sockets |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Inputs
| Connector | 10 x M12; coding: A |
|---|
