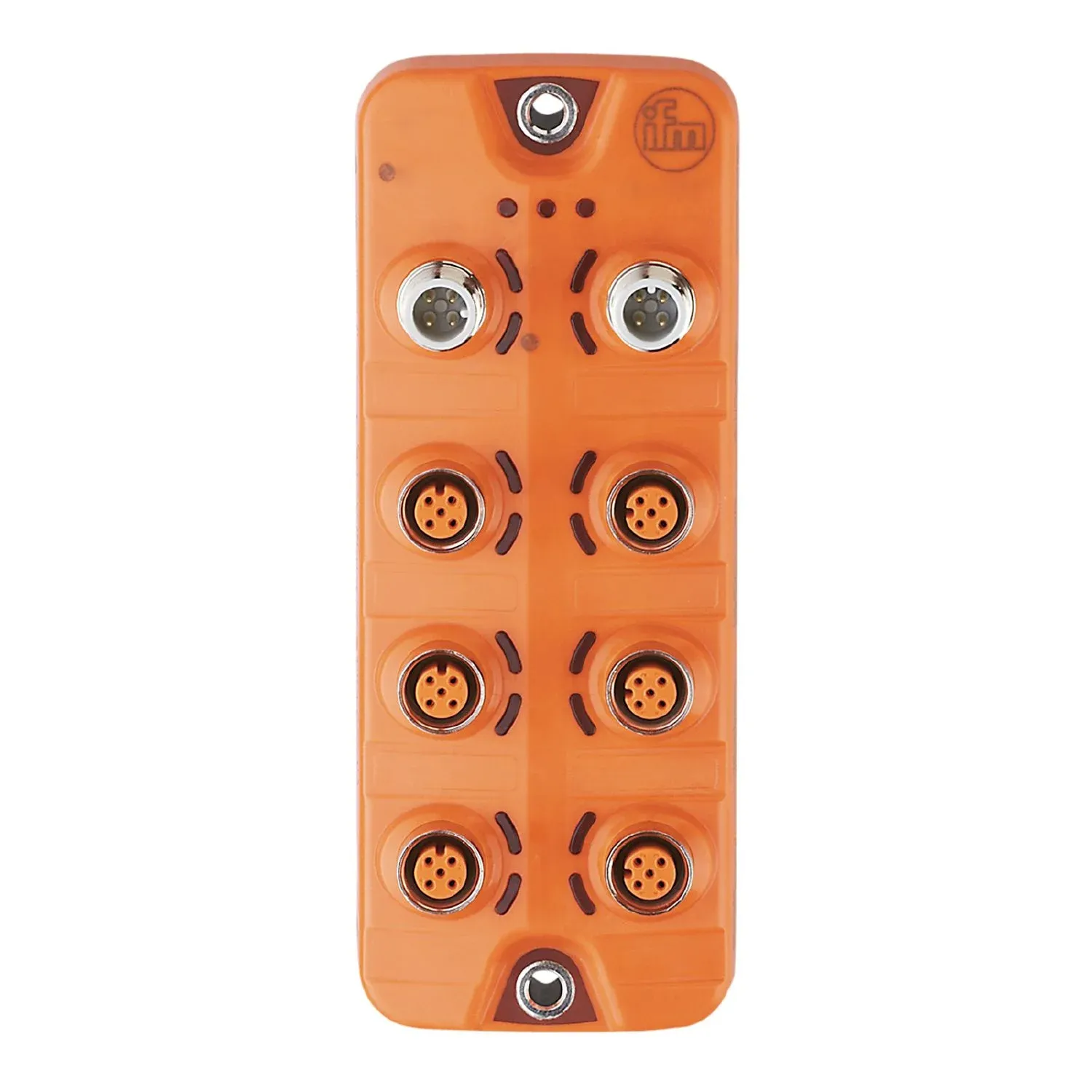

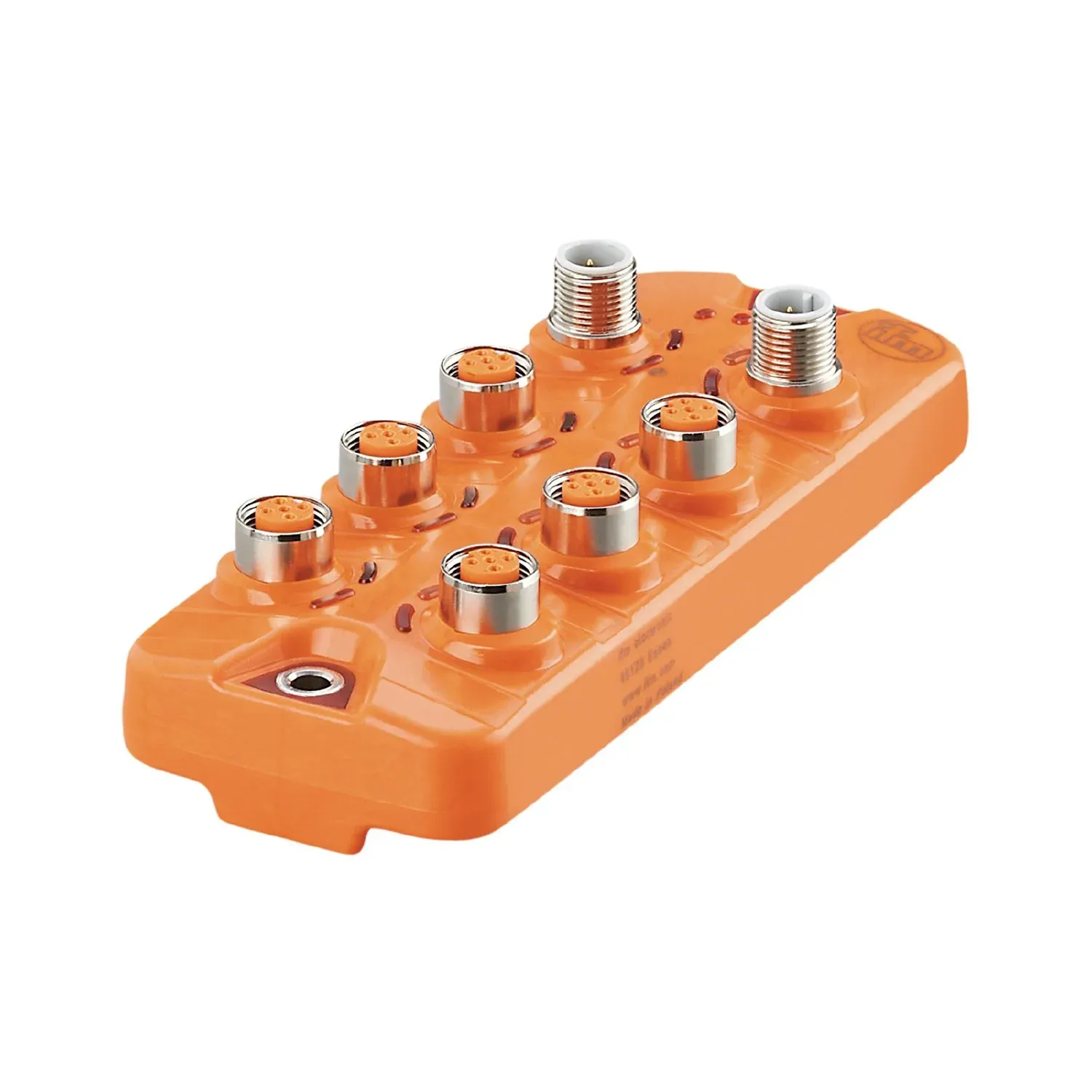

IFM AL2336
AL2336
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Six ports with two binary outputs each for twelve actuators
Two separate voltage supplies rated up to 1.8 A each
Use in safety circuits
For easy control of actuators on any IO-Link masters
Data and energy transmission also possible with unscreened connection cable
Specification
Application
| Application | I/O modules for field applications |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (US) |
|---|---|
| Current consumption[mA] [mA] | 50; (US) |
| Protection class | III |
| Additional voltage supply[V] [V] | 18...30 DC; (UA) |
| Max. current consumption from additional supply[mA] [mA] | 3600; (UA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 12 |
|---|
Outputs
| Number of digital outputs | 12; (6 x 2) |
|---|---|
| Output function | PNP |
| Max. current load per output[mA] [mA] | 1800 |
| Max. current load outputs total[A] [A] | 3.6; (Max. current load per output side: 1800 mA) |
| Electrically separated | yes |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Supported DeviceIDs | IO-Link Device 893 |
| IO-Link Device | 893 |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | no |
| Min. process cycle time[ms] [ms] | 5.6 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
Mechanical data
| Weight[g] [g] | 308.8 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 152 x 59.3 x 38 |
| Materials | housing: PA; socket: brass nickel-plated |
| Sealing material | FKM |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Accessories
| Accessories (optional) | Protective caps M12 |
|---|
Remarks
| Remarks | Using the device within a system with requirements for functional safety is possible by deactivating the actuator voltage UA without interaction. For further information on functional safety, please refer to the operating instructions supplement under “Downloads”. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Outputs
| Connector | 6 x M12; coding: A; Sealing: FKM |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
