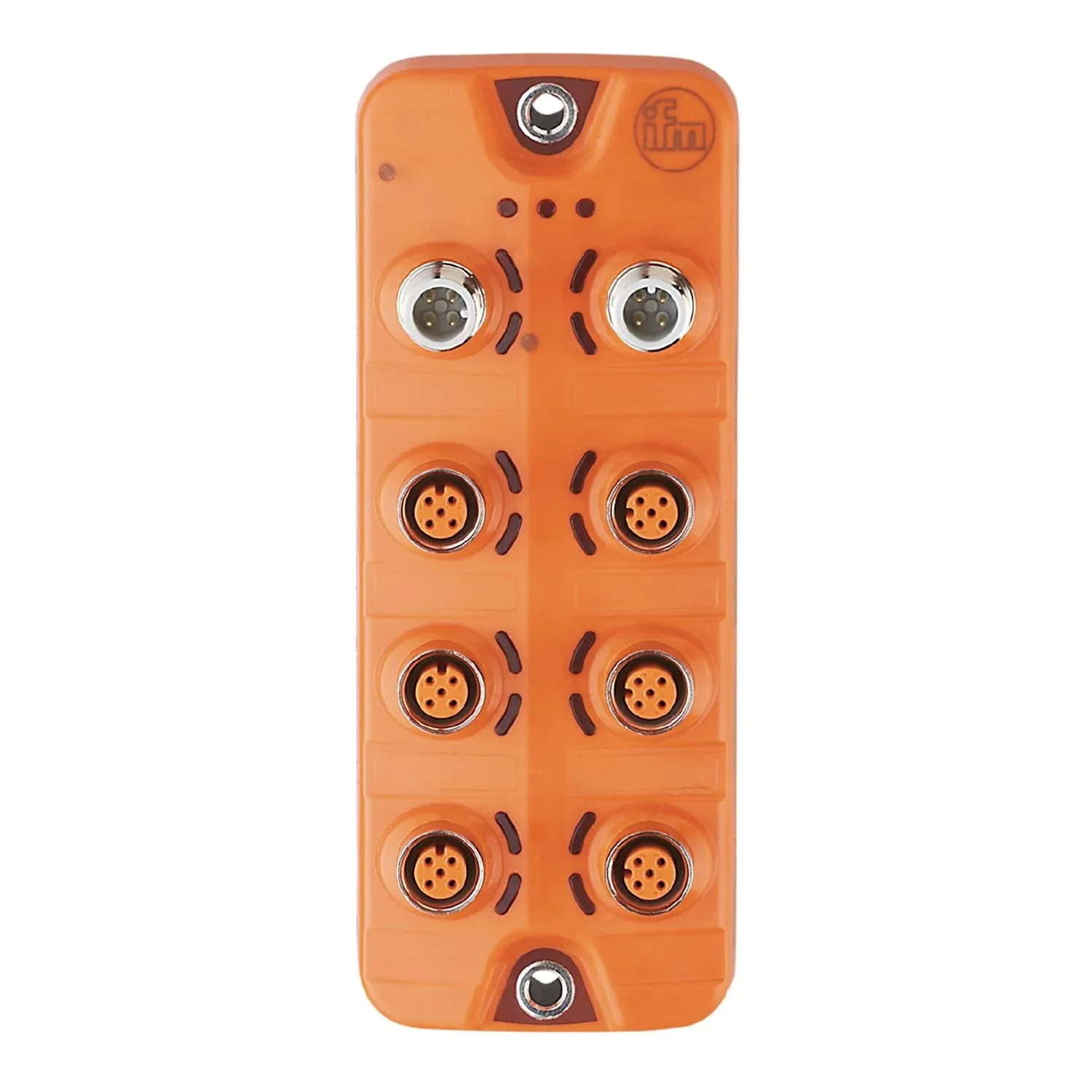

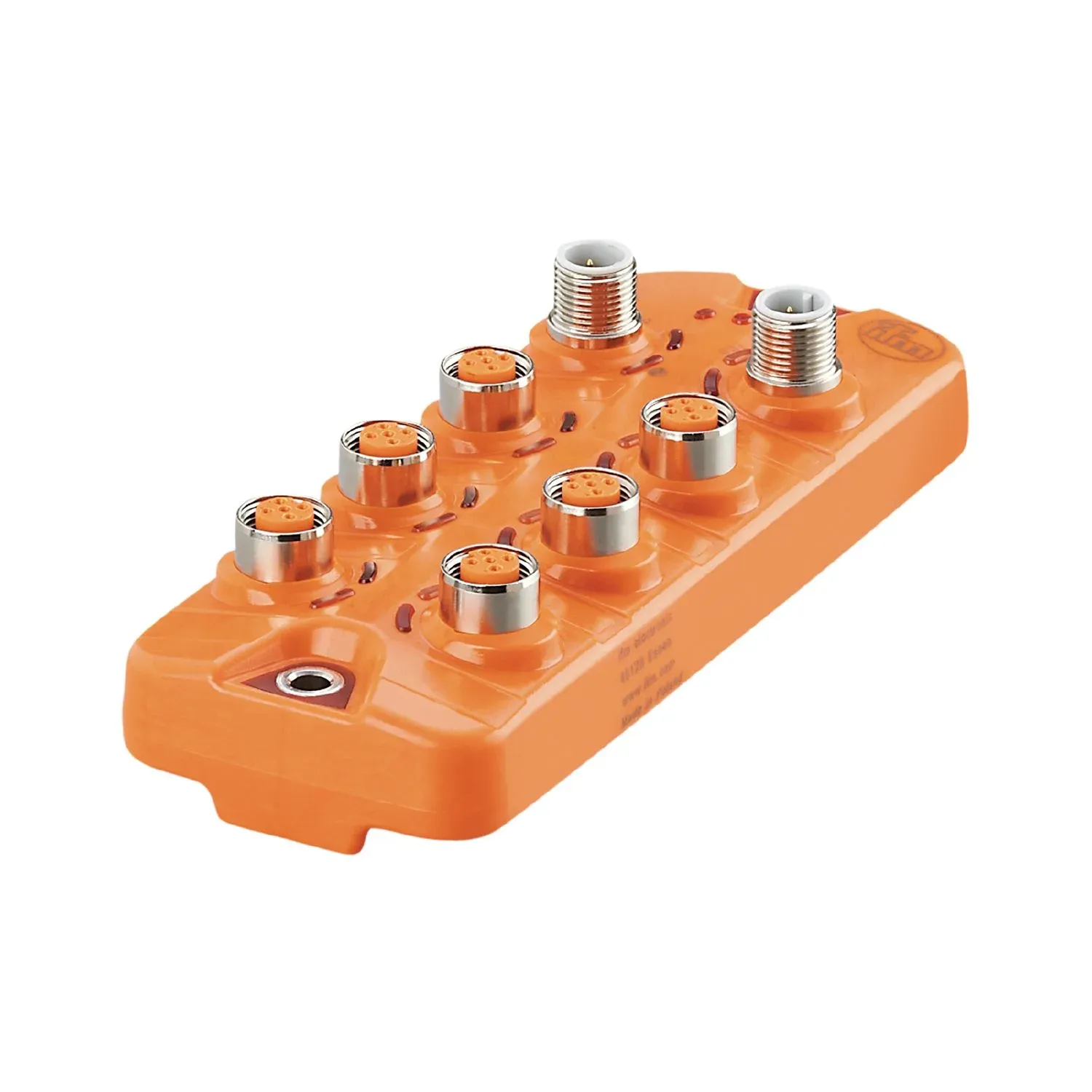

IFM AL2330
AL2330
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Six ports with two binary outputs each for twelve actuators
Two separate voltage supplies rated up to 1.8 A each
Robust design for use in harsh industrial environments
For easy control of actuators on any IO-Link masters
Data and energy transmission also possible with unscreened connection cable
Specification
Application
| Application | I/O modules for field applications |
|---|
Electrical data
| Operating voltage[V] [V] | 18...30 DC; (US) |
|---|---|
| Current consumption[mA] [mA] | 50; (US) |
| Protection class | III |
| Additional voltage supply[V] [V] | 18...30 DC; (UA) |
| Max. current consumption from additional supply[mA] [mA] | 3600; (UA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 12 |
|---|
Outputs
| Number of digital outputs | 12; (6 x 2) |
|---|---|
| Output function | PNP |
| Max. current load per output[mA] [mA] | 1800 |
| Max. current load outputs total[A] [A] | 3.6; (Max. current load per output side: 1800 mA) |
| Electrically separated | yes |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Supported DeviceIDs | IO-Link Device 893 |
| IO-Link Device | 893 |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | no |
| Min. process cycle time[ms] [ms] | 5.6 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
| MTTF[years] [years] | 63 |
Mechanical data
| Weight[g] [g] | 303 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 152 x 59.3 x 38 |
| Materials | housing: PA; socket: brass nickel-plated |
| Sealing material | FKM |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Accessories
| Accessories (optional) | Protective caps M12 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Outputs
| Connector | 6 x M12; coding: A; Sealing: FKM |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
