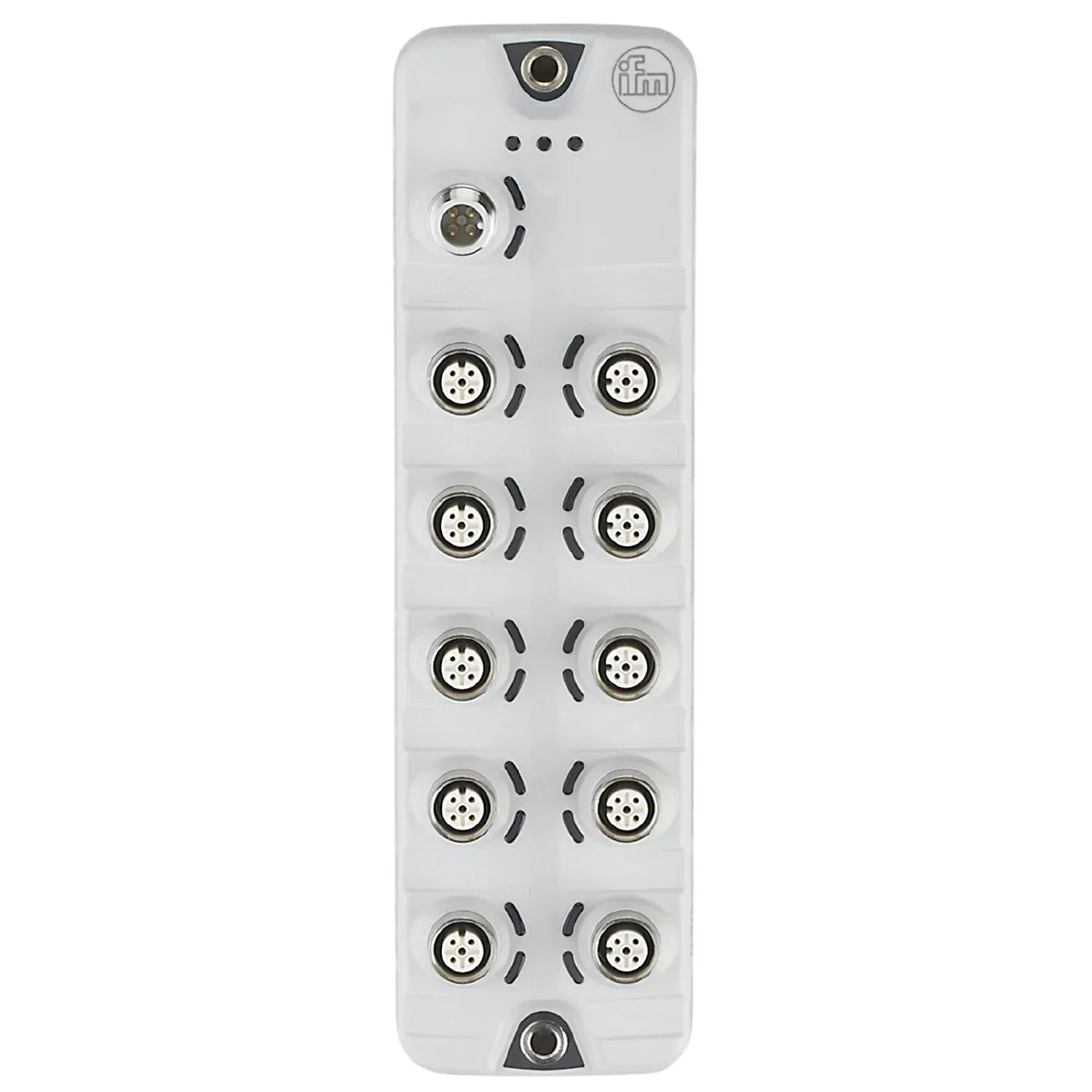

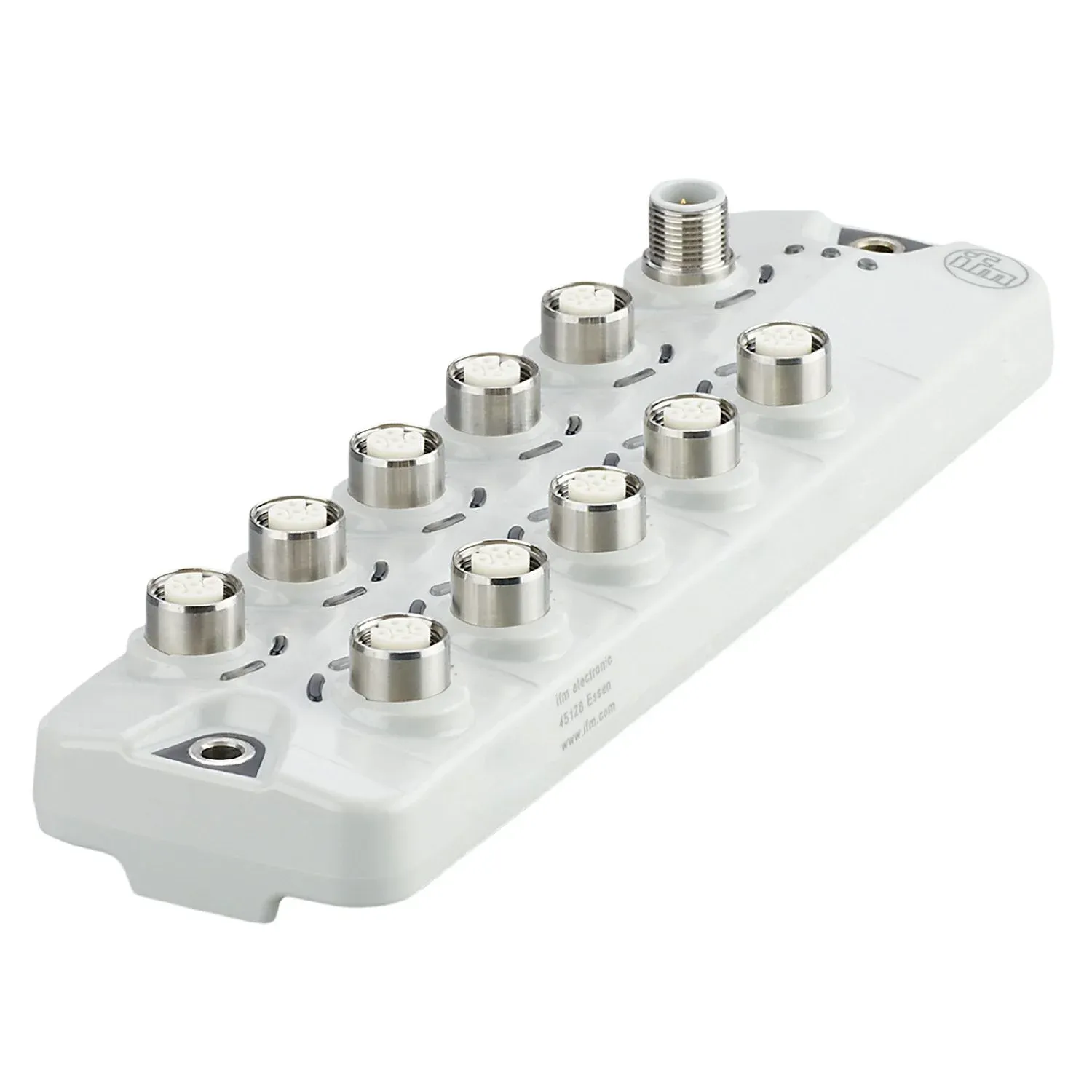

IFM AL2241
AL2241
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Extension of IO-Link master modules by up to 20 digital inputs
Pre-processing of the input signals by digital input filters
High protection rating for the requirements of the food and beverage industry
For the effective connection of sensors with digital output to IO-Link
Specification
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 100...1100; (US) |
| Protection class | III |
| Current rating per port[A] [A] | 0.1 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 20 |
|---|
Inputs
| Number of digital inputs | 20; (10 x 2 PNP type 2 according to IEC 61131-2) |
|---|---|
| Sensor supply of the inputs | IO-Link |
| Power supply[V] [V] | 16...30 |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Smart Sensor - SSP 0 Generic Profiled Sensor Function Device identification Function Process data variable Function Device diagnosis |
| Smart Sensor - SSP 0 | Generic Profiled Sensor |
| Function | Device diagnosis |
| SIO mode | no |
| Required master port type | A |
| Min. process cycle time[ms] [ms] | 4.3 |
| Supported DeviceIDs | default 940 |
| default | 940 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
| MTTF[years] [years] | 140 |
Mechanical data
| Weight[g] [g] | 406 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 208 x 59.3 x 38.4 |
| Materials | housing: PA grey; socket: stainless steel (316L/1.4404) |
| Sealing material | EPDM |
Displays / operating elements
| Display | operation 1 x LED, green fault 1 x LED, red function 1 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| fault | 1 x LED, red |
| function | 1 x LED, yellow |
Accessories
| Accessories (optional) | protective cap for M12 sockets |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Inputs
| Connector | 10 x M12; coding: A; Sealing: EPDM |
|---|
