IFM AL2203
AL2203
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

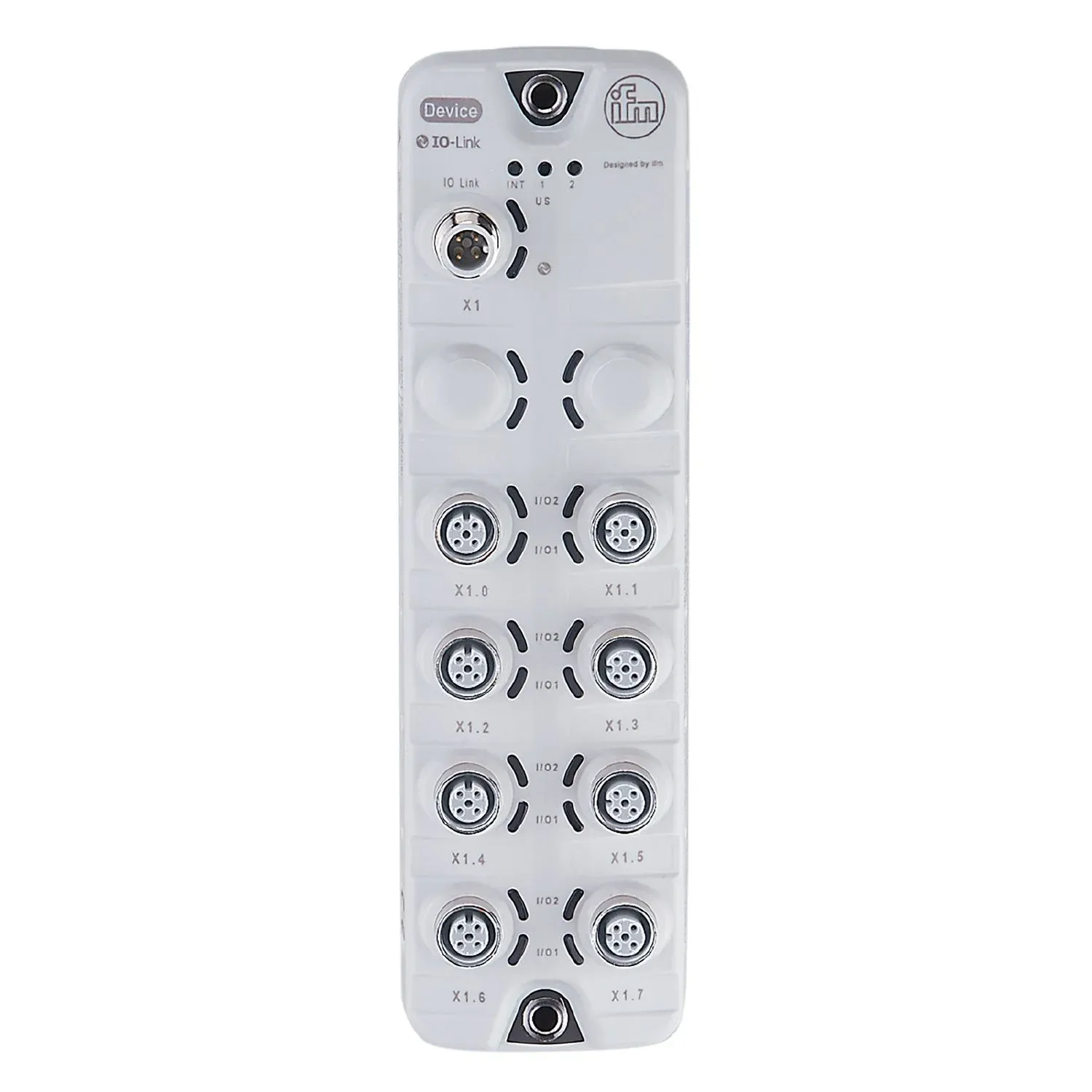

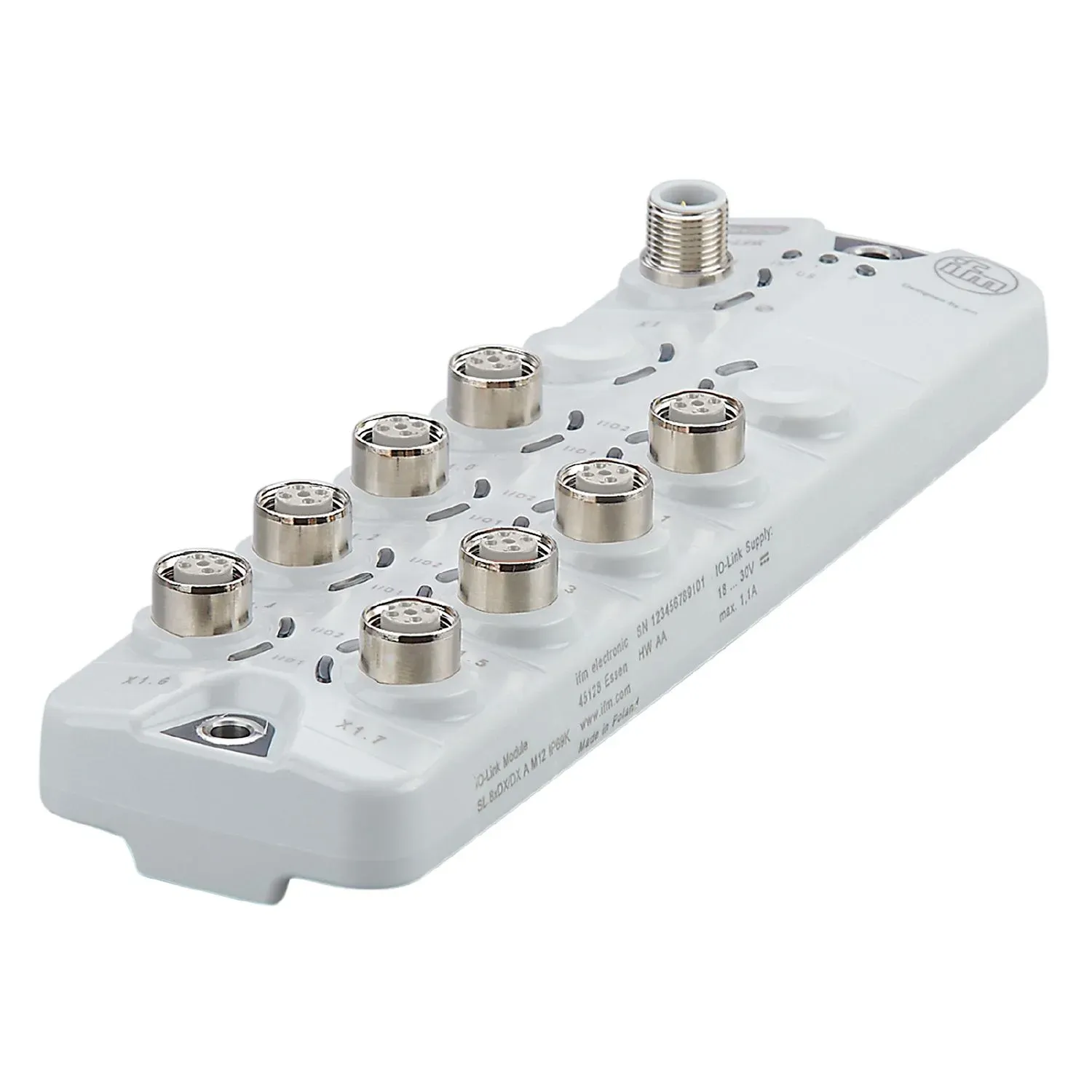

Different digital and analogue input / output functions for IO-Link communication in just one module
8 independently configurable I/O ports
Electrical separation between auxiliary voltage and IO-Link
Extension of IO-Link masters with additional inputs and outputs
Specification
Electrical data
| Operating voltage[V] [V] | 18...30 DC |
|---|---|
| Current consumption[mA] [mA] | 100; (US) |
| Protection class | III |
| Additional voltage supply[V] [V] | 18...30 DC; (UA) |
| Max. current consumption from additional supply[mA] [mA] | 3600; (UA) |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of analogue inputs: 8; Number of digital outputs: 16 |
Inputs
| Number of digital inputs | 16; (configurable) |
|---|---|
| Input circuit of digital inputs | PNP; (type 3 (IEC 61131-2)) |
| Sensor supply of the inputs | UA |
| Power supply[V] [V] | 18...30 |
| Input current High[mA] [mA] | 2...15 |
| Input current Low[mA] [mA] | 0...1.5 |
| Switching level high[V] [V] | 11...28 |
| Switching level low[V] [V] | 0...5 |
| Number of analogue inputs | 8; (configurable current/voltage input) |
| Analogue input (current)[mA] [mA] | 4...20 |
| Analogue input (voltage)[V] [V] | 0...10 |
| Resolution of analogue input | 16 Bit |
Outputs
| Number of digital outputs | 16; (configurable) |
|---|---|
| Max. current load per output[mA] [mA] | 1800 |
| Max. current load outputs total[A] [A] | 3.6; (max. current load per segment: 1800 mA) |
| Short-circuit protection | yes |
| Actuator supply outputs | UA |
Interfaces
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| SDCI standard | IEC 61131-9 |
| Profiles | Common - I&D Identification and Diagnosis |
| Common - I&D | Identification and Diagnosis |
| SIO mode | no |
| Required master port type | B |
| Min. process cycle time[ms] [ms] | 4 |
| Supported DeviceIDs | Acyclic parametrisation 1406 Factory setting: parametrisation via Pdout 1405 |
| Acyclic parametrisation | 1406 |
| Factory setting: parametrisation via Pdout | 1405 |
| Note | The parameter setting can be changed from cyclical to acyclical. For further information please see the IODD PDF file under "Downloads" |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90 |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 IEC 61131-9 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
Mechanical data
| Weight[g] [g] | 398.7 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 208 x 59.3 x 38.4 |
| Materials | housing: PA grey; socket: stainless steel (316L/1.4404) |
| Sealing material | EPDM |
| Tightening torque[Nm] [Nm] | < 0.8 |
Displays / operating elements
| Display | operation 1 x LED, green fault 1 x LED, red function 1 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| fault | 1 x LED, red |
| function | 1 x LED, yellow |
Accessories
| Accessories (optional) | protective cap for M12 sockets |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - IO-Link
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - inputs / outputs
| Connector | 8 x M12; coding: A; Sealing: EPDM |
|---|
Reviews
Clear filtersThere are no reviews yet.
