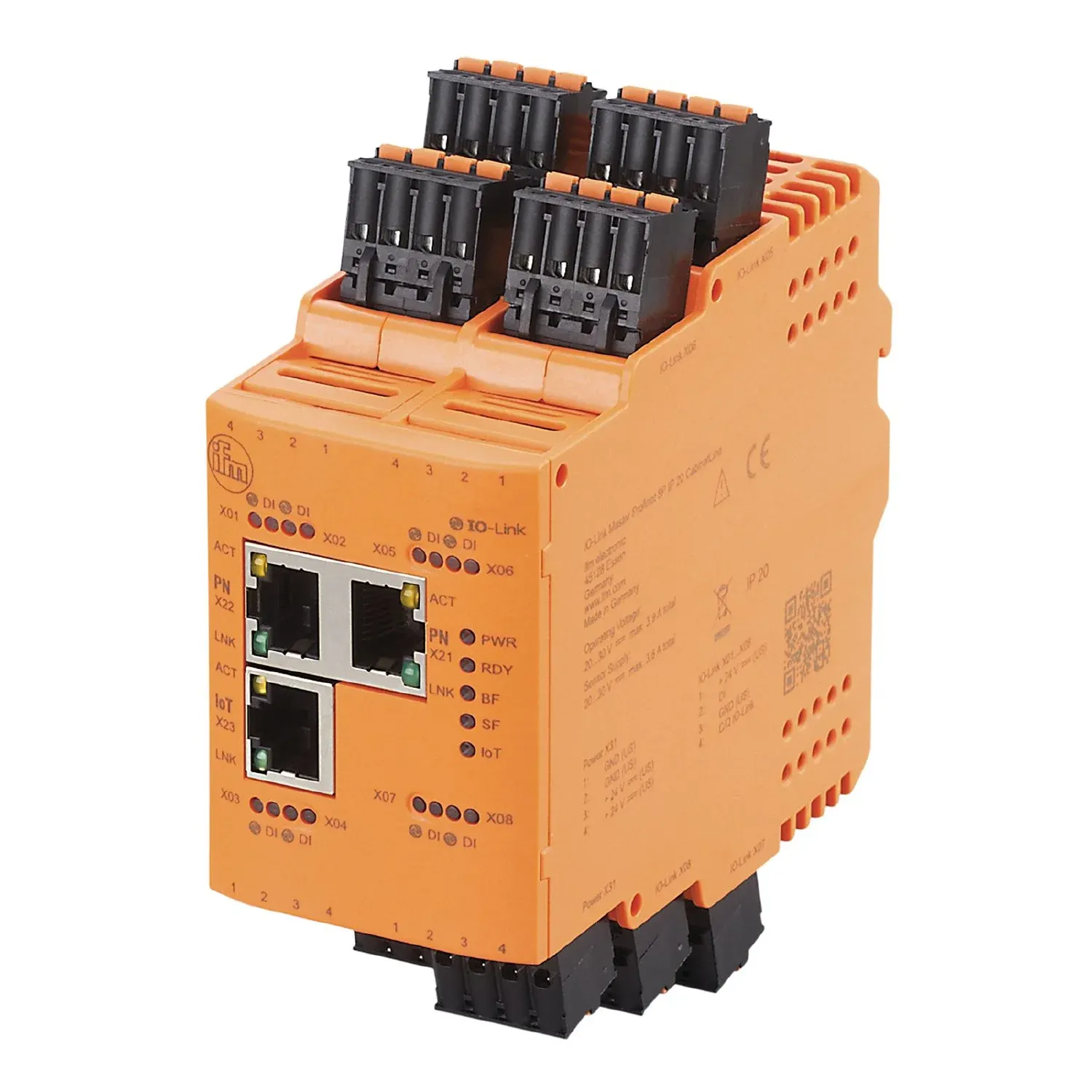

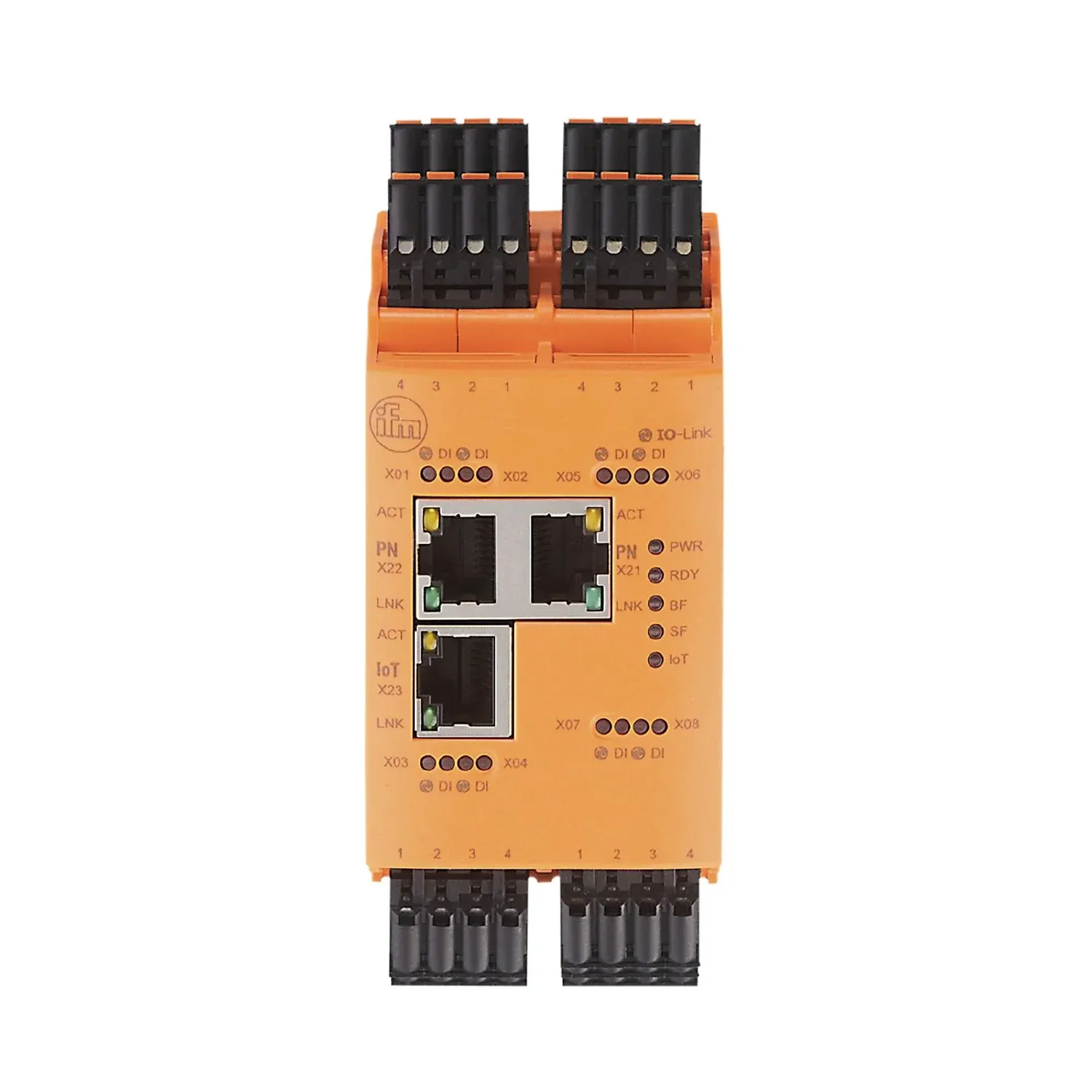

IFM AL1970
AL1970
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Separation between automation network and IT network
Reliable transmission of machine data, process parameters and diagnostic data to the controller
With POWERLINK and separate MQTT JSON interface
Small design requiring only very little space for control panel mounting
For connection of up to eight IO-Link devices
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | I/O modules for use in the control cabinet |
Electrical data
| Operating voltage[V] [V] | 20...30 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | 300...3900; (US) |
| Protection class | III |
| Max. current load total[A] [A] | 3.6 |
Inputs / outputs
| Total number of inputs and outputs | 16; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 8; Number of digital outputs: 8 |
Inputs
| Number of digital inputs | 8; (IO-Link Port Class A) |
|---|---|
| Switching level high[V] [V] | 11...30 |
| Switching level low[V] [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 8; (IO-Link Port Class A) |
|---|---|
| Max. current load per output[mA] [mA] | 300 |
| Short-circuit proof | yes |
Interfaces
| Communication interface | Ethernet; IO-Link |
|---|---|
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Protocol | MQTT JSON |
| Factory settings | IP address: 169.254.x.x subnet mask: 255.255.0.0 gateway IP address: 0.0.0.0 MAC address: see type label |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 8 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...65 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 20 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| MTTF[years] [years] | 78 |
Mechanical data
| Weight[g] [g] | 340.9 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 125.7 x 50 x 105.3 |
| Materials | housing: PA orange |
Accessories
| Items supplied | cage clamps: 9 |
|---|
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
