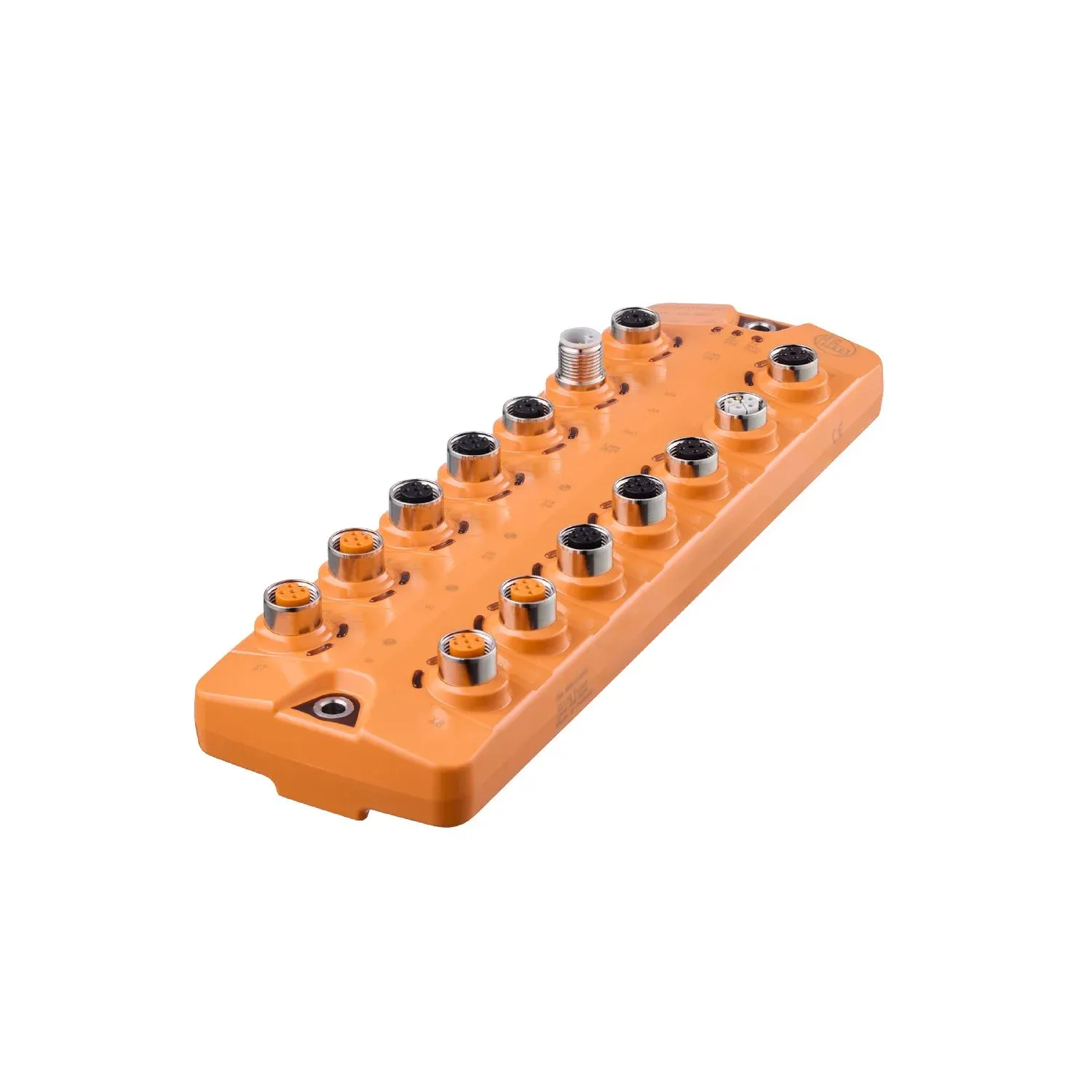

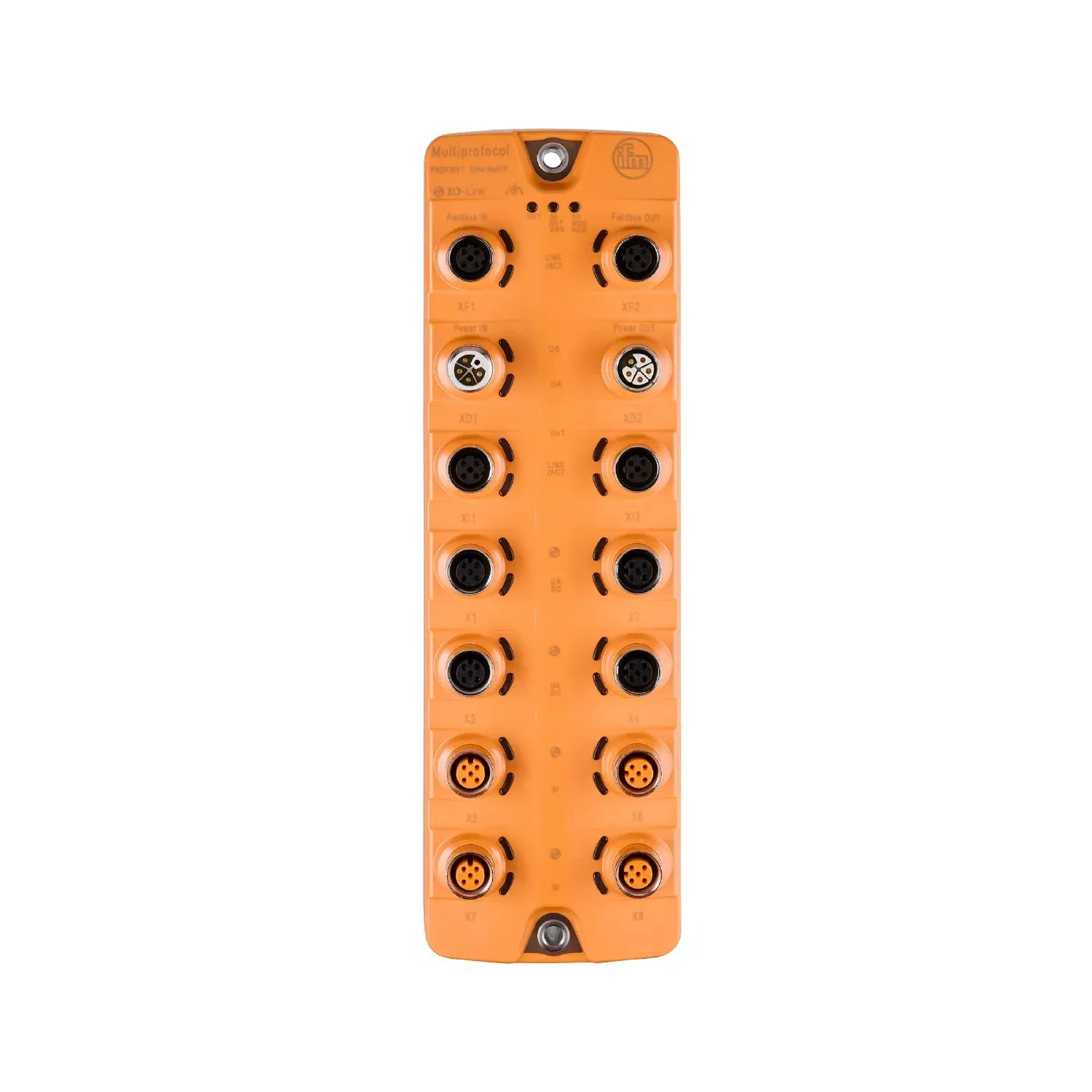

IFM AL1590
AL1590
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Integrated IODD interpreter converts sensor data into readable information
Direct data transfer to on-premises IT levels via OPC UA
Fieldbus multiprotocol with PROFINET and EtherNet/IP provides flexibility in the choice of controller
Integrated Node-RED environment
For connection of up to eight IO-Link devices
Specification
Application
| Application | I/O modules for field applications |
|---|---|
| Daisy-chain function | power supply; fieldbus interface; IoT interface |
Electrical data
| Operating voltage[V] [V] | 20...30 DC; (US ; to PELV) |
|---|---|
| Current consumption[mA] [mA] | 300...3900; (US) |
| Protection class | III |
| Additional voltage supply[V] [V] | 20...30 DC; (UA) |
| Max. current load total[A] [A] | 3.6 |
| Current rating per port[A] [A] | 2 |
Inputs / outputs
| Total number of inputs and outputs | 16; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 12; Number of digital outputs: 12 |
Inputs
| Number of digital inputs | 12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1) |
|---|---|
| Switching level high[V] [V] | 11...30 |
| Switching level low[V] [V] | 0...5 |
Outputs
| Number of digital outputs | 12; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 2) |
|---|---|
| Short-circuit proof | yes |
| Max. current load per output[mA] [mA] | 350 |
Software / programming
| Parameter setting options | Node-RED |
|---|---|
| Operating system | Embedded Linux |
Interfaces
| Communication interface | Ethernet; IO-Link |
|---|---|
| Factory settings | IP address: 169.254.x.x subnet mask: 255.255.0.0 gateway IP address: 0.0.0.0 MAC address: see type label |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Protocol | MQTT JSON; OPC UA |
| Note on interfaces | Secure protocol: HTTPS, MQTTS, TLS |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 4 |
| Number of ports class B | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10 |
| MTTF[years] [years] | 38 |
Mechanical data
| Weight[g] [g] | 650.3 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 238 x 74.3 x 24 |
| Materials | housing: PA orange; socket: brass nickel-plated |
| Sealing material | FKM |
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector | 2 x M12; coding: D; Sealing: FKM |
|---|
Electrical connection - IO-Link
| Connector | 8 x M12; coding: A; Sealing: FKM |
|---|
Electrical connection - power supply IN
| Connector | 1 x M12; coding: L |
|---|
Electrical connection - power supply OUT
| Connector | 1 x M12; coding: L; Sealing: FKM |
|---|
