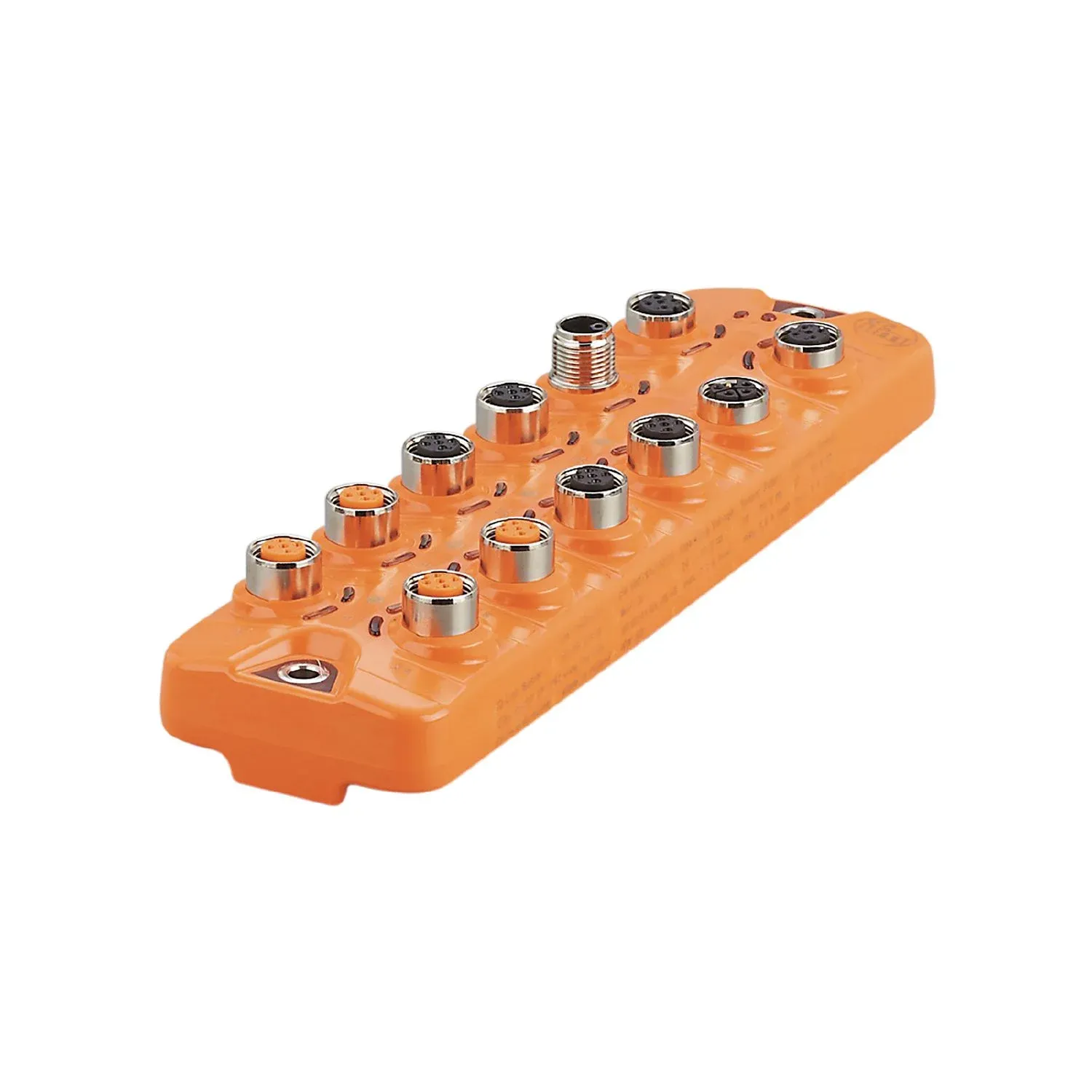

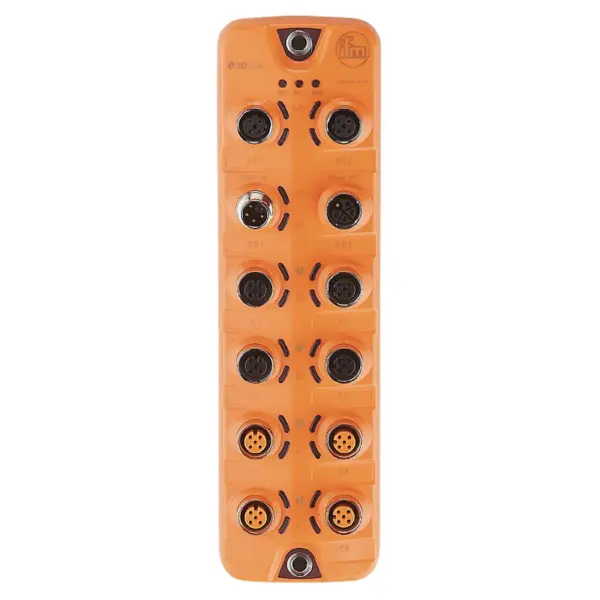

Daisy-chain power supply with standardised L-coded M12 connection technology
Configurable current limitation for each port to ensure safe operation
Voltage and current measurement per port for energy monitoring
Connection of actuators up to 2 A
Robust housing for use in harsh industrial environments
For connection of up to eight IO-Link devices
Specification
Application
| Application | I/O modules for field applications |
|---|---|
| Daisy-chain function | power supply; fieldbus interface |
Electrical data
| Operating voltage[V] [V] | 20...30 DC; (US ; to PELV) |
|---|---|
| Current consumption[mA] [mA] | 300...3900; (US) |
| Protection class | III |
| Additional voltage supply[V] [V] | 20...30 DC; (UA) |
| Max. current load total[A] [A] | 3.6 |
| Current rating per port[A] [A] | 2; (adjustable: 0...2; Factory setting: 0,45) |
Inputs / outputs
| Total number of inputs and outputs | 16; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 12; Number of digital outputs: 12 |
Inputs
| Number of digital inputs | 12; (IO-Link Port Class A: 4 x 2; IO-Link Port Class B: 4 x 1) |
|---|---|
| Switching level high[V] [V] | 11...30 |
| Switching level low[V] [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 12; (IO-Link Port Class A: 4 x 1; IO-Link Port Class B: 4 x 2) |
|---|---|
| Short-circuit proof | yes |
| Max. current load per output[mA] [mA] | 2000 |
Interfaces
| Communication interface | Ethernet; IO-Link |
|---|---|
| Transmission standard | 100Base-TX |
| Transmission rate | 100 MBit/s |
| Protocol | EtherCAT |
| Factory settings | MAC address: see type label |
| Note on interfaces | AoE (ADS over EtherCAT) CoE (CANopen over EtherCAT) EoE (Ethernet over EtherCAT) FoE (File Access over EtherCAT) |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 4 |
| Number of ports class B | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10 |
| MTTF[years] [years] | 43 |
Mechanical data
| Weight[g] [g] | 420.2 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 208 x 59.3 x 38.4 |
| Materials | housing: PA orange; socket: brass nickel-plated |
| Sealing material | FKM |
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
