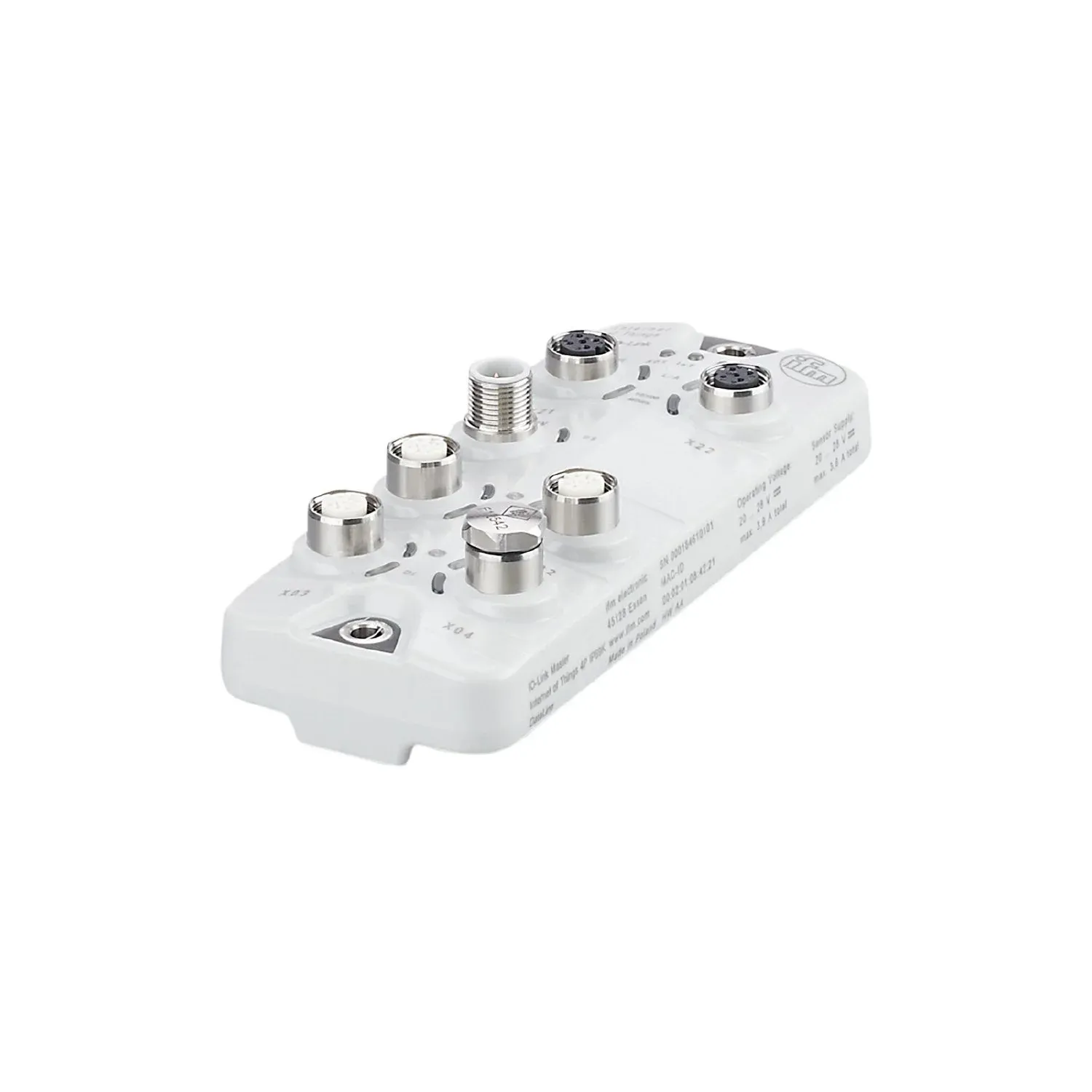

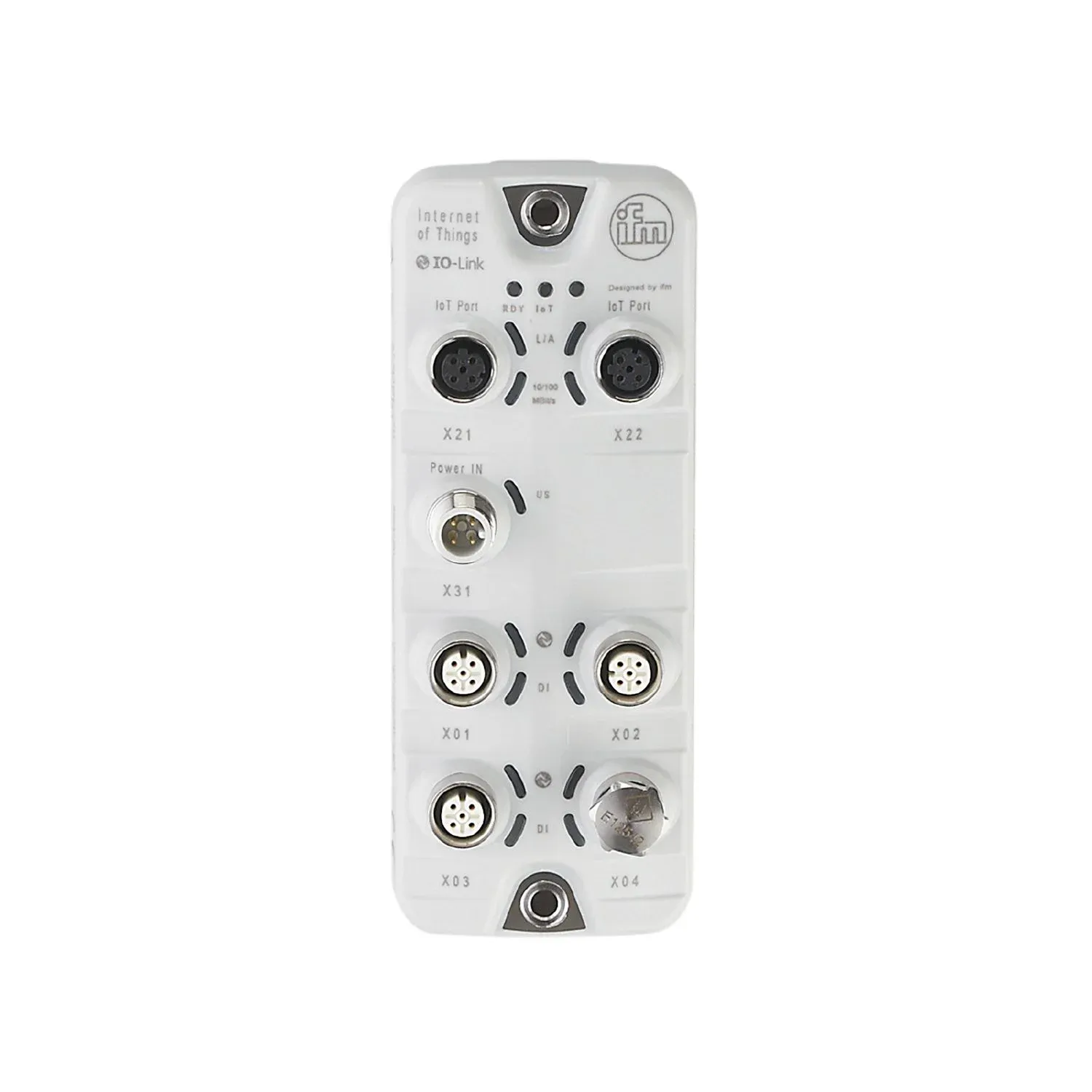

IFM AL1351
AL1351
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
High protection rating for the requirements of the food and beverage industry
For connection of up to four IO-Link devices
Reliable transmission of machine data, process parameters, and diagnostic data to the IT environment
Specification
Application
| Application | hygienic systems; I/O modules for field applications |
|---|---|
| Daisy-chain function | fieldbus interface |
Electrical data
| Operating voltage[V] [V] | 20...28 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | 300...3900; (US) |
| Protection class | III |
| Max. current load total[A] [A] | 3.6 |
Inputs / outputs
| Total number of inputs and outputs | 8; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 8; Number of digital outputs: 4 |
Inputs
| Number of digital inputs | 8; (IO-Link Port Class A: 4 x 2) |
|---|---|
| Switching level high[V] [V] | 11...30 |
| Switching level low[V] [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 4; (IO-Link Port Class A: 4 x 1) |
|---|---|
| Max. current load per output[mA] [mA] | 300 |
| Short-circuit proof | yes |
Interfaces
| Communication interface | Ethernet; IO-Link |
|---|---|
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | 10 MBit/s; 100 MBit/s |
| Protocol | MQTT JSON |
| Factory settings | IP address: 169.254.x.x subnet mask: 255.255.0.0 gateway IP address: 0.0.0.0 MAC address: see type label |
| Note on interfaces | Secure protocol: HTTPS |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 4 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10 |
| MTTF[years] [years] | 126 |
Mechanical data
| Weight[g] [g] | 304.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 152 x 59.3 x 38.4 |
| Materials | housing: PA grey; socket: stainless steel (316L/1.4404) |
| Sealing material | EPDM |
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector | 2 x M12; coding: D; Sealing: EPDM |
|---|
Electrical connection - IO-Link
| Connector | 4 x M12; coding: A; Sealing: EPDM |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
