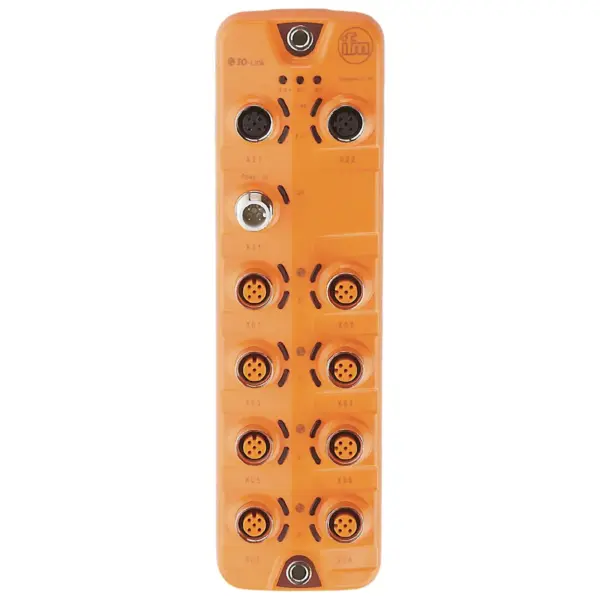

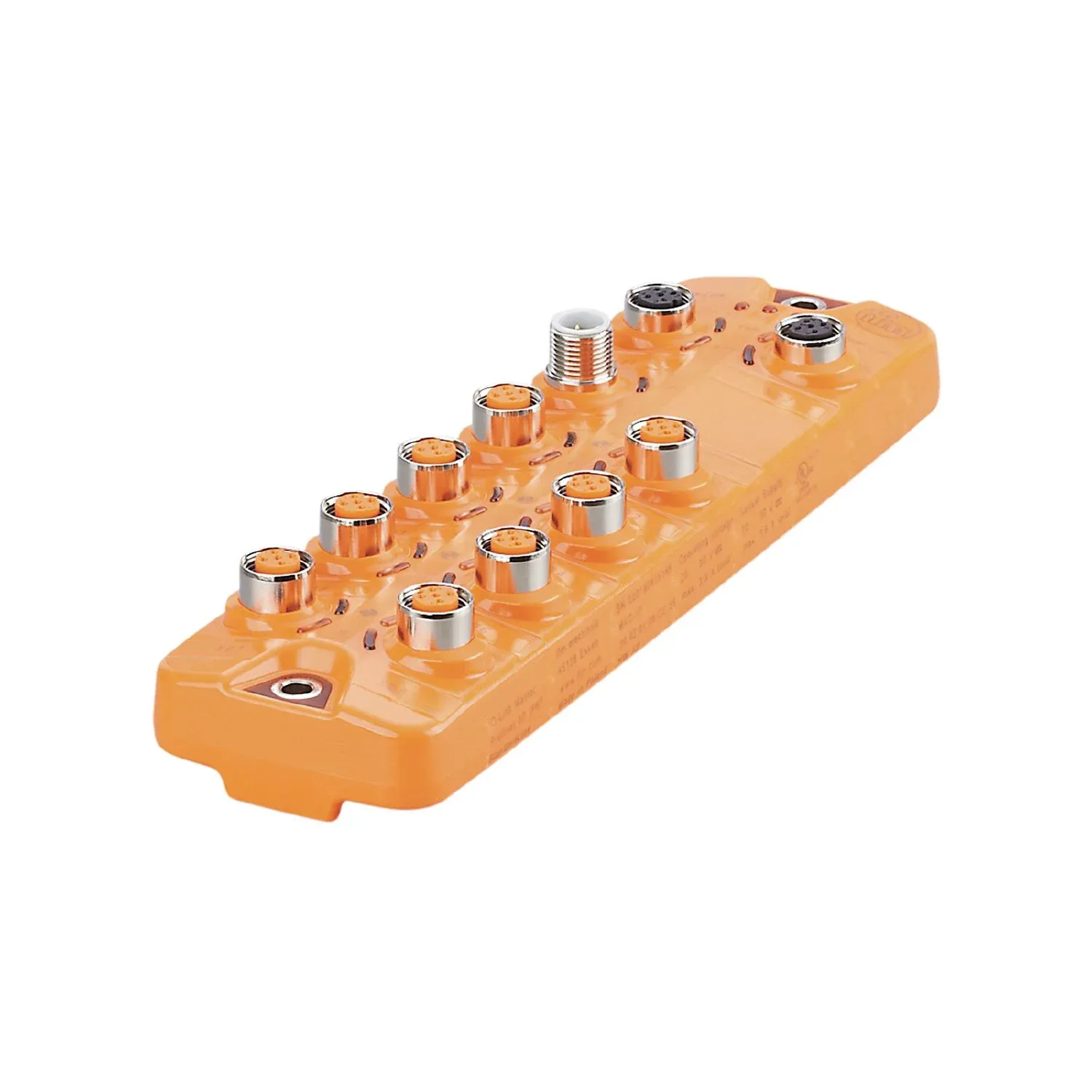

IFM AL1102
AL1102
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable transmission of machine data, process parameters and diagnostic data to the controller
With integrated PROFINET interface
Robust housing for use in harsh industrial environments
For connection of up to eight IO-Link devices
Specification
Application
| Application | I/O modules for field applications |
|---|---|
| Daisy-chain function | fieldbus interface |
Electrical data
| Operating voltage[V] [V] | 20...30 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption[mA] [mA] | 300...3900; (US) |
| Protection class | III |
| Max. current load total[A] [A] | 3.6 |
Inputs / outputs
| Total number of inputs and outputs | 16; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of digital outputs: 8 |
Inputs
| Number of digital inputs | 16; (IO-Link Port Class A: 8 x 2) |
|---|---|
| Switching level high[V] [V] | 11...30 |
| Switching level low[V] [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 8; (IO-Link Port Class A: 8 x 1) |
|---|---|
| Max. current load per output[mA] [mA] | 300 |
| Short-circuit proof | yes |
Interfaces
| Communication interface | Ethernet; IO-Link |
|---|---|
| Transmission standard | 100Base-TX |
| Transmission rate | 100 MBit/s |
| Protocol | PROFINET |
| Factory settings | IP address: 0.0.0.0 subnet mask: 0.0.0.0 gateway IP address: 0.0.0.0 MAC address: see type label |
| Note on interfaces | CC-C (Conformance Class C) (IRT-Switch) Netload Class III SNMP (Simple Network Management Protocol) MRP (Media Redundancy Protocol) Supported network topologies: line ring |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 8 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65; IP 66; IP 67 |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 AA, BA, BD, HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | AA, BA, BD, HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10 |
| MTTF[years] [years] | 78 |
Mechanical data
| Weight[g] [g] | 396 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 208 x 59.3 x 38.4 |
| Materials | housing: PA orange; socket: brass nickel-plated |
| Sealing material | FKM |
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector | 2 x M12; coding: D; Sealing: FKM |
|---|
Electrical connection - IO-Link
| Connector | 8 x M12; coding: A; Sealing: FKM |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
