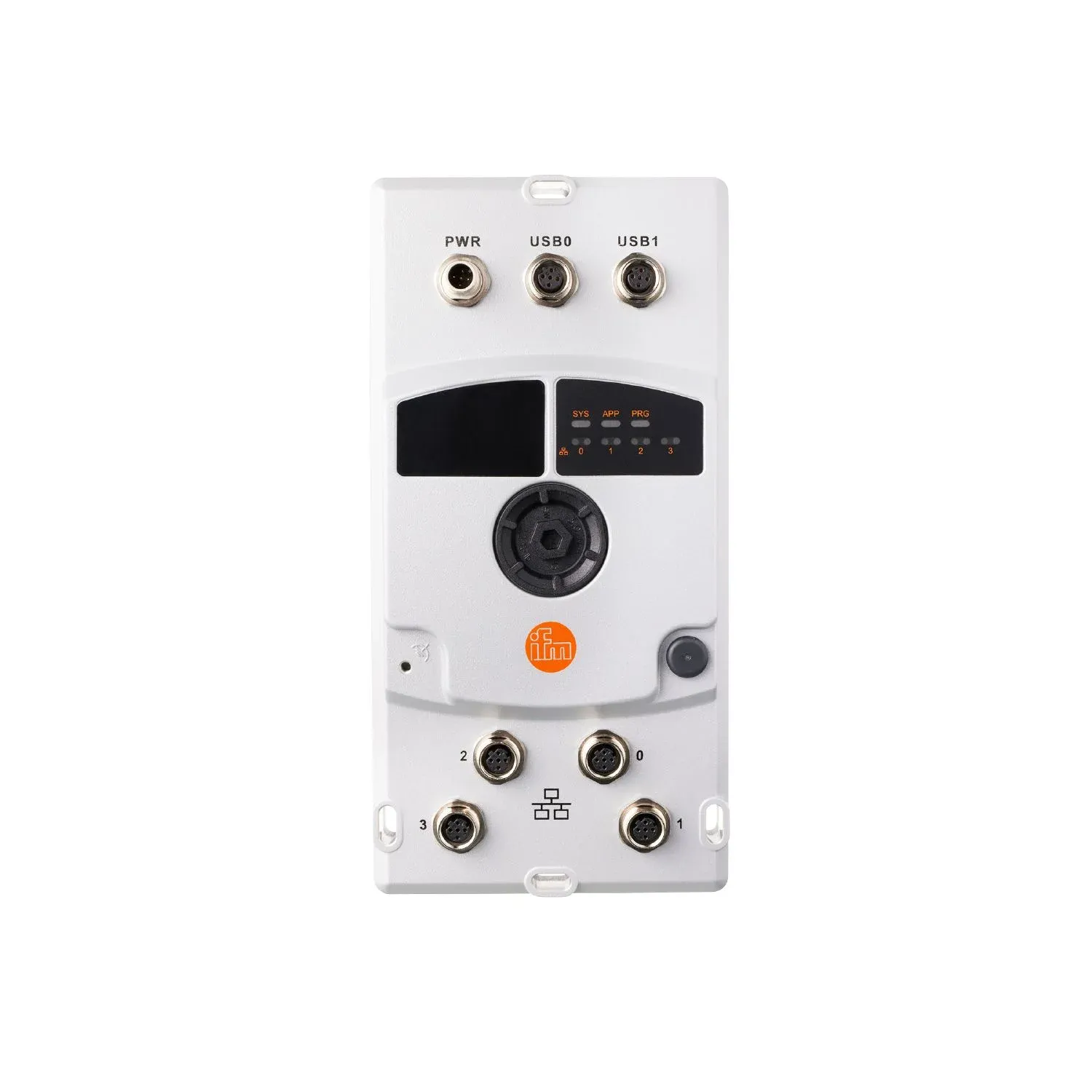

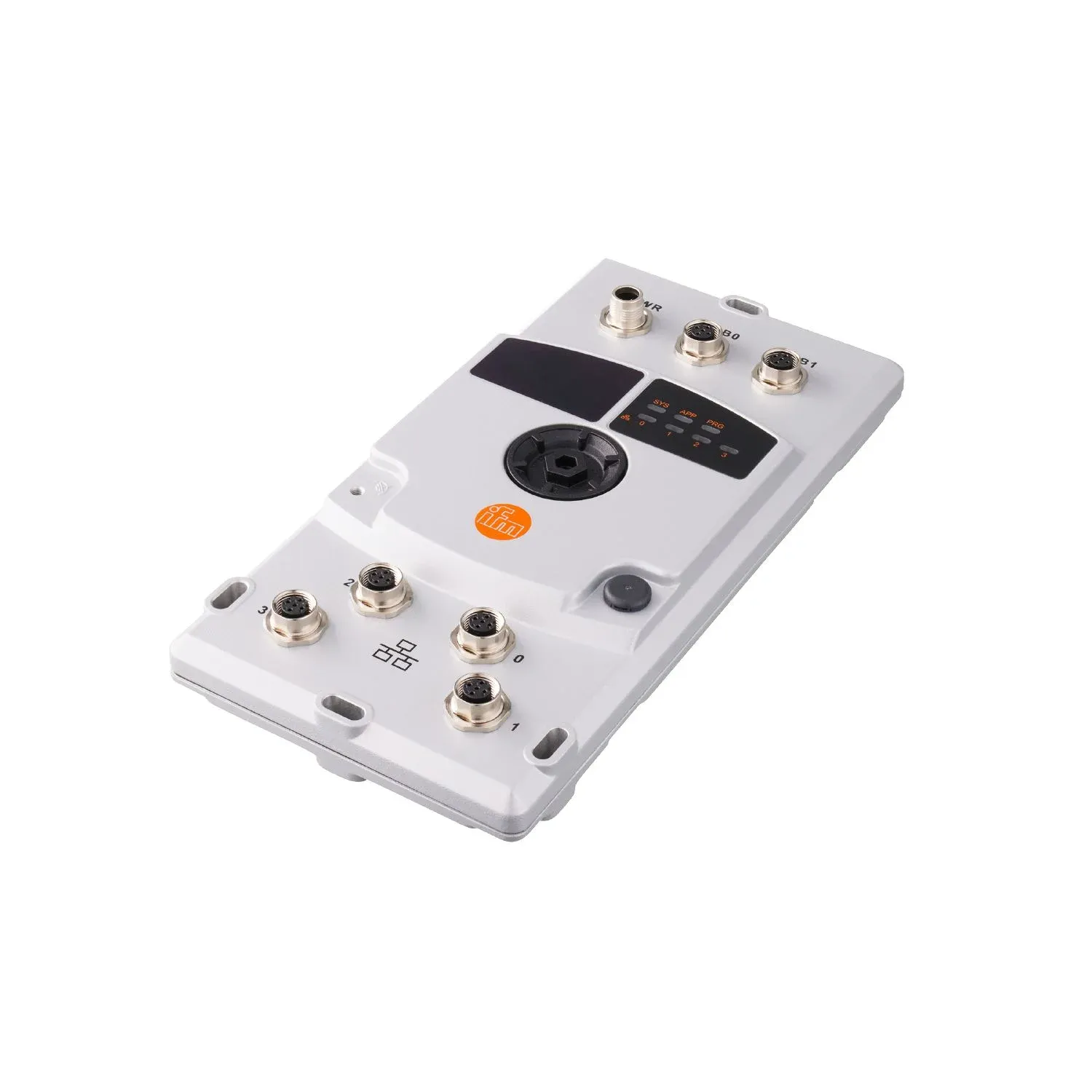

IFM AE3400
AE3400
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
2-in-1: cloud connector and powerful controller
Plug & play access to the I/O level via Ethernet
Mountable in several positions
Powerful technology for demanding applications
Perfect IO-Link integration
Specification
Product characteristics
| Communication interface | Ethernet; USB |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 250 x 125 x 32.5 |
Application
| Application | freely programmable edgeDevice for industrial applications |
|---|
Electrical data
| Operating voltage[V] [V] | 8...32 DC; (to PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 12 / 24 |
| Power consumption[W] [W] | 14; (max. power for USB devices: 1,5 A / 5 V) |
| Reverse polarity protection | yes |
| Overvoltage category | II |
Software / programming
| Parameter setting options | CODESYS 3.5 |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Communication interface | Ethernet; USB |
|---|---|
| Number of Ethernet interfaces | 4 |
| Number of USB interfaces | 2 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | < 480 MBit/s |
| Connector type | type A |
| Protocol | EtherNet/IP; PROFINET; EtherCAT; Modbus TCP; OPC UA; IoT (MQTT, HTTP, Cloud connectors) |
| Version | USB 2.0 |
| Note on interfaces | Output current limitation: 1,5 A Output current, total: 1,5 A |
Operating conditions
| Ambient temperature[°C] [°C] | -25...55 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 3000 |
| Protection | IP 65; IP 67 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN IEC 61000-6-2 EN IEC 61000-6-8 |
|---|
Mechanical data
| Weight[g] [g] | 1077.2 |
|---|---|
| Housing | rectangular |

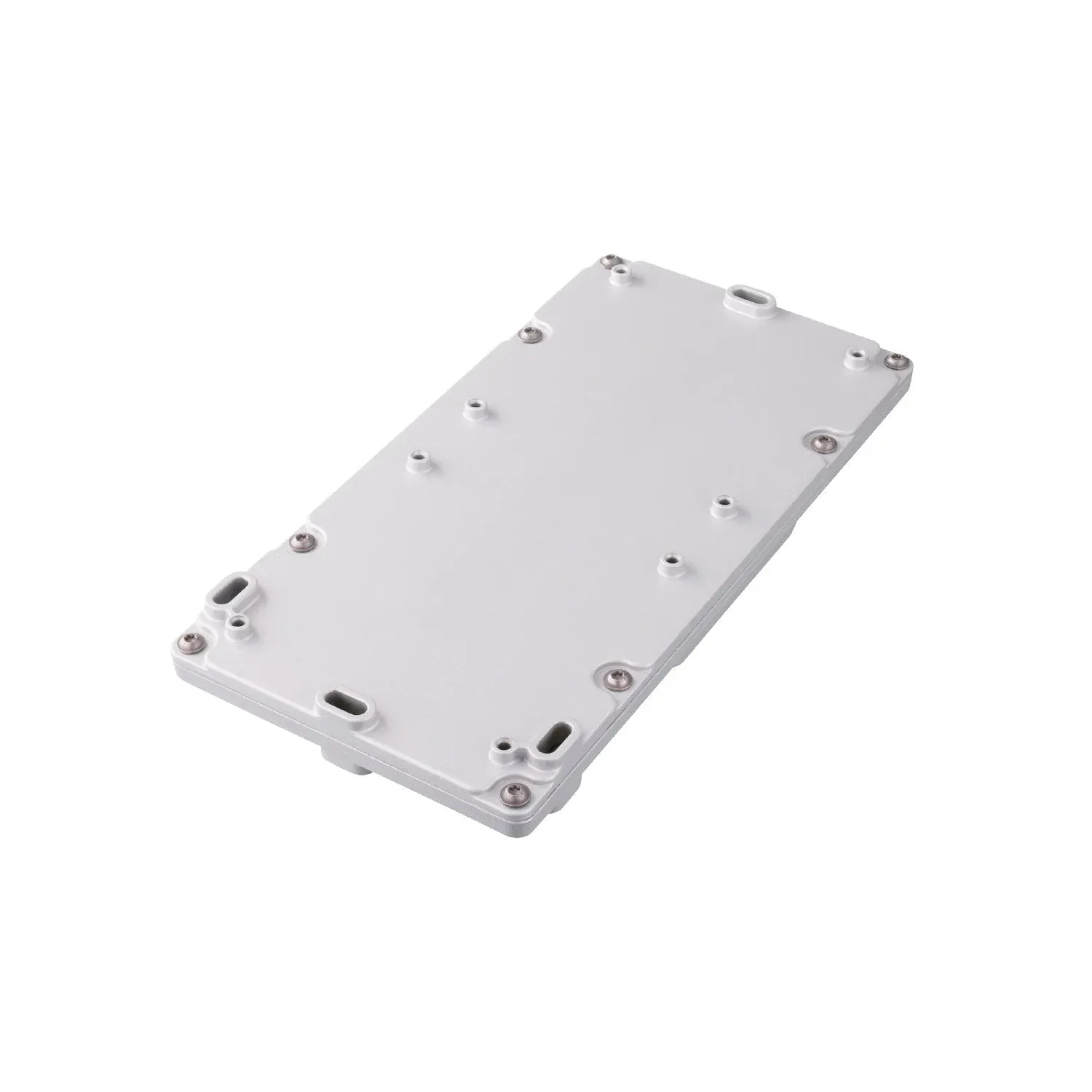

| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 250 x 125 x 32.5 |
| Materials | housing: diecast aluminium powder-coated |
Displays / operating elements
| Display | 3 LED, three-colour |
|---|
Hardware
| Processor | ARM 64 Bit Quad Core 1,2 GHz |
|---|---|
| RAM | 1 GByte RAM |
| Mass storage | 8 GByte Flash |
| Removable storage | SDHX; SDXC; USB interface |
Data memories
| Real-time clock | yes; UTC, battery buffered |
|---|
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector | 4 x M12; coding: D |
|---|
Electrical connection - power supply
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - USB
| Connector | 2 x M12; coding: B |
|---|
