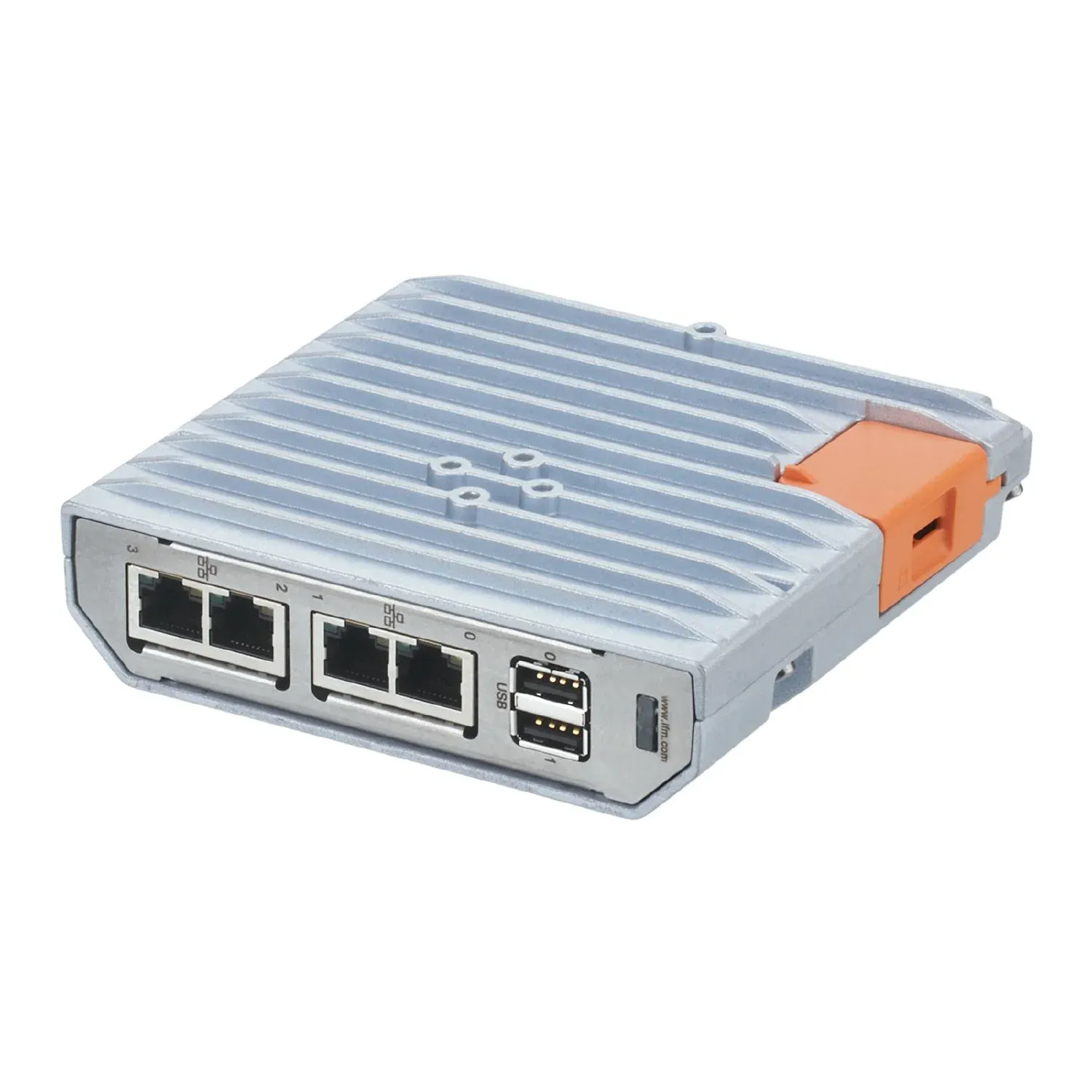

IFM AE2100
AE2100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Provision of data from the production environment for further processing in the moneo Cloud
Access data flexibly and without IT involvement across locations
Transmission intervals can be set individually for each data source
Powerful aggregation function to minimise data volumes
Preprocessing through logical calculations of values directly on the gateway
Specification
Product characteristics
| Communication interface | Ethernet; USB |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 140.4 x 36 x 129.5 |
Application
| Application | ideally suited for operation in the control cabinet or IT environment to collect data from industrial environments to improve operational efficiency, productivity and safety; to increase machine availability, ensure process quality or optimise energy consumption in industrial applications |
|---|
Electrical data
| Operating voltage[V] [V] | 18...32 DC; (PELV) |
|---|---|
| Nominal voltage DC[V] [V] | 24 |
| Power consumption[W] [W] | 14; (max. power for USB devices: 1,5 A / 5 V) |
| Reverse polarity protection | yes |
| Overvoltage category | II |
Software / programming
| Parameter setting options | moneo |
|---|
Interfaces
| Communication interface | Ethernet; USB |
|---|---|
| Number of Ethernet interfaces | 4 |
| Number of USB interfaces | 2 |
| Transmission standard | 10Base-T; 100Base-TX |
| Transmission rate | < 480 MBit/s |
| Connector type | type A |
| Protocol | TCP/IP; TCP/IP JSON; UDP; HTTP; OPC UA; MQTT |
| Version | USB 2.0 |
| Note on interfaces | Output current limitation: 1,5 A Output current, total: 1,5 A |
Operating conditions
| Ambient temperature[°C] [°C] | -25...55 |
|---|---|
| Note on ambient temperature | 2000 m: 55 °C 3000 m: 50 °C |
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 3000 |
| Protection | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-3 |
|---|---|
| MTTF[years] [years] | 52 |
Mechanical data
| Weight[g] [g] | 680 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 140.4 x 36 x 129.5 |
| Materials | housing: diecast aluminium passivated; stainless steel |
Displays / operating elements
| Display | 3 LED, three-colour |
|---|
Hardware
| Processor | ARM 64 Bit Quad Core 1,2 GHz |
|---|---|
| RAM | 4 GByte RAM |
| Mass storage | 20 GByte Flash |
| Removable storage | Micro SD card; SD; SDHX; SDXC; USB interface |
Data memories
| Real-time clock | yes; UTC, battery buffered |
|---|
Remarks
| Remarks | maximum transmission rate of 500 process values per second |
|---|---|
| Notes | an additional QCM100/QCM110 cloud subscription is required to use and operate the moneo Cloud |
| Pack quantity | 1 pcs. |
Electrical connection - Ethernet
| Connector | 4 x RJ45 |
|---|
Electrical connection - USB
| Connector | 2 x type A |
|---|
Electrical connection - power supply
| Connector | 1 x Cage clamp |
|---|
