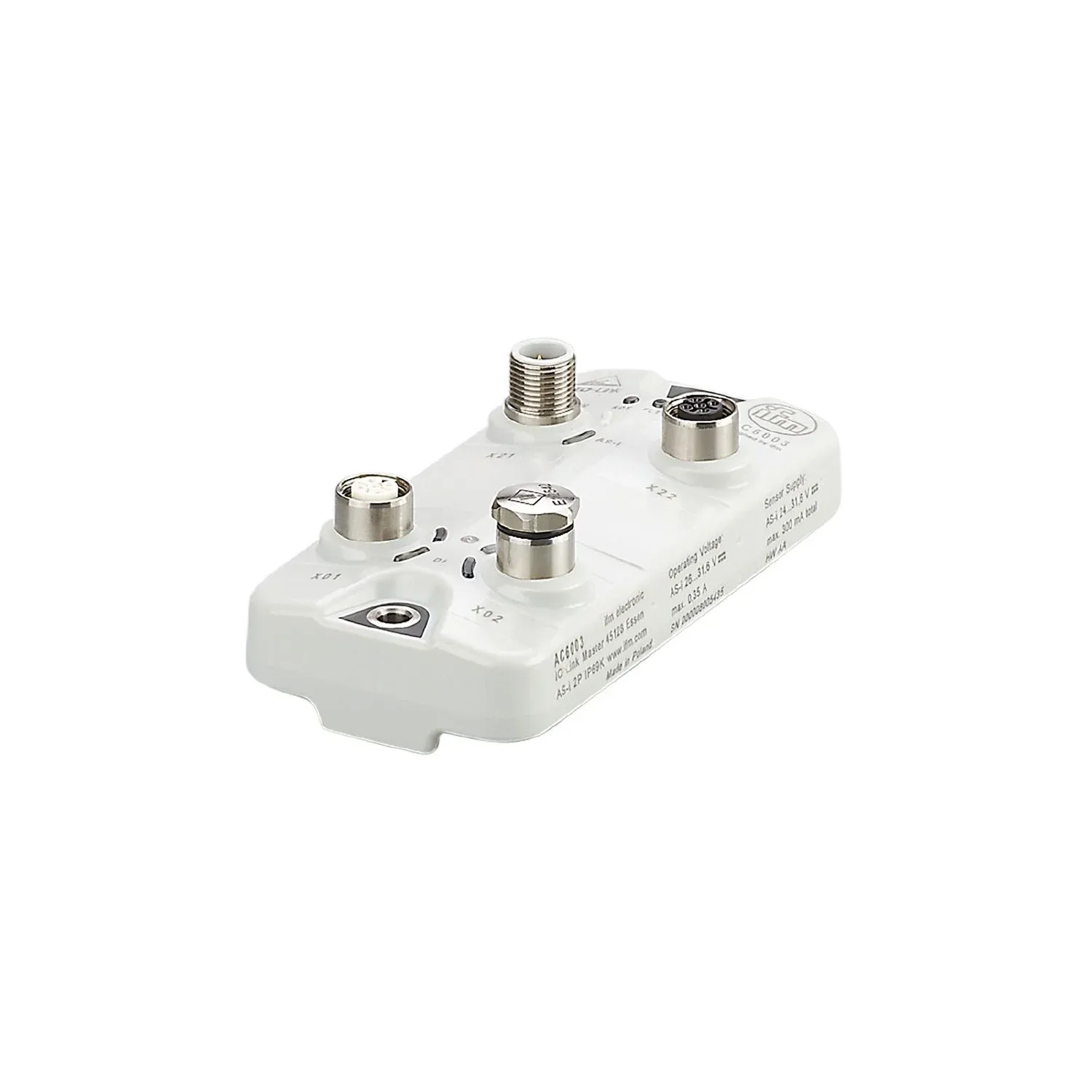

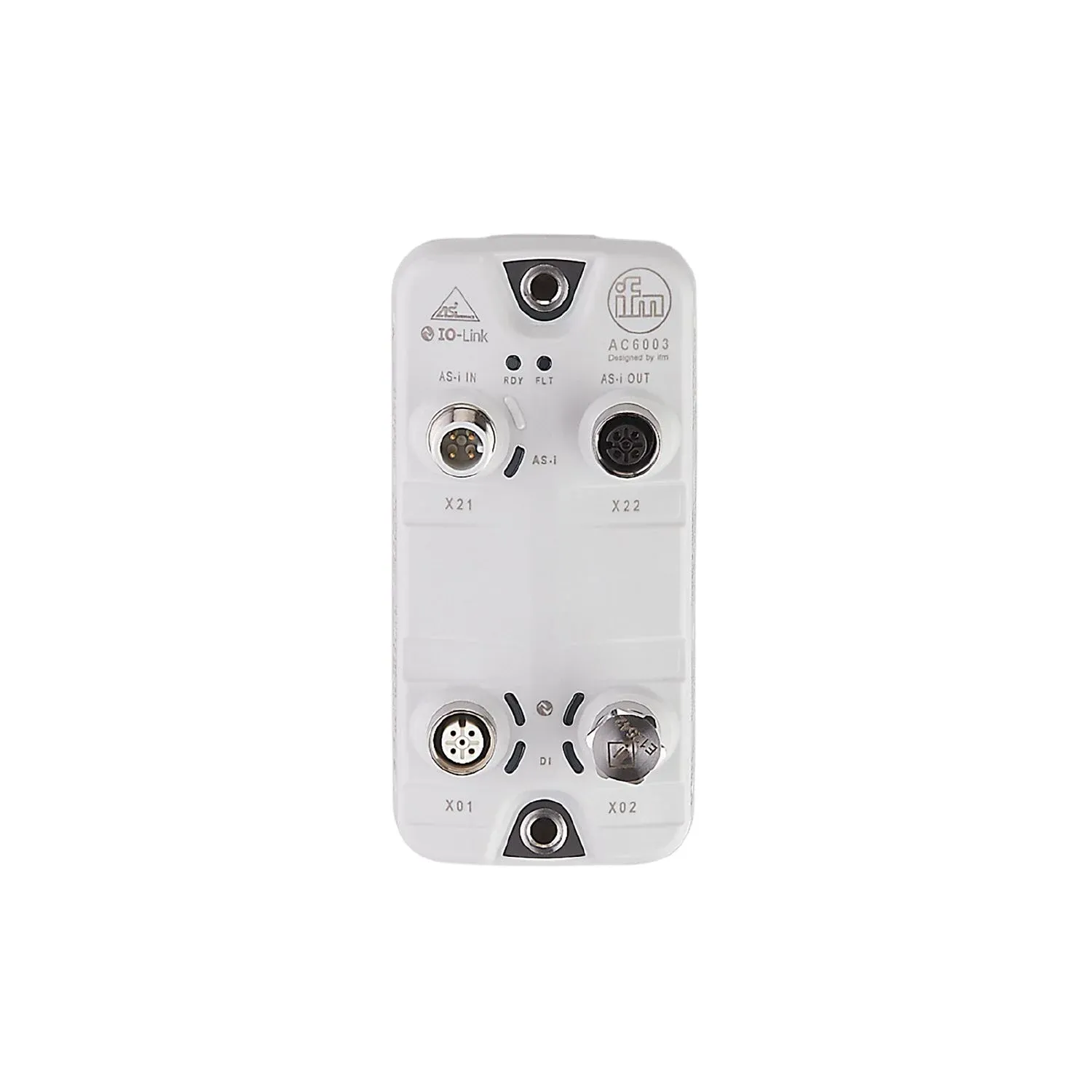

IFM AC6003
AC6003
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Reliable transmission of machine data, process parameters and diagnostic data to the controller
Simple replacement of units due to integrated parameter memory
High protection rating for the requirements of the food and beverage industry
Master and sensors only supplied via the yellow AS-i cable
For connection of up to two IO-Link devices
Specification
Application
| Application | hygienic and wet areas in the food industry |
|---|---|
| Daisy-chain function | power supply; fieldbus interface |
Electrical data
| Operating voltage[V] [V] | 26...31.6 DC; (AS-i) |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 350 |
| Protection class | III |
| Max. current load total[A] [A] | 0.3; (ports 1+2: 0,3 (AS-i)) |
Inputs / outputs
| Total number of inputs and outputs | 4; (configurable) |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 2 |
Inputs
| Number of digital inputs | 4; (IO-Link Port Class A: 2 x 2) |
|---|---|
| Sensor supply of the inputs | AS-i |
| Switching level high[V] [V] | 11...30 |
| Switching level low[V] [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 2; (IO-Link Port Class A: 2 x 1) |
|---|---|
| Max. current load outputs total[A] [A] | 0.3 |
| Short-circuit proof | yes |
| Actuator supply outputs | AS-i |
Interfaces
| Communication interface | IO-Link; AS-i |
|---|---|
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| IO-Link revision | 1.1 |
| Number of ports class A | 2 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90 |
| Protection | IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 2009-04 DIN EN 60068-2-6 2008-10 |
| MTTF[years] [years] | 194 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | no |
| AS-i profile | basic slave (CTT1 input) S-7.4.E additional slave (CTT1 input) S-7.3.E additional slave (CTT1 output) S-7.3.2 |
| basic slave (CTT1 input) | S-7.4.E |
| additional slave (CTT1 input) | S-7.3.E |
| additional slave (CTT1 output) | S-7.3.2 |
| Number of AS-i devices | 1...5 |
Mechanical data
| Weight[g] [g] | 242.6 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 124 x 59.3 x 38.4 |
| Materials | housing: PA grey; socket: stainless steel (316L/1.4404) |
Electrical connection
| Module connection | M12 |
|---|
Remarks
| Remarks | For further information please see the operating instructions. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - IO-Link
| Connector | 2 x M12; coding: A |
|---|
Electrical connection - power supply IN
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - power supply OUT
| Connector | 1 x M12; coding: A |
|---|
