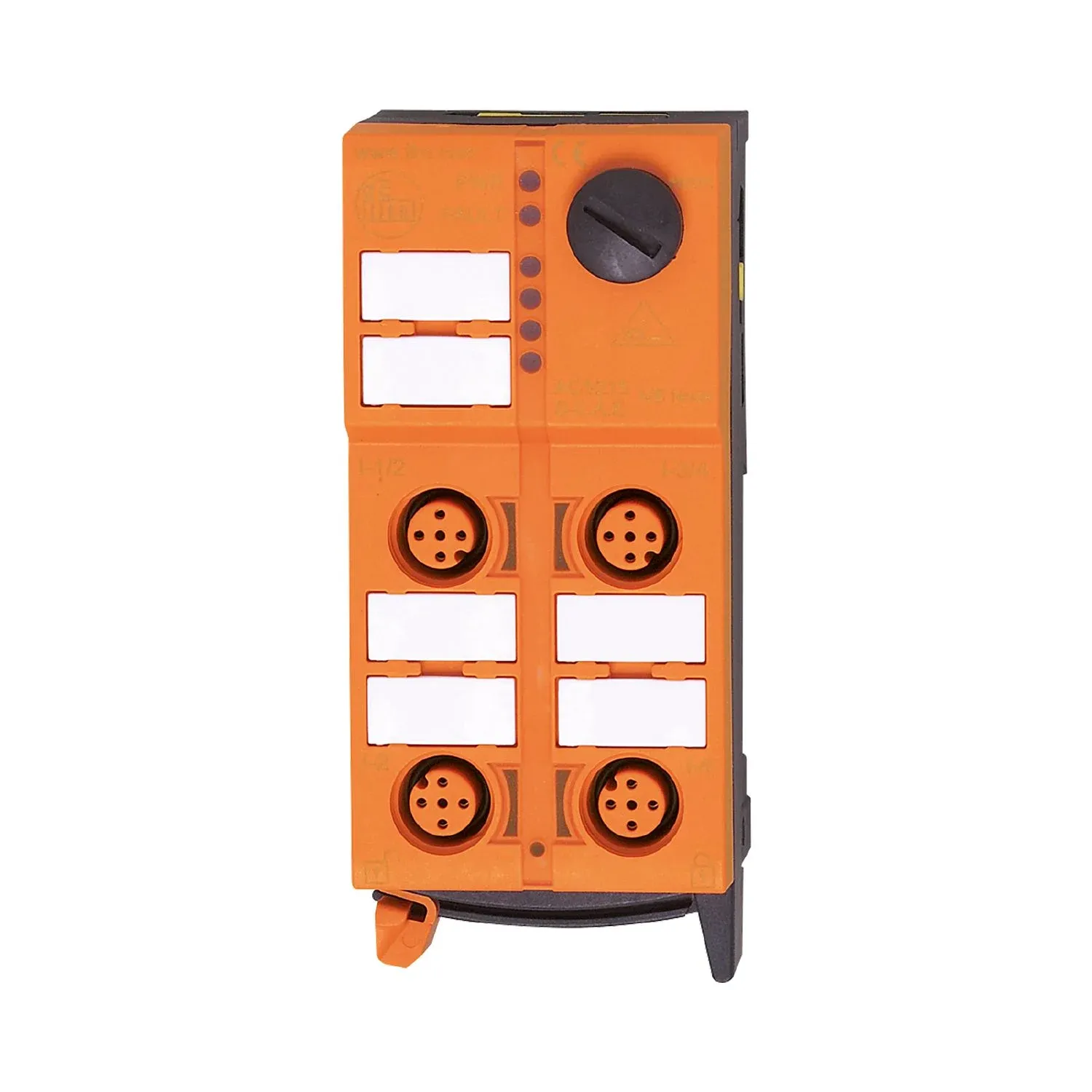

IFM AC5226
AC5226
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy toolless installation and wiring thanks to quick mounting technology
Three freely selectable directions of the flat cable
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue inputs: 4 |
|---|
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | field installation |
Electrical data
| Operating voltage[V] [V] | 18...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 50 |
| Reverse polarity protection | yes |
| Max. current load total[A] [A] | 2 |
| Additional voltage supply[V] [V] | 16...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 2000 |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 4 |
|---|
Inputs
| Sensor supply of the inputs | AUX |
|---|---|
| Number of analogue inputs | 4; (connection of 2-wire, 3-wire and 4-wire sensors) |
| Analogue input (current)[mA] [mA] | 4...20 |
| Max. voltage drop across load for nominal voltage[V] [V] | 10 |
| Analogue inputs protected against short circuits | yes |
| Resolution of analogue input | 12 bit |
Accuracy / deviations
| Accuracy | 0.5; (% of the final value of the measuring range; tolerance under the influence of electromagnetic interference: < ± 1 % of the final value of the measuring range) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 EN 61000-6-2 EN 61000-6-3 |
|---|---|
| MTTF[years] [years] | 105 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.E |
| AS-i certificate | 123501 |
Mechanical data
| Weight[g] [g] | 188 |
|---|---|
| Housing | rectangular |
| Type of mounting | quick mounting; AS-i flat cables directly connectable; mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 103 x 45 x 44.7 |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display | analogue signal LED, yellow channels AI1...AI4 operation LED, green AS-i, AUX errors LED, red |
|---|---|
| analogue signal | LED, yellow channels AI1...AI4 |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Items supplied | lower part |
|---|---|
| Accessories (optional) | Protective cap: M12, E73004 |
Remarks
| Remarks | There is an electrical separation between AS-i and AUX and between AS-i and the analogue inputs. The actuator supply on pins 1 and 3 can be used to supply the sensors. 3-wire connection possible via external link. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| quick mounting technology for AS-i flat cable | ; three orientations possible |
|---|---|
| Connector | M12; coding: A |
