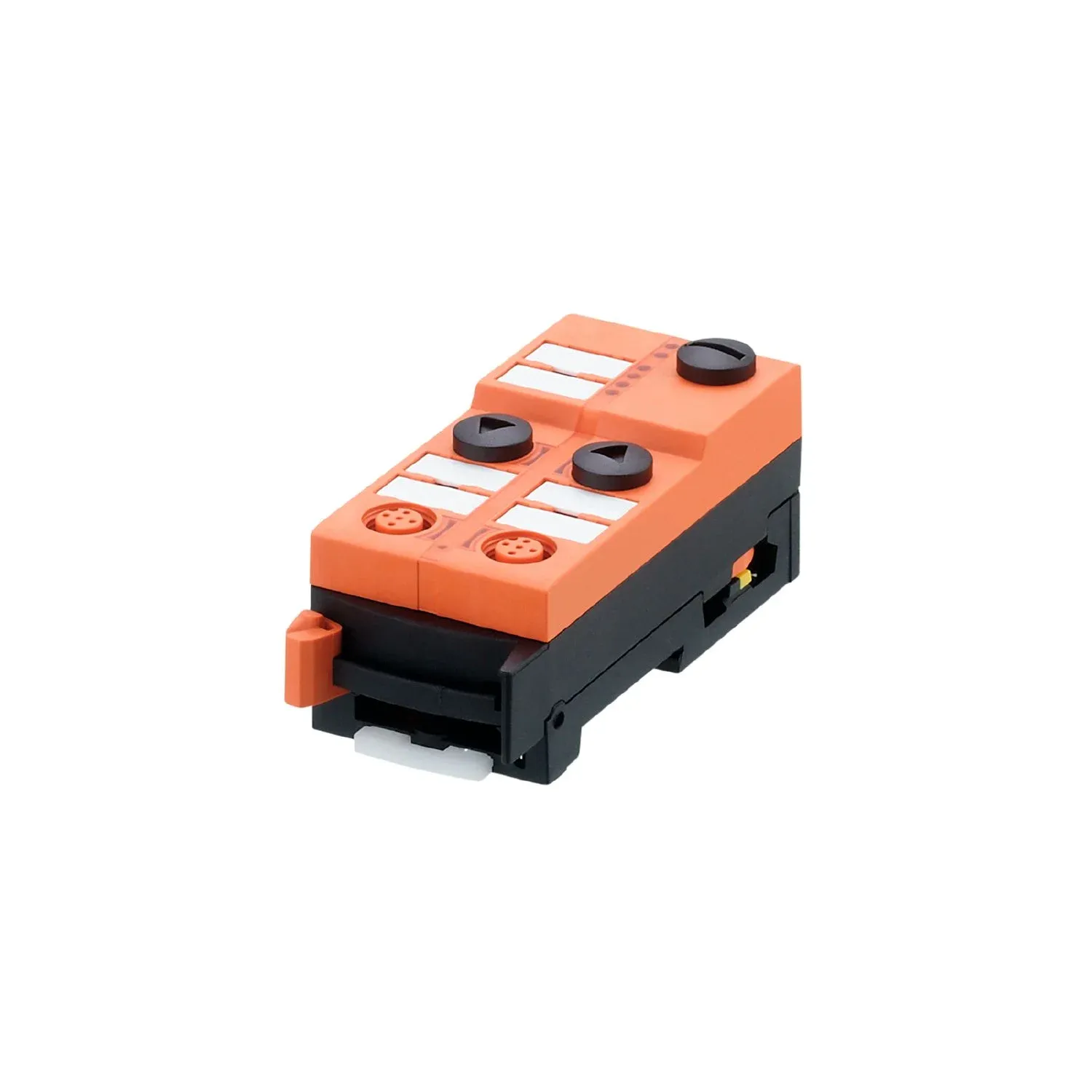

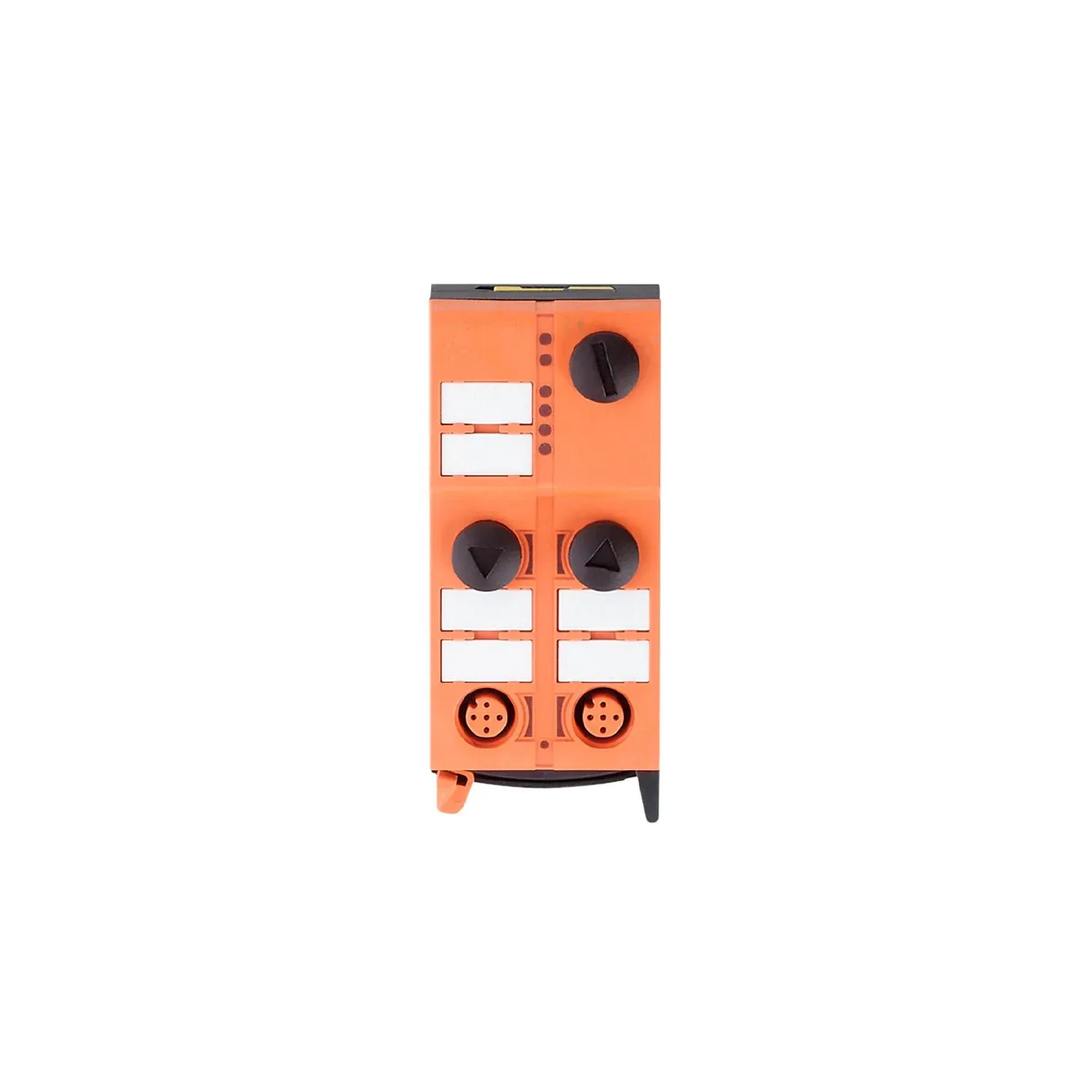

IFM AC5225
AC5225
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy toolless installation and wiring thanks to quick mounting technology
Three freely selectable directions of the flat cable
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Application
| Design | housing for DIN rail mounting, only for operation with AS-i masters with the profile M4 |
|---|---|
| Application | field installation |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 300 |
| Reverse polarity protection | yes |
| Additional voltage supply[V] [V] | 20...30 DC |
Inputs
| Sensor supply of the inputs | AS-i |
|---|---|
| Digital inputs protected against short circuits | yes |
Interfaces
| Communication interface | IO-Link; AS-i |
|---|---|
| Min. process cycle time[ms] [ms] | 2.3 |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud) |
| IO-Link revision | 1.0 |
| Number of ports class A | 2 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 |
|---|---|
| MTTF[years] [years] | 149 |
AS-i classification
| AS-i version | 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M4 |
| AS-i profile | S-7.5.5 |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 5.5 |
Mechanical data
| Weight[g] [g] | 161.35 |
|---|---|
| Housing | rectangular |
| Type of mounting | quick mounting; AS-i flat cables directly connectable; mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 103 x 45 x 44.7 |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display | operation PWR LED, green Voltage AS-i errors LED, red switching status LED, yellow DI/DO Port 1, Port 2 communication LED, green IO-Link Port 1, Port 2 disturbed communication LED, red Port 1, Port 2 |
|---|---|
| operation | PWR LED, green Voltage AS-i |
| errors | LED, red |
| switching status | LED, yellow DI/DO Port 1, Port 2 |
| communication | LED, green IO-Link Port 1, Port 2 |
| disturbed communication | LED, red Port 1, Port 2 |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Items supplied | lower part |
|---|---|
| Accessories (optional) | Protective cap: M12, E73004 |
Remarks
| Remarks | When the sensors and actuators are supplied from AS-i the load must not exceed a maximum of 200 mA. There is an electrical connection between the sensor and AS-i. operating voltage "supply class 2" according to cULus |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| quick mounting technology for AS-i flat cable | ; three orientations possible |
|---|---|
| Connector | M12; coding: A |
