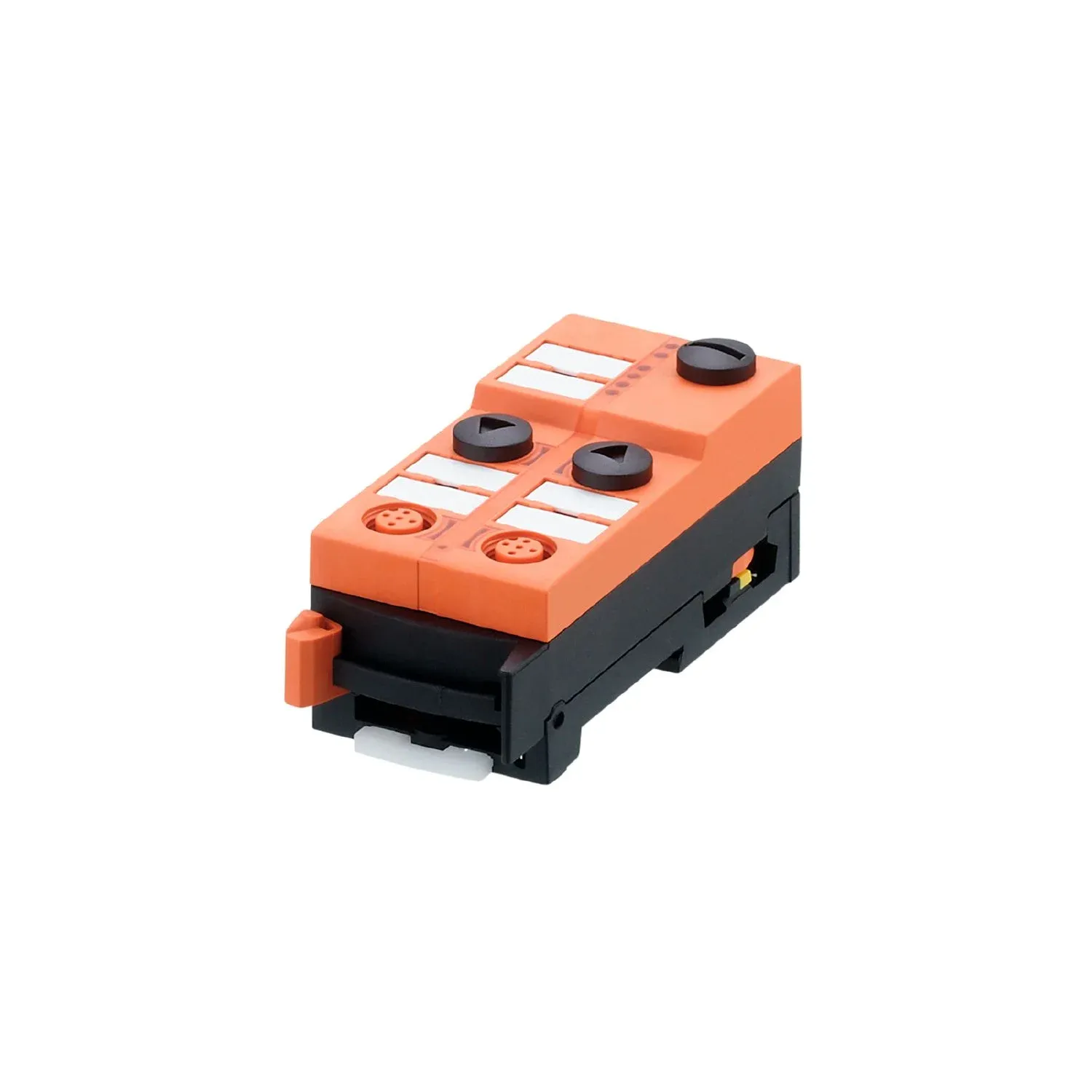

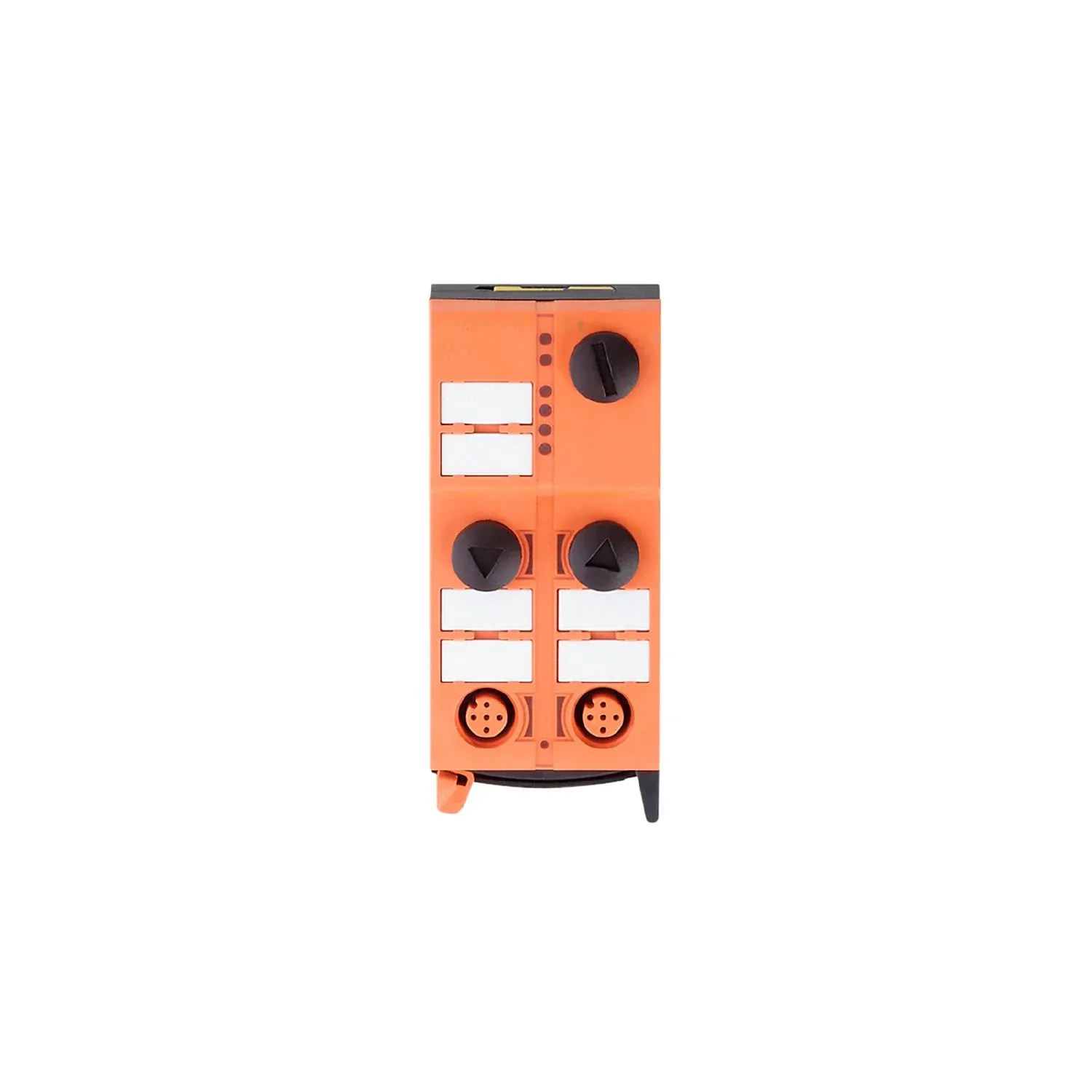

IFM AC5222
AC5222
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy toolless installation and wiring thanks to quick mounting technology
Three freely selectable directions of the flat cable
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Product characteristics
| Number of inputs and outputs | Number of analogue inputs: 2 |
|---|
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | field installation |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 250 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 2 |
|---|
Inputs
| Sensor supply of the inputs | AS-i |
|---|---|
| Number of analogue inputs | 2; (connection of 2- and 3-wire sensors) |
| Analogue input (current)[mA] [mA] | 4...20 |
| Max. voltage drop across load for nominal voltage[V] [V] | 10 |
| Analogue inputs protected against short circuits | yes |
| Resolution of analogue input | 12 bit |
Accuracy / deviations
| Accuracy | 0.5; (% of the final value of the measuring range; tolerance under the influence of electromagnetic interference: < ± 1 % of the final value of the measuring range) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...70 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 |
|---|---|
| MTTF[years] [years] | 174 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.D |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.D |
Mechanical data
| Weight[g] [g] | 176 |
|---|---|
| Housing | rectangular |
| Type of mounting | quick mounting; AS-i flat cables directly connectable; mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 103 x 45 x 44.7 |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display | analogue signal LED, yellow channels AI1...AI2 operation LED, green AS-i errors LED, red |
|---|---|
| analogue signal | LED, yellow channels AI1...AI2 |
| operation | LED, green AS-i |
| errors | LED, red |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Items supplied | lower part |
|---|---|
| Accessories (optional) | Protective cap: M12, E73004 |
Remarks
| Remarks | When the actuators are supplied from AS-i the load must not exceed a maximum of 200 mA. There is an electrical connection between the sensor and AS-i. The module is exclusively supplied via the yellow AS-i cable. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| quick mounting technology for AS-i flat cable | ; three orientations possible |
|---|---|
| Connector | M12; coding: A |
