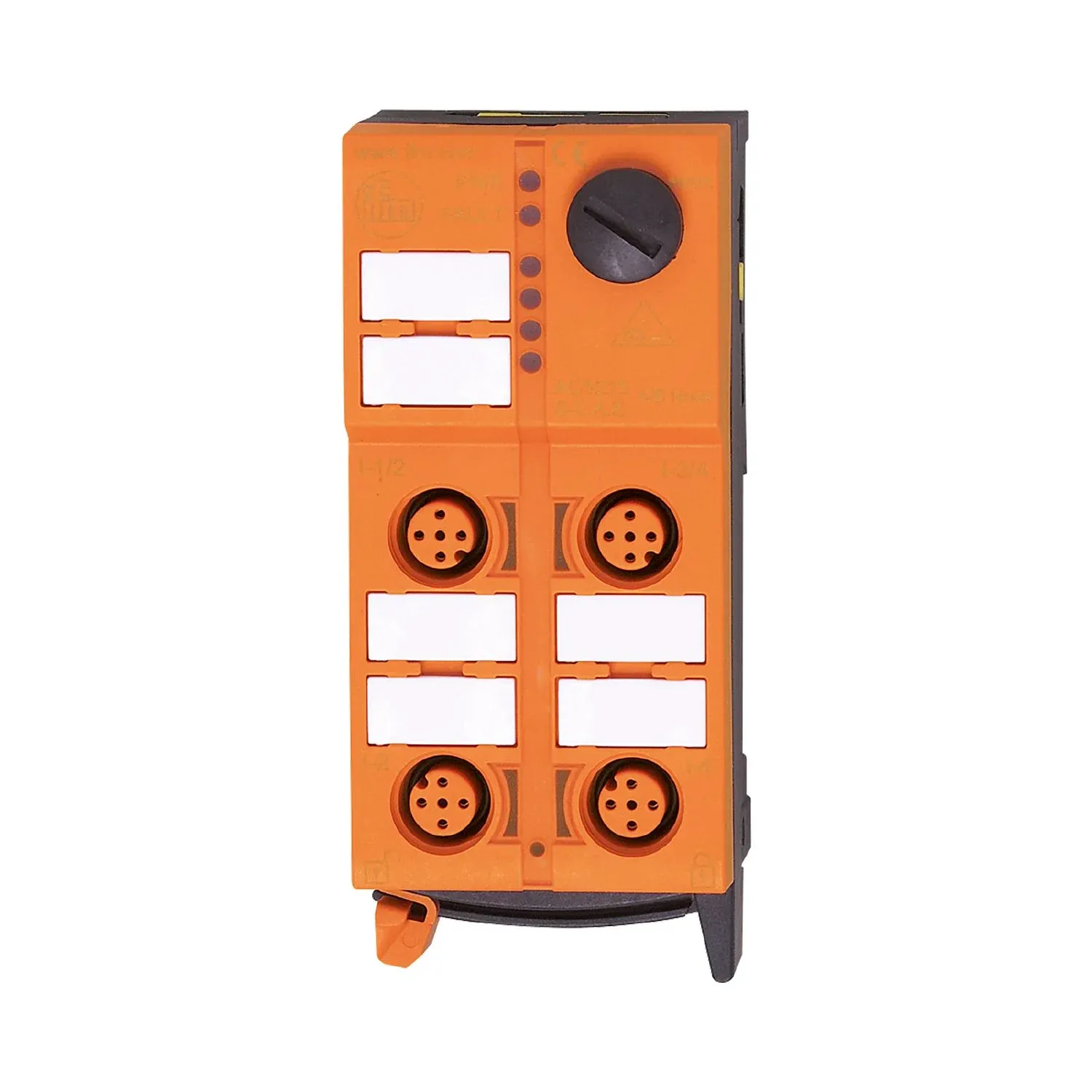

IFM AC5213
AC5213
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy toolless installation and wiring thanks to quick mounting technology
Three freely selectable directions of the flat cable
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | field installation |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC; ("supply class 2" to cULus) |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 50 |
| Additional voltage supply[V] [V] | 15...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 4000 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Circuit | PNP |
| Voltage range DC[V] [V] | 15...30; (to PELV; via flat cable) |
| Max. current load per output[mA] [mA] | 2000; (utilisation category DC-13 (control of electromagnets): 40 W (IEC 60947-5-1)) |
| Max. current load outputs total[A] [A] | 4 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 IEC 61000-6-2 |
|---|---|
| MTTF[years] [years] | 201 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-8.0.E |
| AS-i I/O configuration[hex] [hex] | 8 |
| AS-i ID code[hex] [hex] | 0.E |
| Assignment of the data bits | data bit D0 D1 D2 D3 Output 1 2 3 4 socket O-1/2 O1/2 O-2 O-3/4 O-3/4 O-4 pin 4 2 4 4 2 4 |
| data bit | D0 |
| Output | 1 |
| socket | O-1/2 |
| pin | 4 |
Mechanical data
| Weight[g] [g] | 183.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i flat cables directly connectable; mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 103 x 45 x 44.7 |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Items supplied | lower part |
|---|---|
| Accessories (optional) | Protective cap: M12, E73004 |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| quick mounting technology for AS-i flat cable | ; three orientations possible |
|---|---|
| Connector | M12 |
