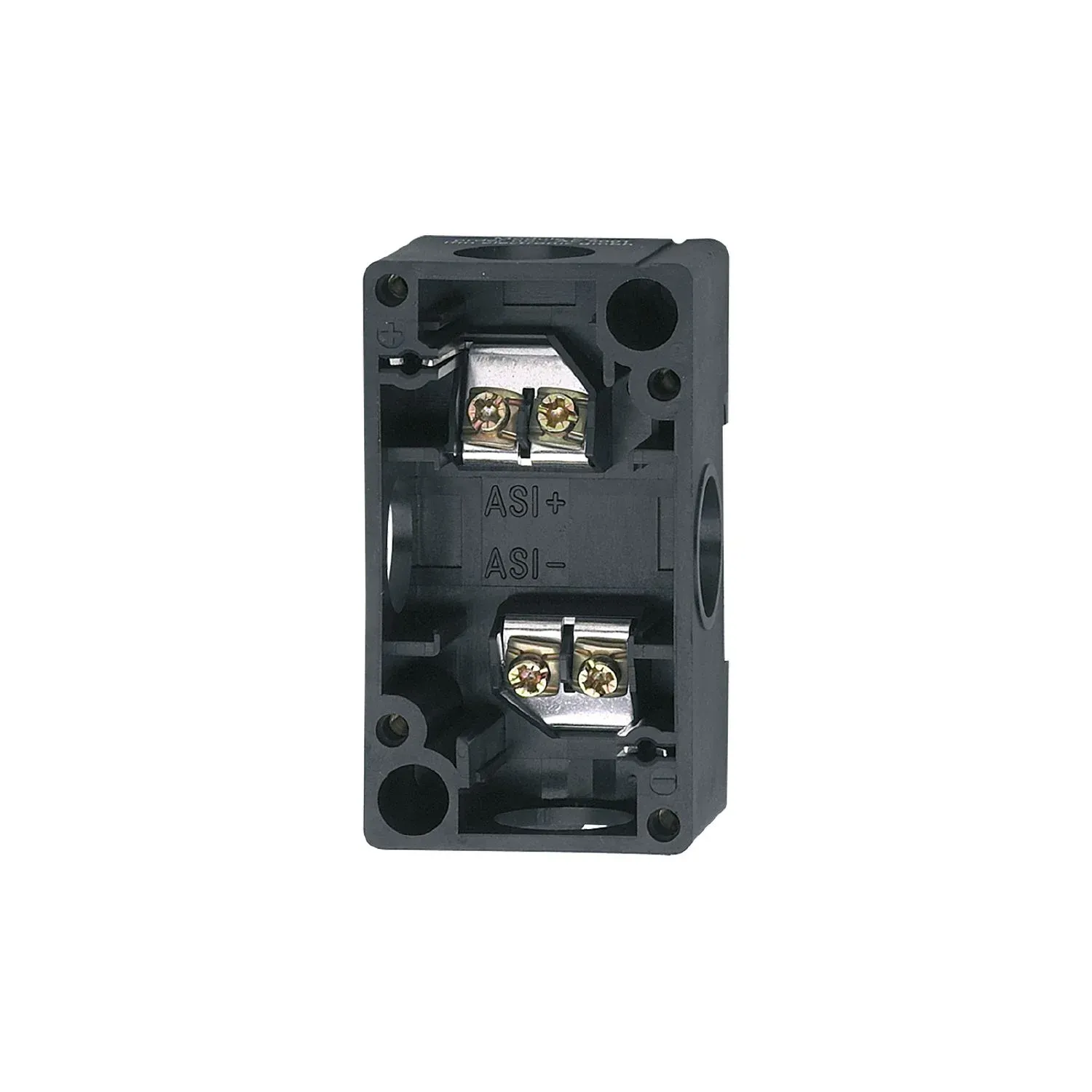

IFM AC5101
AC5101
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
AS-i interface to module upper part
Reliable connection to the AS-i flat cable thanks to quick mounting technology
For mounting on DIN rail and panel
High protection rating for the requirements of harsh industrial environments
Specification
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|
Outputs
| Electrical design | AS-i |
|---|---|
| Contact rating | < 4 A |
Operating conditions
| Ambient temperature[°C] [°C] | -25...85 |
|---|---|
| Protection | IP 65 |
Mechanical data
| Weight[g] [g] | 70.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail and panel |
| Dimensions[mm] [mm] | 82.5 x 45 x 33 |
| Materials | PBT |
Accessories
| Accessories (optional) | cover:, for AS-i module, AC3000 screw terminal insert:, AC5007 |
|---|
Remarks
| Remarks | up to 4 M20 cable ports for any T and cross branches For DIN rail mounting pull the locking bolt outwards using a suitable tool (e.g. screwdriver). |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| screw terminals | ...2.5 mm² |
|---|
