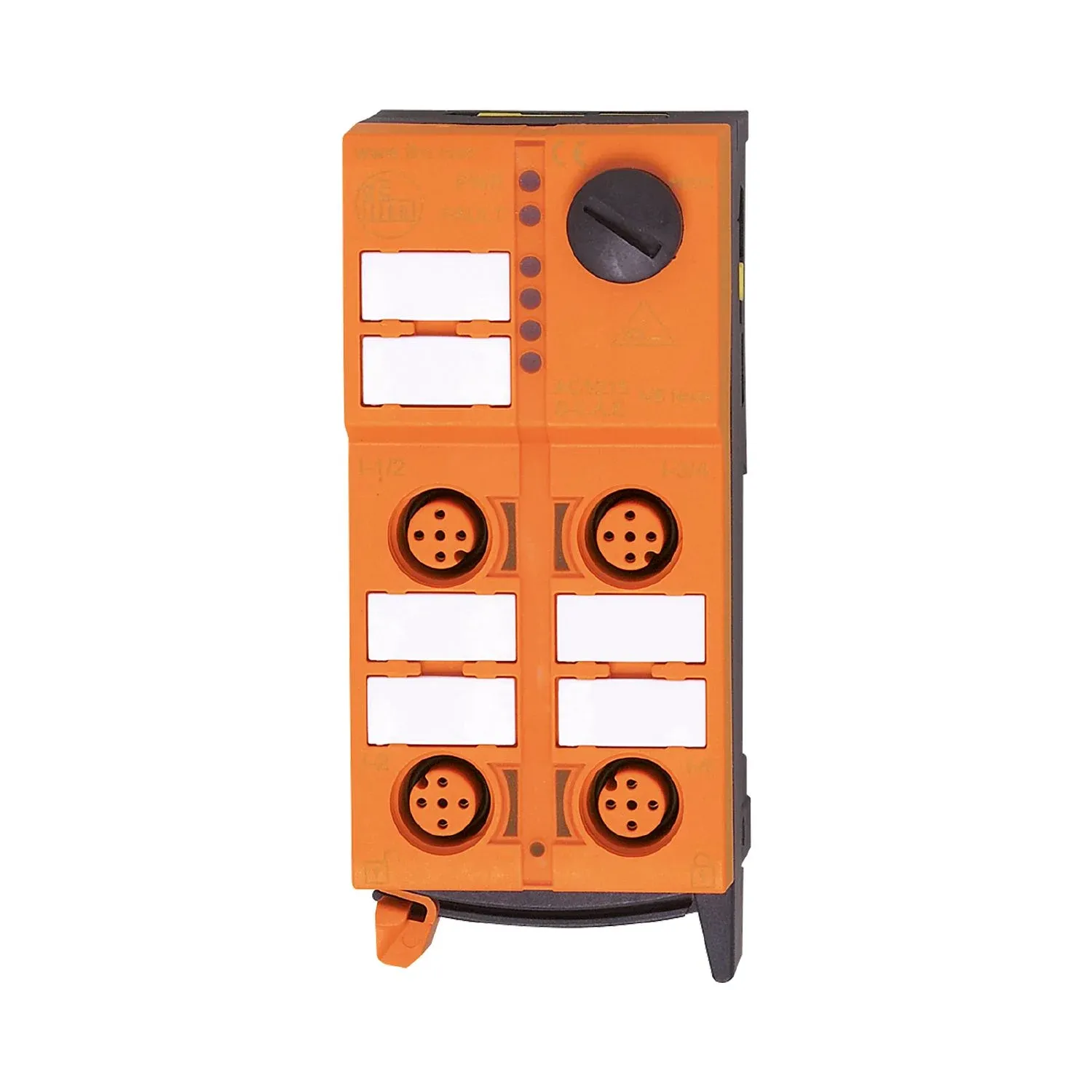

IFM AC508A
AC508A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy toolless installation and wiring thanks to quick mounting technology
Three freely selectable directions of the flat cable
Clearly visible powerful LEDs for displaying operation, switching status and error
For applications in hazardous areas
Robust M12 connectors for connecting sensors and actuators
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | AS-i ATEX module |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 50 |
| Max. current load total[A] [A] | 2 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Circuit | PNP |
| Voltage range DC[V] [V] | 15...30; (to PELV; via flat cable) |
| Max. current load per output[mA] [mA] | 1000; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Short-circuit proof | yes |
| Electrically separated | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Protection | IP 50 |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIB T80°C Dc X IP50 |
|---|---|
| EMC | EN 50295 IEC 61000-6-2 |
| MTTF[years] [years] | 211 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-8.0.E |
| AS-i I/O configuration[hex] [hex] | 8 |
| AS-i ID code[hex] [hex] | 0.E |
| AS-i certificate pending | yes |
| Assignment of the data bits | data bit D0 D1 D2 D3 Output 1 2 3 4 socket O-1/2 O1/2 O-2 O-3/4 O-3/4 O-4 pin 4 2 4 4 2 4 |
| data bit | D0 |
| Output | 1 |
| socket | O-1/2 |
| pin | 4 |
Mechanical data
| Weight[g] [g] | 228.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i flat cables directly connectable; mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 103 x 45 x 44.7 |
| Materials | PA; piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Items supplied | lower part |
|---|---|
| Accessories (optional) | Protective cap: M12, E73004 Impact protection housing:, E7000A |
Remarks
| Remarks | Mechanical protection has to be implemented. Otherwise the unit must be installed together with the impact protection housing (E7000A). |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| quick mounting technology for AS-i flat cable | ; three orientations possible |
|---|---|
| Connector | M12; coding: A |
