IFM AC422S
AC422S
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
With integrated fieldbus interface and fail-safe PLC
Reliable and fast data exchange with the sensor actuator level

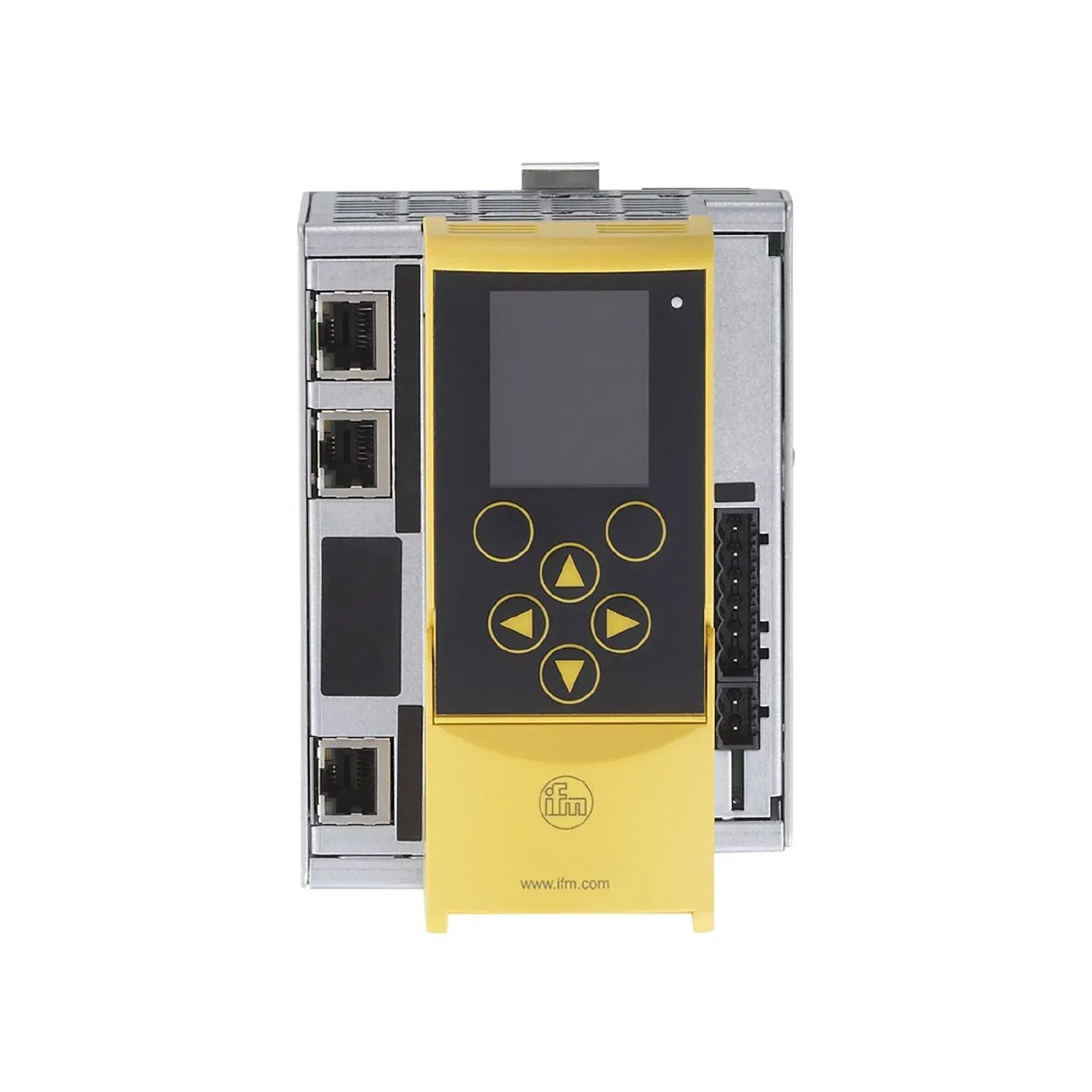

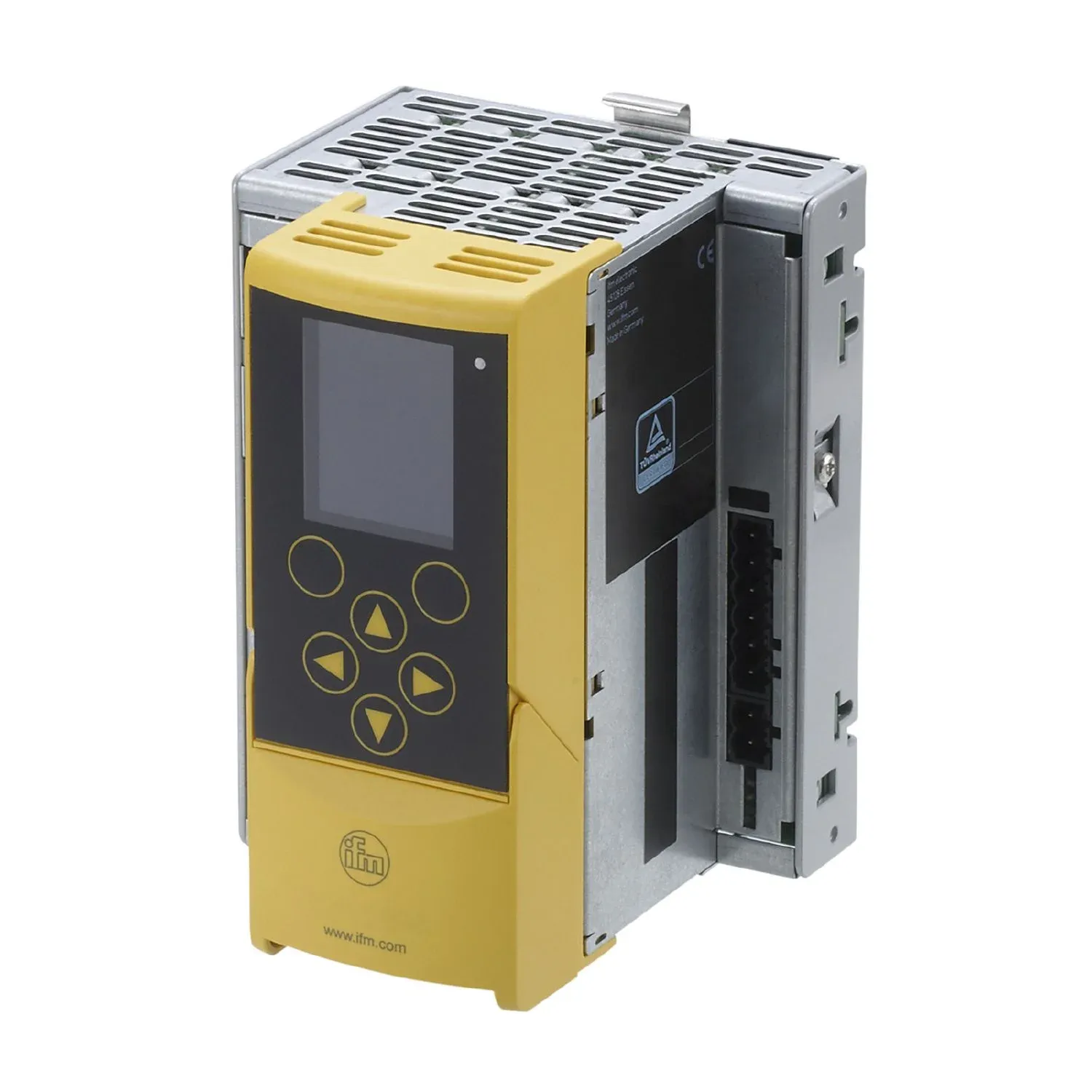

Colour display for indicating the status of all AS-i slaves
User-friendly and simple configuration, set-up and diagnosis
Quick-setup menu with intuitive operation
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | EtherNet/IP gateway with safe preprocessing |
Electrical data
| Operating voltage[V] [V] | 18...32 DC; (AUX) |
|---|---|
| Current consumption[mA] [mA] | < 750 |
| Max. current consumption from AS-i[mA] [mA] | AS-i 1: 10 mA; AS-i 2: 10 mA |
| Number of AS-i masters | 2 |
| Electrical separation | yes |
Inputs
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
|---|---|
| Sensor supply of the inputs | to SELV/PELV |
| Power supply[V] [V] | 18...24 |
Outputs
| Circuit | PNP |
|---|---|
| Voltage range DC[V] [V] | 18...32; (to SELV/PELV) |
| Max. current load per output[mA] [mA] | 500 |
| Switching frequency AC[Hz] [Hz] | < 25 |
| Short-circuit proof | yes |
| Electrically separated | yes |
Interfaces
| Communication interface | Ethernet |
|---|---|
| Protocol | UDP/IP |
| Usage type | programming |
| Transmission rate | 10 MBaud; 100 MBaud |
| Connector type | RJ45 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...45 |
|---|---|
| Note on ambient temperature | cULus: ...50 °C |
| Storage temperature[°C] [°C] | -20...70 |
| Protection | IP 20 |
Safety classification
| Complies with the requirements | ISO 13849-1: 2023 category 4, PL e IEC 61508 SIL 3 |
|---|---|
| Mission time TM[h] [h] | 175200 |
| Mission time TM (additional indication) | 20 years |
| PFH[1/h] [1/h] | 1,21E-08 |
| PFD | 1,04E-04 |
AS-i classification
| AS-i version | 3.0 |
|---|---|
| AS-i master profile | M4 |
| AS-i certificate | 125301 |
Mechanical data
| Weight[g] [g] | 851.4 |
|---|---|
| Housing | rectangular |

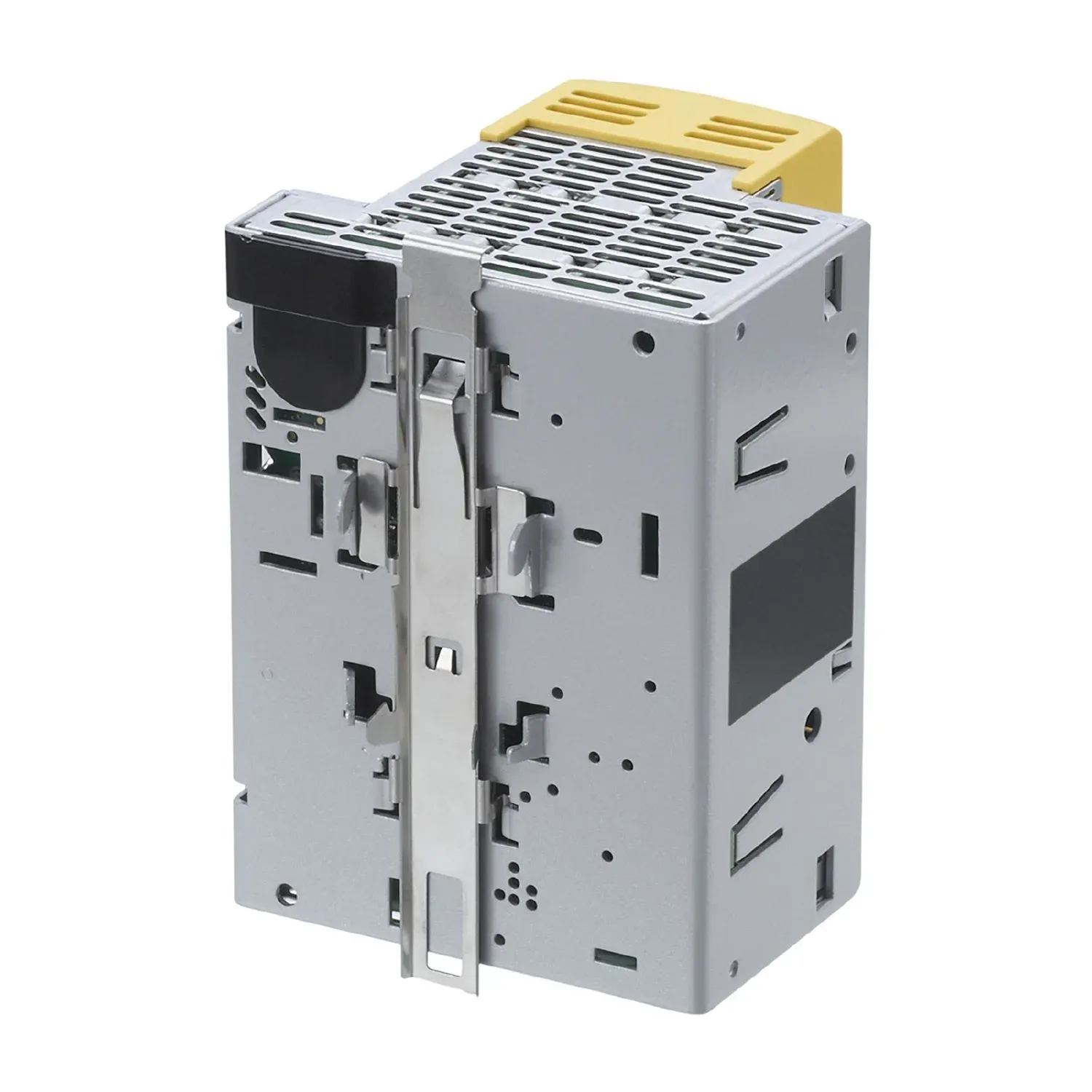

| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 135.5 x 93 x 106.2 |
| Materials | aluminium powder-coated; steel sheet galvanised; PC |
Displays / operating elements
| Display | function 1 x LED, red/green full graphic LCD display |
|---|---|
| function | 1 x LED, red/green |
Accessories
| Items supplied | terminals |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
