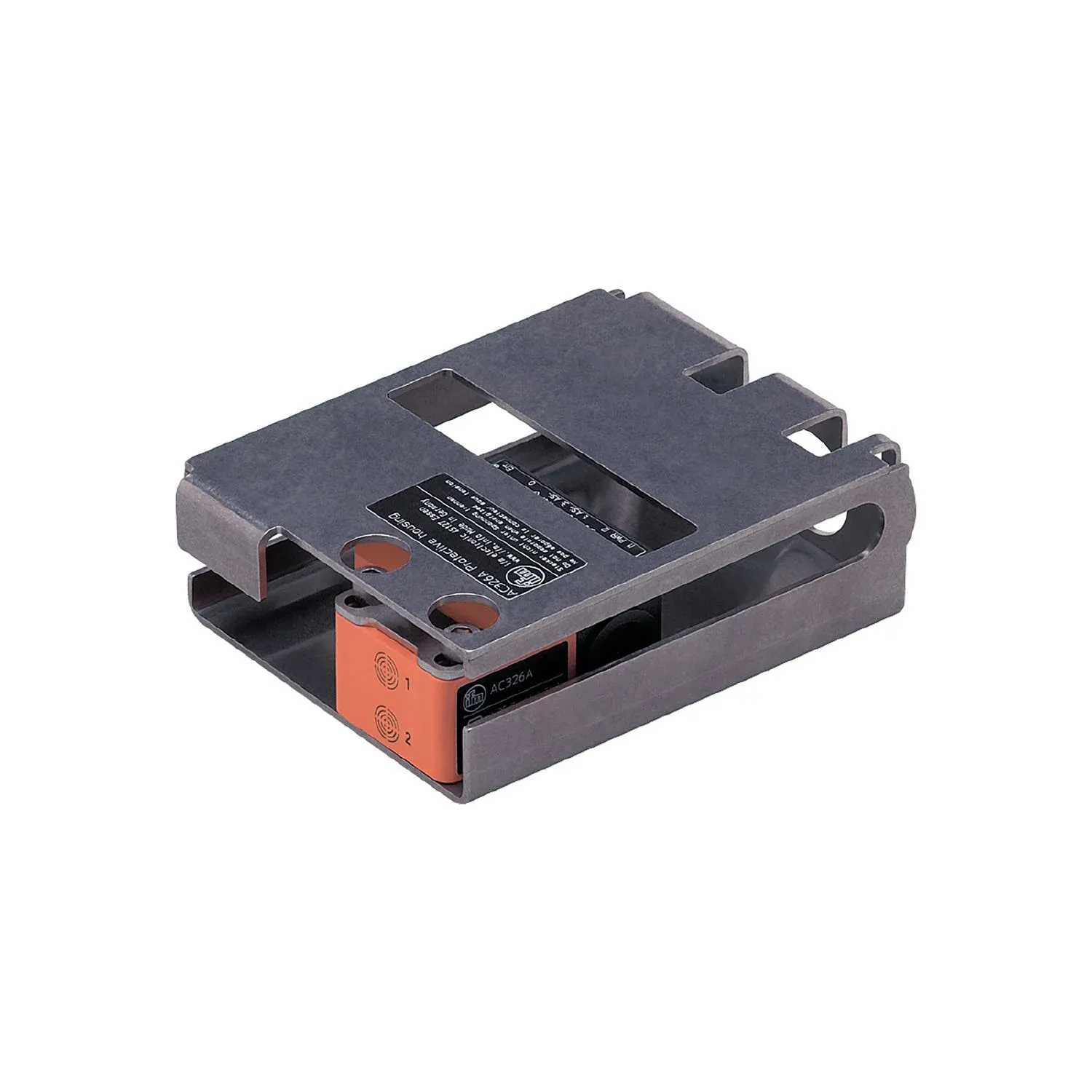

IFM AC336A
AC336A
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For monitoring valve positions
For reliable position feedback on valve actuators
With triggering and fault monitoring of the solenoid valve
Non-contact and self-cleaning system
Quick and secure mounting with only three screws
Specification
Product characteristics
| Electrical design | AS-i |
|---|---|
| Sensing range[mm] [mm] | 4 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 55 x 60 x 35 |
Application
| Application | position sensor for valve actuators; actuator control |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | 160 |
| Protection class | III |
Outputs
| Electrical design | AS-i |
|---|
Detection zone
| Sensing range[mm] [mm] | 4 |
|---|---|
| Operating distance target puck[mm] [mm] | 74 |
Operating conditions
| Ambient temperature[°C] [°C] | -10...50 |
|---|---|
| Protection | IP 5x; (when used outside the hazardous area: IP 67) |
Tests / approvals
| ATEX marking | II 3D Ex tc IIIB T85°Dc IP5X X |
|---|---|
| Note on ATEX marking | only in conjunction with the impact protection housing |
| EMC | EN 50295 |
| MTTF[years] [years] | 404 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | yes |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.E |
Mechanical data
| Weight[g] [g] | 779.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 55 x 60 x 35 |
| Materials | housing: PBT orange; cover: PC black; Impact protection housing: stainless steel |
Displays / operating elements
| Display | operation 1 x LED, green function 1 x LED, yellow |
|---|---|
| operation | 1 x LED, green |
| function | 1 x LED, yellow |
Accessories
| Items supplied | socket head screws: 2 x (M5 x 35 mm) Impact protection housing Mounting plate: 1 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: stainless steel |
|---|
Electrical connection - socket
| Connector | 1 x M12; coding: A; Moulded body: stainless steel |
|---|
