IFM AC3255
AC3255
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in control cabinets
Simple and fast wiring by means of cage clamps
Particularly space-saving design
Clearly visible powerful LEDs for displaying operation, switching status and function
Double terminals for looping through the voltage supply
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | Installation in control cabinets |
Electrical data
| Operating voltage[V] [V] | 18...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 30 |
| Additional voltage supply[V] [V] | 20...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 1100; (AUX) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of relay outputs: 2 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AUX |
| Power supply[V] [V] | 18...30; (DC) |
| Max. total current rating of inputs[mA] [mA] | 1000 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Outputs
| Voltage range DC[V] [V] | 24 |
|---|---|
| Voltage range AC[V] [V] | 10...240 |
| Max. current load per output[mA] [mA] | 6000; (ohmic resistance) |
| Max. current load outputs total[A] [A] | 6; (ohmic resistance) |
| Number of relay outputs | 2 |
| Contact rating | 6 A; (max. 240 V AC / 24 V DC see diagram:: Contact rating normally open (NO): B300: 6000 cycles) |
| Short-circuit proof | no |
| Electrically separated | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...65 |
|---|---|
| Storage temperature[°C] [°C] | -25...75 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 62026-2 EN 61000-6-2 EN 61000-6-3 |
|---|---|
| MTTF[years] [years] | 320 |
| Notes | The device shall be supplied from an isolating source.; This voltage source must have a secondary UL-listed fuse (see enclosed sheet).; Alternatively, a class 2 power supply can be used to supply AUX. |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.A.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.E |
| Assignment of the data bits | data bit D0 D1 D2 D3 input I-1 I-2 I-3 I-4 Output O-1 O-2 - - |
| data bit | D0 |
| input | I-1 |
| Output | O-1 |
Mechanical data
| Weight[g] [g] | 183.85 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 123.2 x 25.4 x 108 |
| Materials | plastics; PC-GF20 |
Displays / operating elements
| Display | switching status LED, yellow I1...I4, O1...O2 operation LED, green AS-i, AUX errors LED, red |
|---|---|
| switching status | LED, yellow I1...I4, O1...O2 |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Accessories

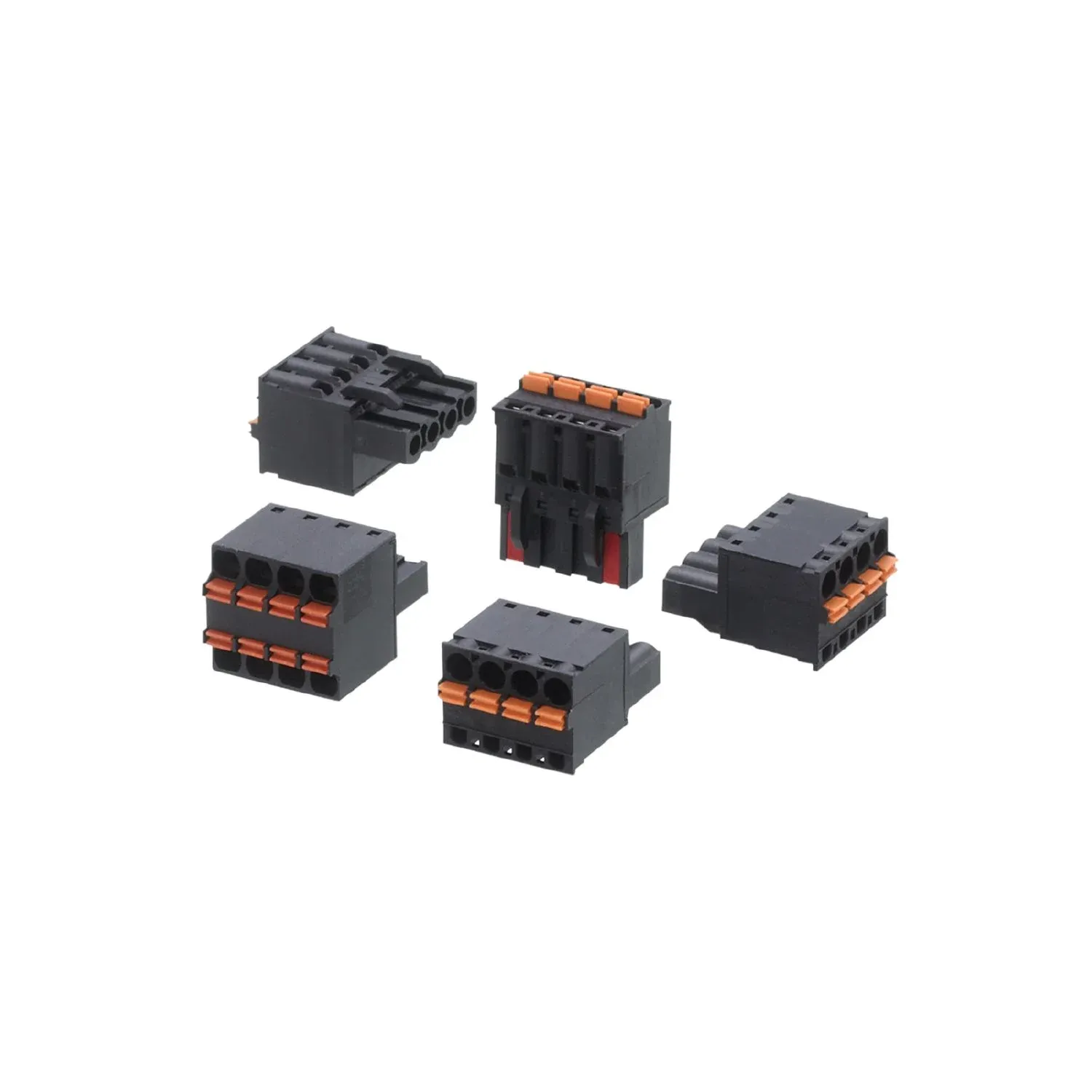

| Items supplied | cage clamps |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| pin headers | 4 x ; Spacing: 5.0 mm |
|---|
