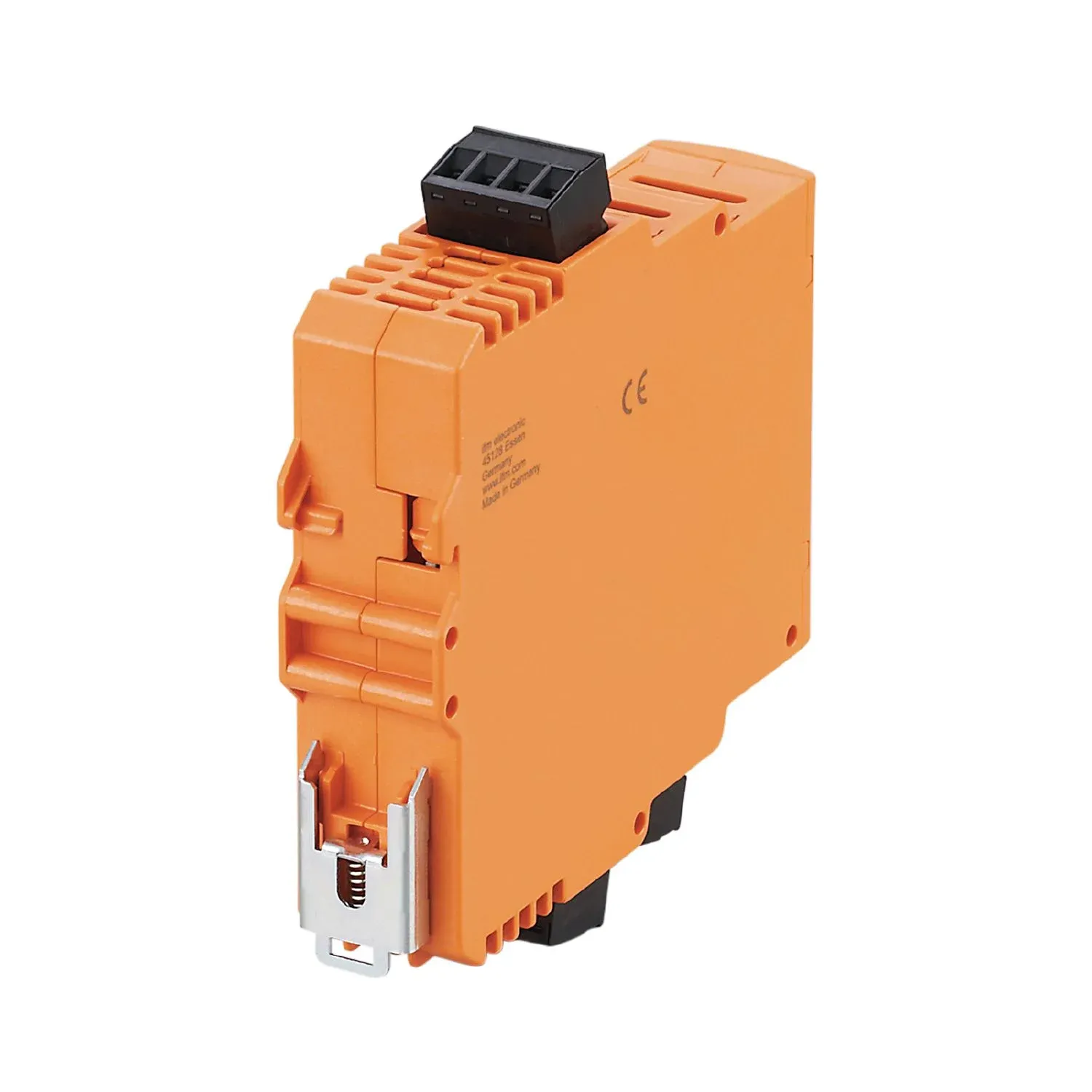

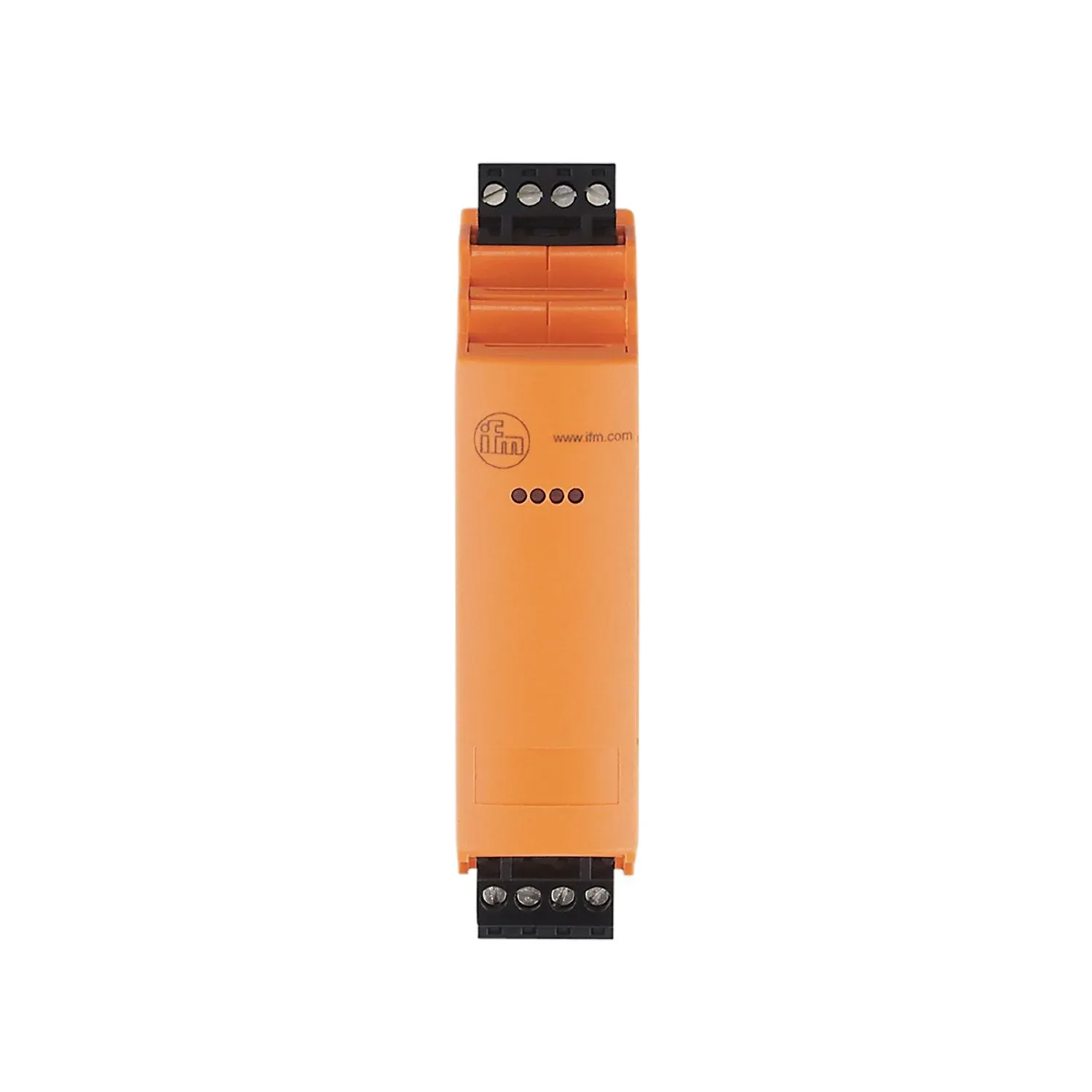

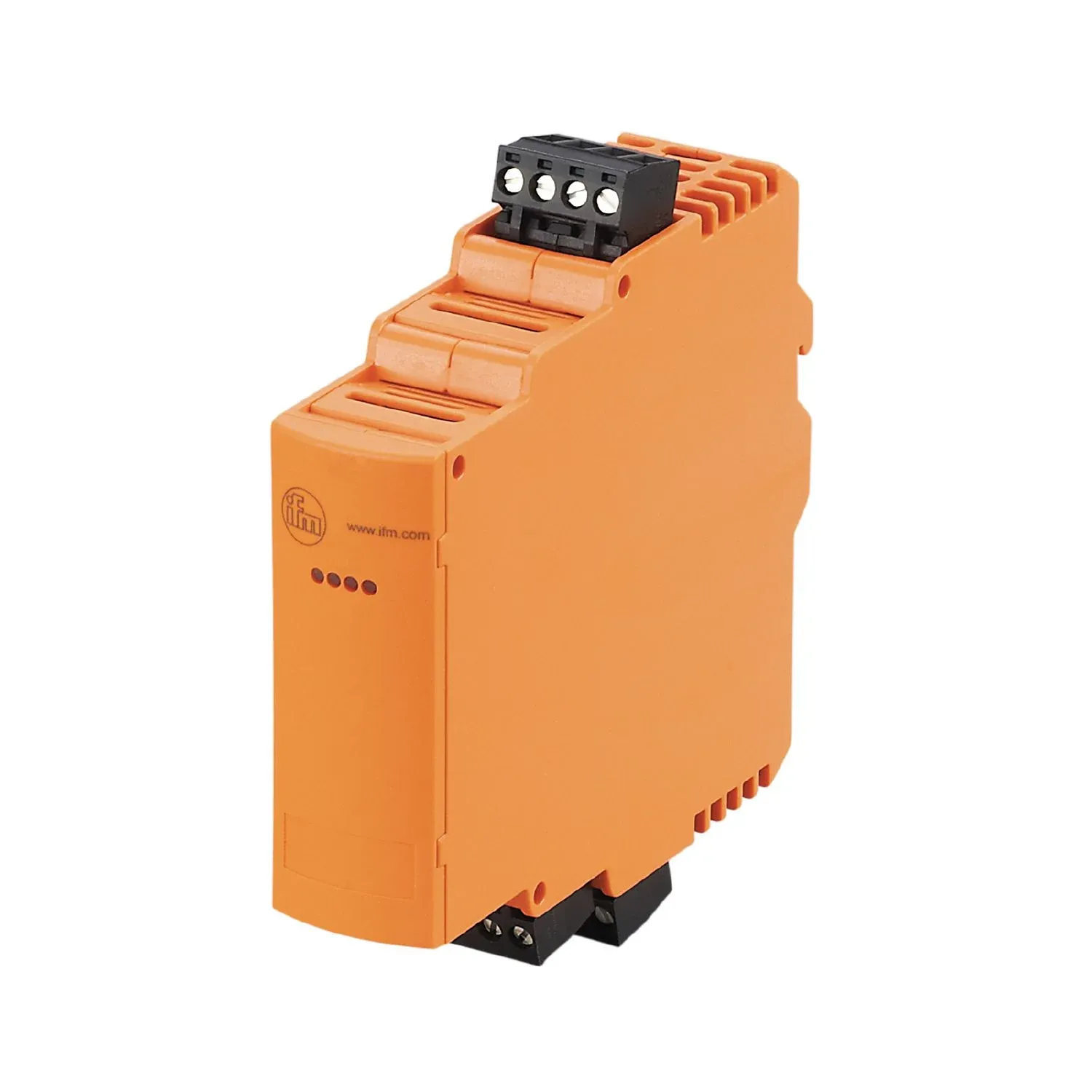

IFM AC3226
AC3226
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For extending the cable length in the AS-i network
For use in control cabinets
Simple and fast wiring by means of COMBICON connector with screw terminals
Particularly space-saving design
Clearly visible LEDs for indicating operation and fault
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | extension of the AS-i network by another 100 m |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4) |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 60; (per AS-i line) |
| Overvoltage category | II |
Outputs
| Electrical design | AS-i |
|---|---|
| Electrically separated | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Note on ambient temperature | > 3000 m: -25...67 °C |
| Storage temperature[°C] [°C] | -25...75 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 3000 |
| Protection | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 62026-2 |
|---|---|
| UL approval | Enclosure type Type 1 power supply Low Voltage / Limited Energy File number UL E205959 |
| Enclosure type | Type 1 |
| power supply | Low Voltage / Limited Energy |
| File number UL | E205959 |
Mechanical data
| Weight[g] [g] | 170 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 125.7 x 25.4 x 108 |
| Materials | PA 6.6 |
Displays / operating elements
| Display | operation 2 x LED, green function LED, yellow |
|---|---|
| operation | 2 x LED, green |
| function | LED, yellow |
Accessories
| Items supplied | COMBICON connectors Link for bus termination |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
