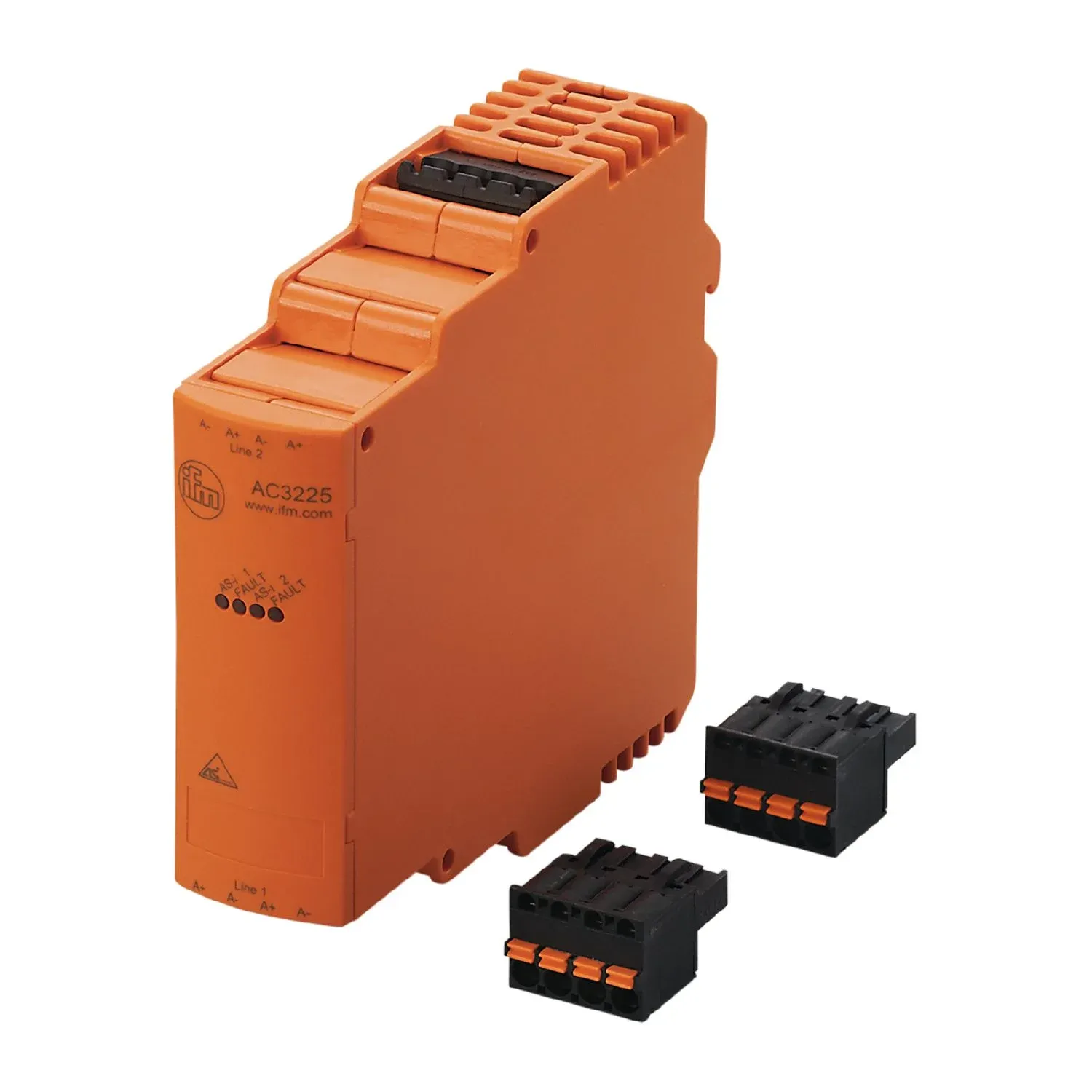

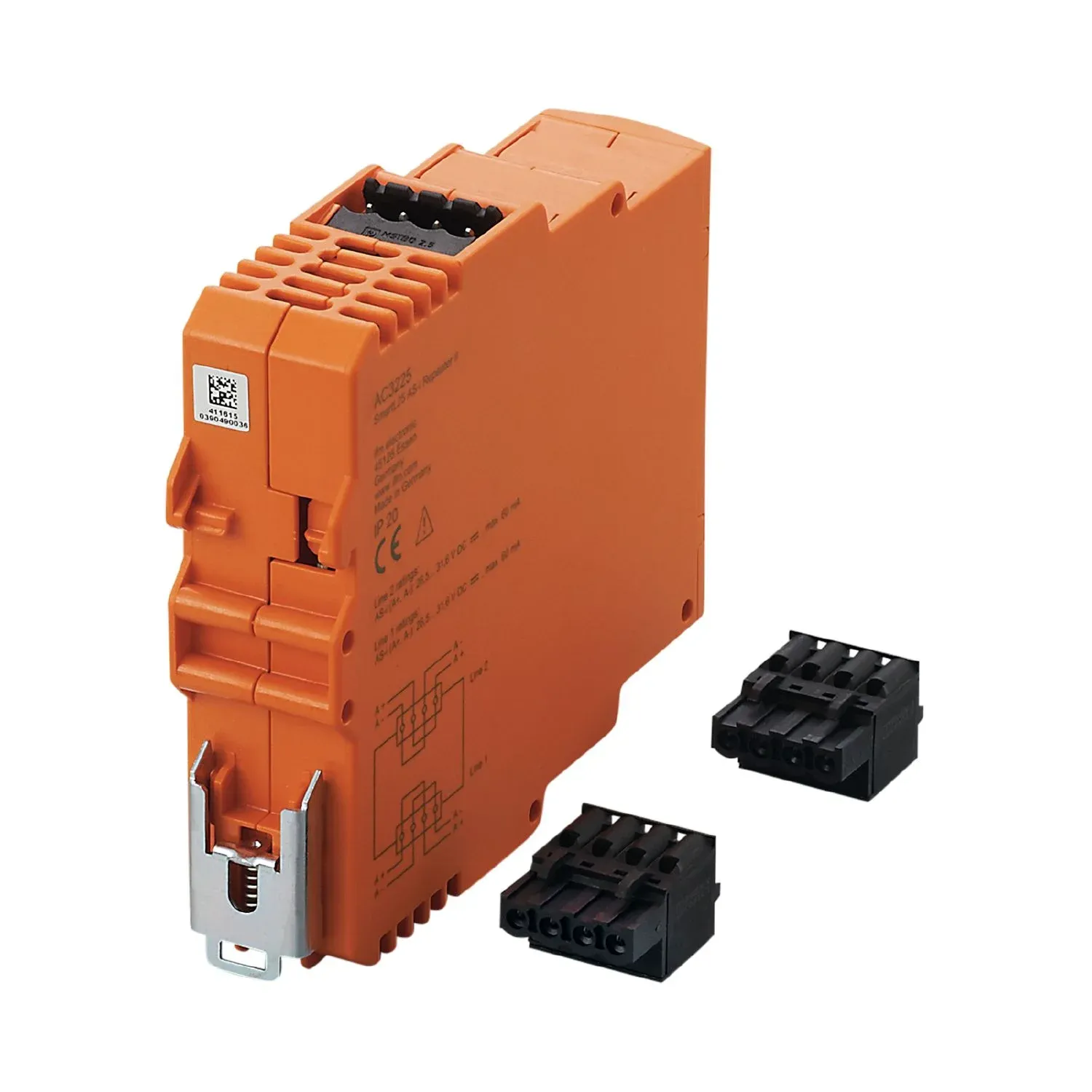

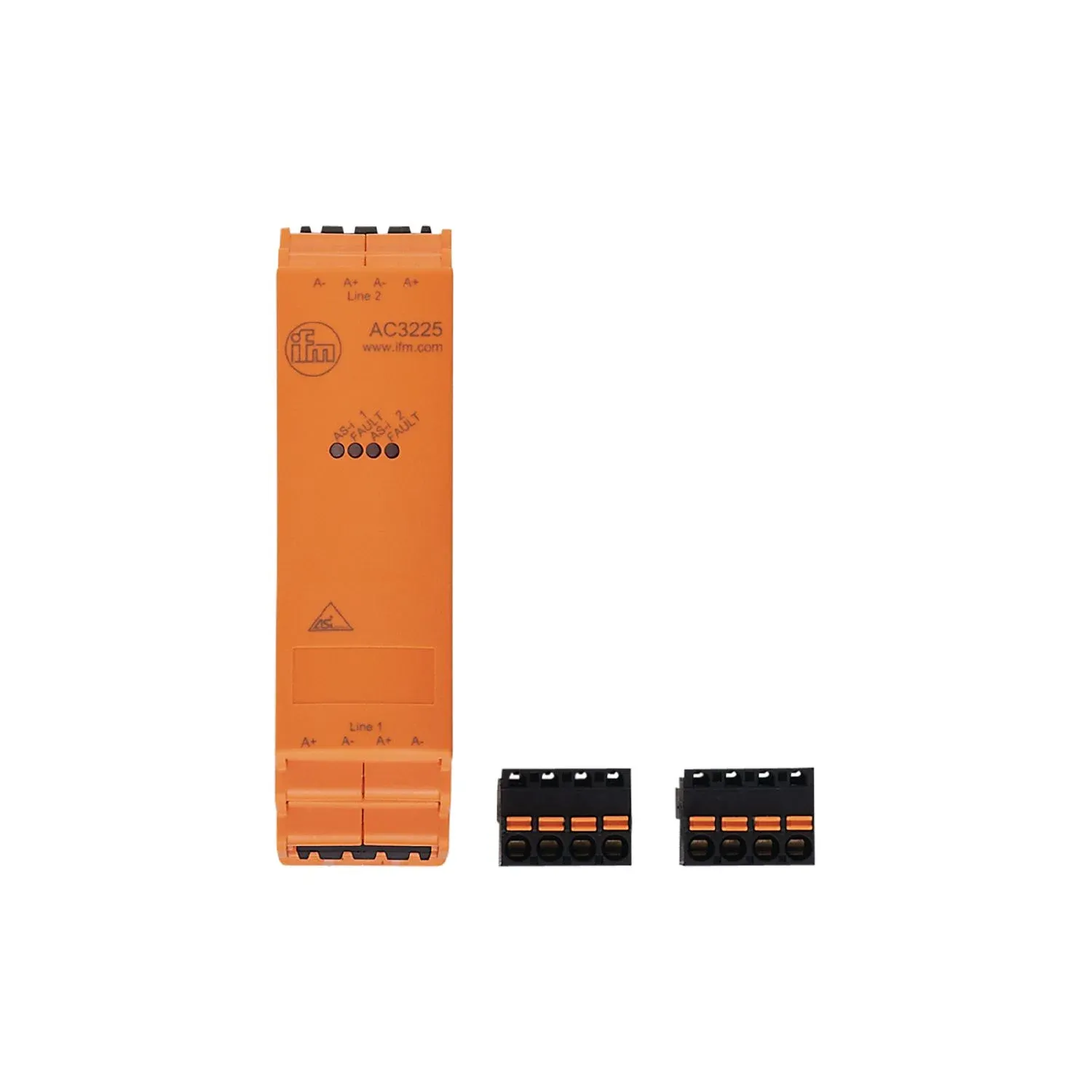

IFM AC3225
AC3225
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For extending the cable length in the AS-i network
For use in control cabinets
Simple and fast wiring by means of COMBICON connector with screw terminals
Particularly space-saving design
Clearly visible LEDs for indicating operation and fault
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | extension of the AS-i network by another 100 m |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 60; (per AS-i line) |
| Undervoltage monitoring | no |
Outputs
| Electrical design | AS-i |
|---|---|
| Electrically separated | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...75 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 62026-2 |
|---|
Mechanical data
| Weight[g] [g] | 154 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 125.7 x 25.4 x 108 |
| Materials | PC-GF20 |
Displays / operating elements
| Display | operation 2 x LED, green short circuit 2 x LED, red |
|---|---|
| operation | 2 x LED, green |
| short circuit | 2 x LED, red |
Accessories
| Items supplied | COMBICON connectors |
|---|
Remarks
| Remarks | The AS-i extender takes no slave address. The total number of slaves per master string remains unchanged. No parameter setting necessary. |
|---|---|
| Pack quantity | 1 pcs. |
