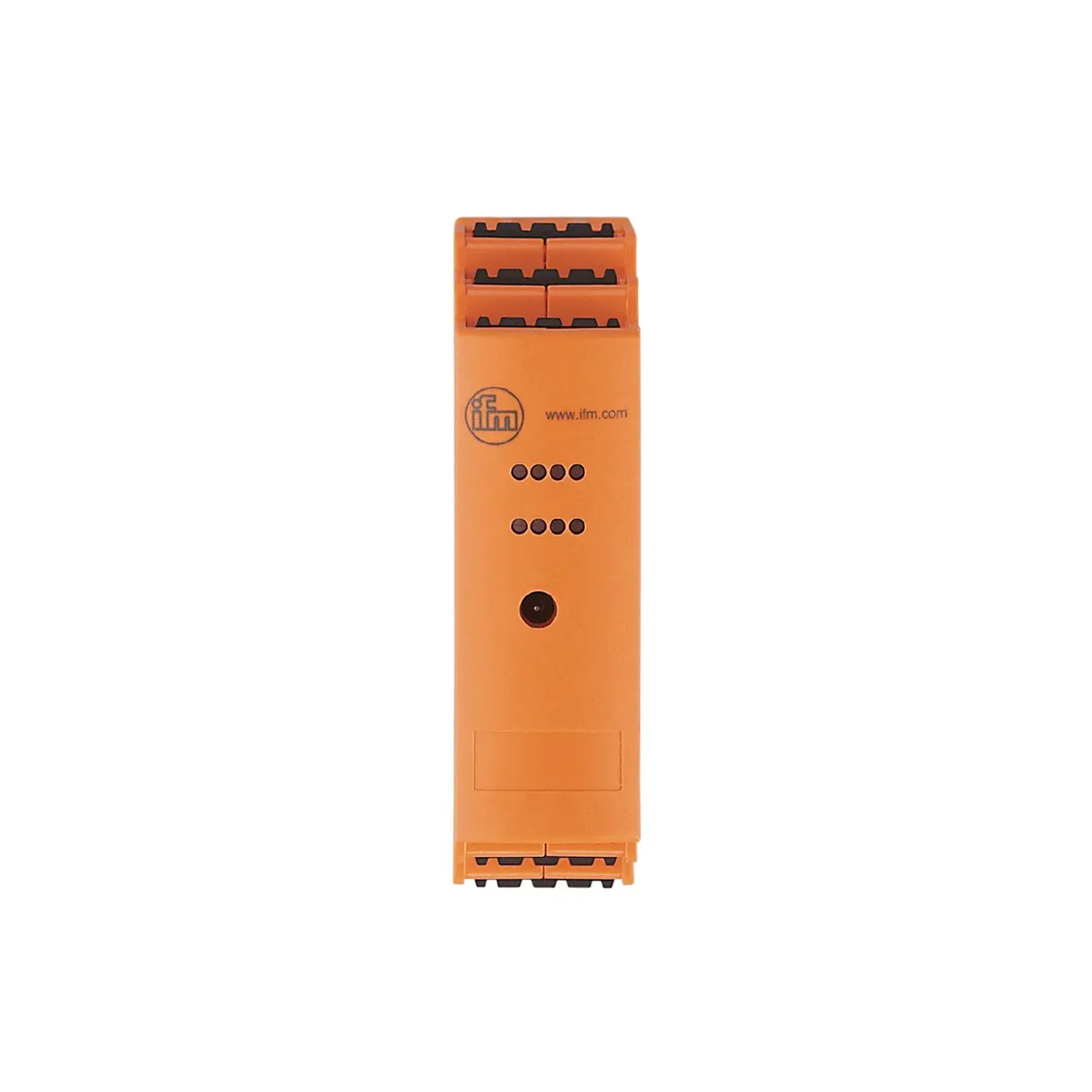

IFM AC3222
AC3222
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in control cabinets
Simple and fast wiring by means of cage clamps
Particularly space-saving design
Clearly visible powerful LEDs for displaying operation, switching status and function
Specification
Product characteristics
| Number of inputs and outputs | Number of Pt100 inputs: 4 |
|---|---|
| Measuring range[°C] [°C] | -200...850 |
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | Installation in control cabinets |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 80 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of Pt100 inputs: 4 |
|---|
Inputs
| Number of Pt100 inputs | 4 |
|---|---|
| Sensor supply of the inputs | AS-i |
| Number of analogue inputs | connection of 2- and 4-wire sensors |
| Analogue inputs protected against short circuits | yes |
| Resolution of analogue input | 16 bit / 0.1 °C |
Measuring/setting range
| Measuring range[°C] [°C] | -200...850 |
|---|
Accuracy / deviations
| Accuracy | ± 0.2 °C (-200 °C)...± 2 °C (800 °C) |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.E |
| AS-i certificate | 129901 |
Mechanical data
| Weight[g] [g] | 195.55 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 126 x 25.4 x 108 |
| Materials | PC-GF20 |
Displays / operating elements
| Display | analogue signal LED, yellow channels AI1...AI4 operation LED, green AS-i errors LED, red |
|---|---|
| analogue signal | LED, yellow channels AI1...AI4 |
| operation | LED, green AS-i |
| errors | LED, red |
Accessories
| Items supplied | COMBICON connectors |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| pin headers | 4 x ; Spacing: 5.0 mm |
|---|
