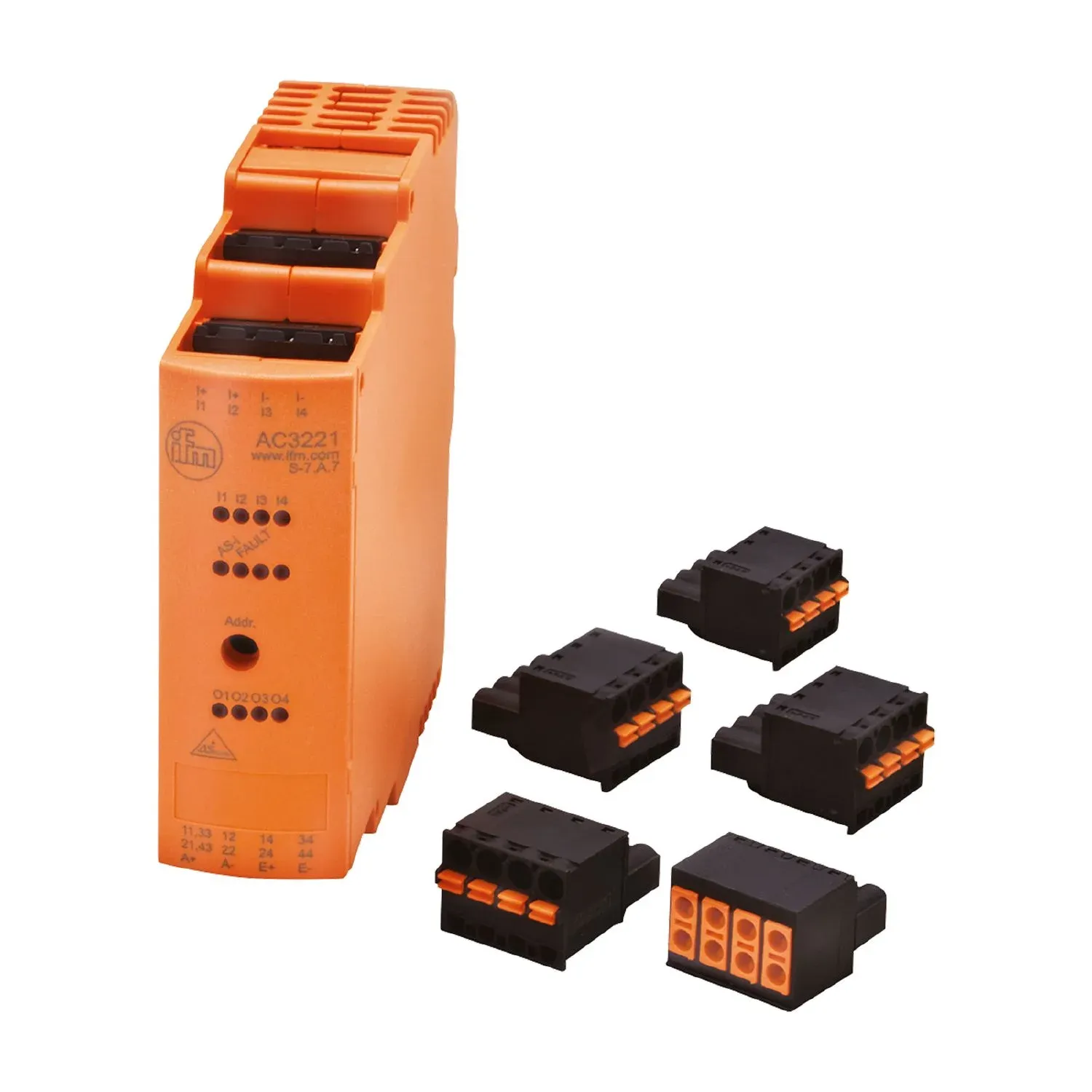

IFM AC3220 - Image 1

Fast delivery within 72 Hours

IFM AC3220

AC3220

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

For use in control cabinets
Simple and fast wiring by means of cage clamps
Particularly space-saving design
Double terminals for looping through the voltage supply
Clearly visible powerful LEDs for displaying operation, switching status and function

Specification

Application

Designhousing for DIN rail mounting, only for operation with AS-i masters with the profile M4
ApplicationInstallation in control cabinets

Electrical data

Operating voltage[V] [V]26.5...31.6 DC
Max. current consumption from AS-i[mA] [mA]300
Integrated watchdogyes

Inputs / outputs

Number of inputs and outputsNumber of digital inputs: 4; Number of relay outputs: 4

Inputs

Number of digital inputs4
Input circuit of digital inputsPNP; (type 2 according to IEC 61131-2)
Sensor supply of the inputsAS-i
Power supply[V] [V]18...30; (DC)
Max. total current rating of inputs[mA] [mA]200
Input current High[mA] [mA]6...10
Input current Low[mA] [mA]0...2
Switching level high[V] [V]> 11
Digital inputs protected against short circuitsyes

Outputs

Voltage range DC[V] [V]24; (The outputs O1 + O3 and O2 + O4 must be supplied in pairs with the same voltage. 2 x 24 V DC)
Voltage range AC[V] [V]10...240; (The outputs O1 + O3 and O2 + O4 must be supplied in pairs with the same voltage. 2 x 240 V AC)
Max. current load per output[mA] [mA]6000; (ohmic resistance)
Max. current load outputs total[A] [A]24; (ohmic resistance)
Overall current rating for outputs (UL)[A] [A]6; (ohmic resistance)
Number of relay outputs4
Contact rating6 A; (max. 240 V AC / 24 V DC see diagram:: Contact rating normally open (NO): B300: 6000 cycles)
Short-circuit proofno
Electrically separatedyes

Operating conditions

Ambient temperature[°C] [°C]-25...65
Note on ambient temperaturethe derating of the current load indicated in the operating instructions is to be taken into account at the following ambient temperature: > 55 °C
Storage temperature[°C] [°C]-25...75
Max. relative air humidity[%] [%]90; (non condensing)
Max. height above sea level[m] [m]2000
ProtectionIP 20
Protection rating terminalsIP 20
Pollution degree2

Tests / approvals

EMCEN 62026-2
EN 61000-6-2
EN 61000-6-3
MTTF[years] [years]295

AS-i classification

AS-i version3.0
AS-i addressingaddressing socket
Extended addressing modeyes
AS-i master profileM4
AS-i profileS-7.A.7
AS-i I/O configuration[hex] [hex]7
AS-i ID code[hex] [hex]A.7
AS-i ID1 code[hex] [hex]7; (fixed)
AS-i certificate124301
Assignment of the data bitsdata bit
D0
D1
D2
D3
input
I-1
I-2
I-3
I-4
Output
O-1
O-2
O-3
O-4
data bitD0
inputI-1
OutputO-1

Mechanical data

Weight[g] [g]216.05
Housingrectangular
Type of mountingmounting on DIN rail; (TH35 (EN 60715))
Dimensions[mm] [mm]123.2 x 25.4 x 108
Materialsplastics; PC-GF20

Displays / operating elements

Displayswitching status
LED, yellow I1...I4, O1...O4
operation
LED, green AS-i
errors
LED, red
switching statusLED, yellow I1...I4, O1...O4
operationLED, green AS-i
errorsLED, red

Accessories

Items suppliedcage clamps

Remarks

RemarksDo not connect any of the following points to an external potential:
I-, I+, I1, I2, I3, I4
The connections are electrically connected with the AS-i cable.
Pack quantity1 pcs.

Electrical connection

pin headers4 x ; Spacing: 5.0 mm
