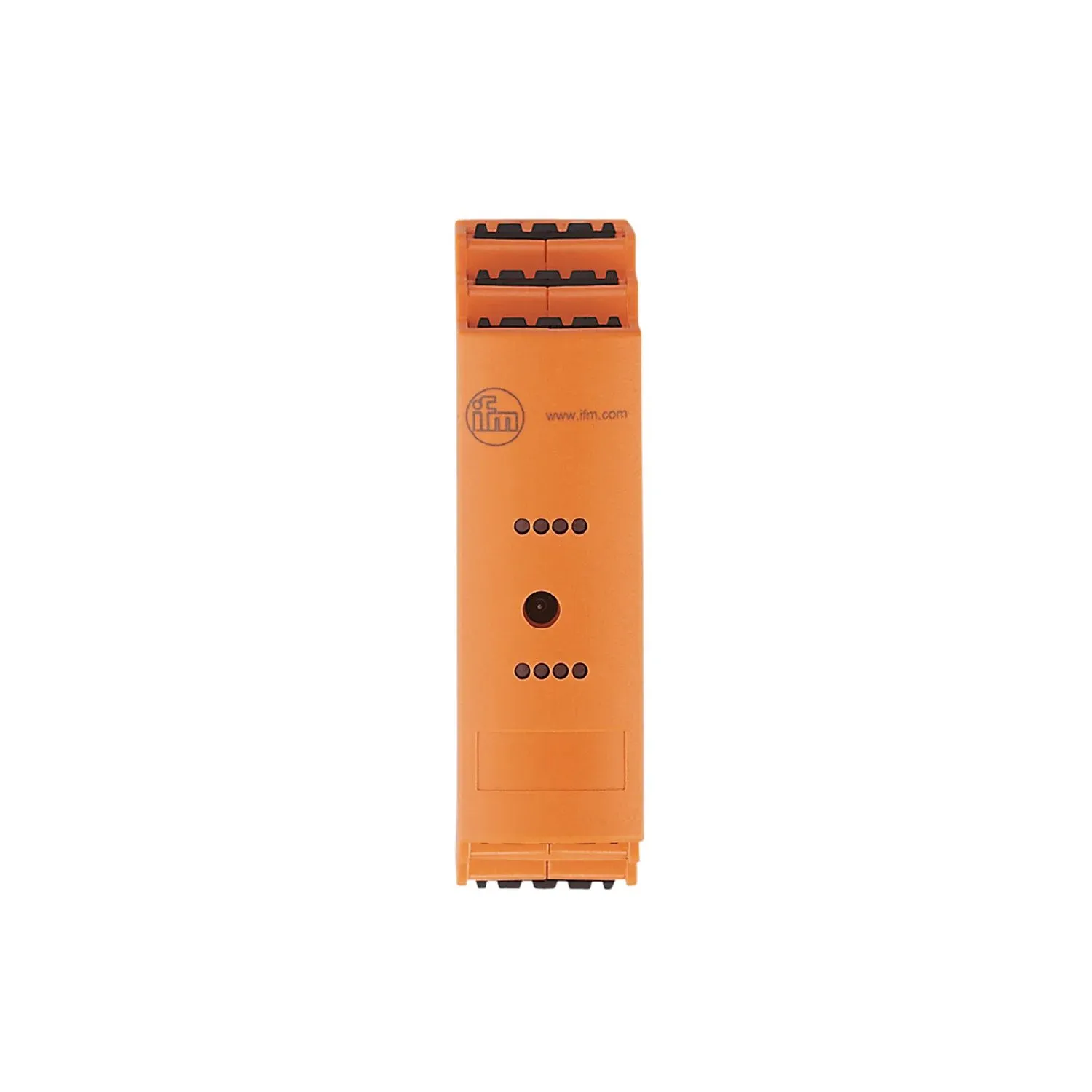

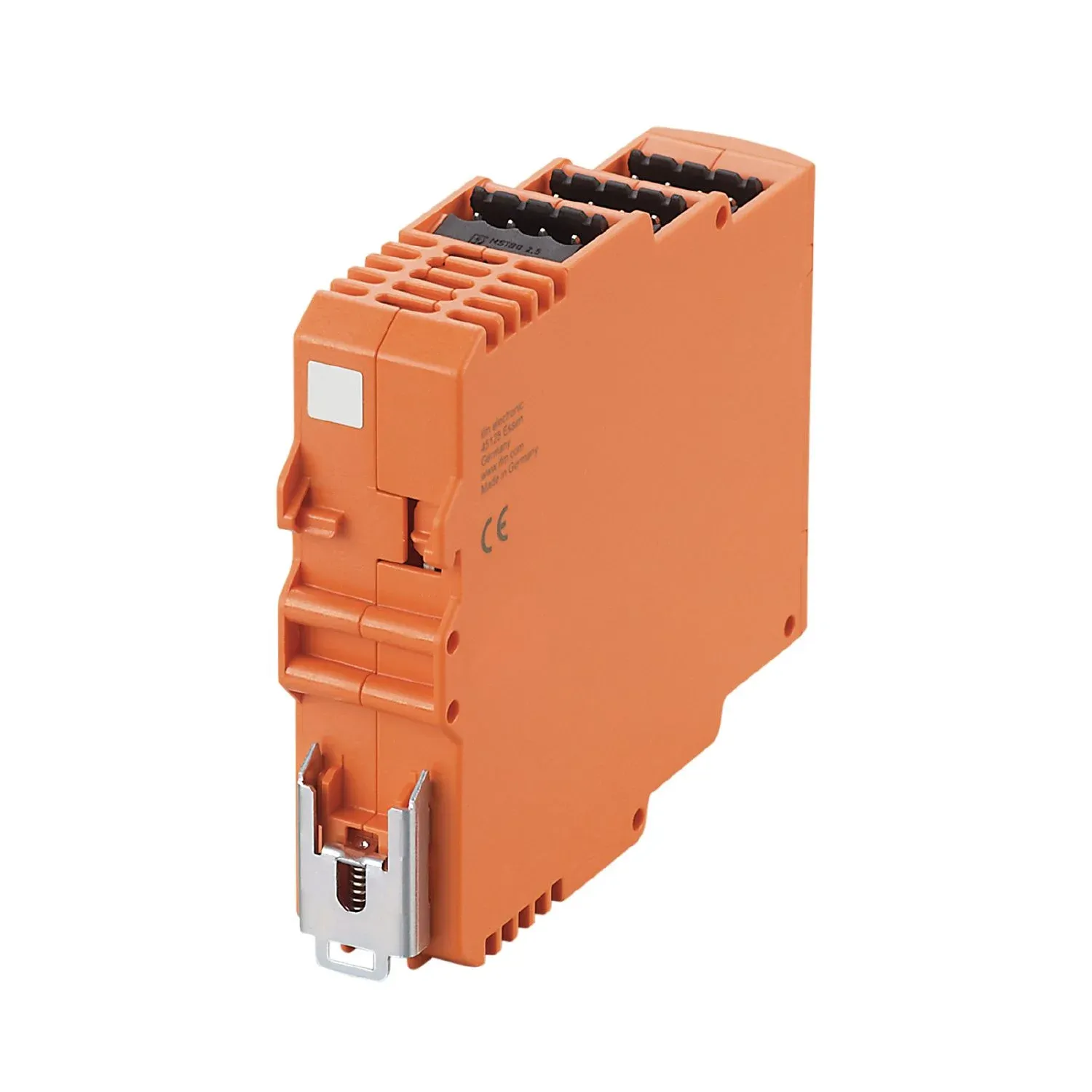

IFM AC3218
AC3218
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in control cabinets
Simple and fast wiring by means of cage clamps
Particularly space-saving design
Clearly visible powerful LEDs for displaying operation, switching status and function
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | Installation in control cabinets |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 157 |
| Reverse polarity protection | yes |
| Additional voltage supply[V] [V] | 20...30 DC; (AUX) |
| Additional voltage supply | optional |
| Max. current consumption from additional supply[mA] [mA] | 550; (AUX) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 4 |
|---|
Outputs
| Number of analogue outputs | 4; (connection of 2-wire or 4-wire actuators) |
|---|---|
| Analogue current output[mA] [mA] | 0...20 |
| Max. load[Ω] [Ω] | 600 |
| Max. voltage drop across load for nominal current[V] [V] | 10 |
| Overload protection | yes |
| Resolution of analogue output | 16 (1 bit = 1 µA) |
| Actuator supply outputs | AS-i / AUX |
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...75 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 61000-6-2 EN 61000-6-4 |
|---|---|
| UL approval | power supply Class 2 |
| power supply | Class 2 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.6 |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.6 |
Mechanical data
| Weight[g] [g] | 202.1 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 126 x 25.4 x 108 |
| Materials | PC-GF20 |
Displays / operating elements
| Display | analogue signal LED, yellow channels AO1...AO4 diagnosis LED, yellow operation LED, green AS-i, AUX errors LED, red |
|---|---|
| analogue signal | LED, yellow channels AO1...AO4 |
| diagnosis | LED, yellow |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Accessories
| Items supplied | COMBICON connectors |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| pin headers | 4 x ; Spacing: 5.0 mm |
|---|
