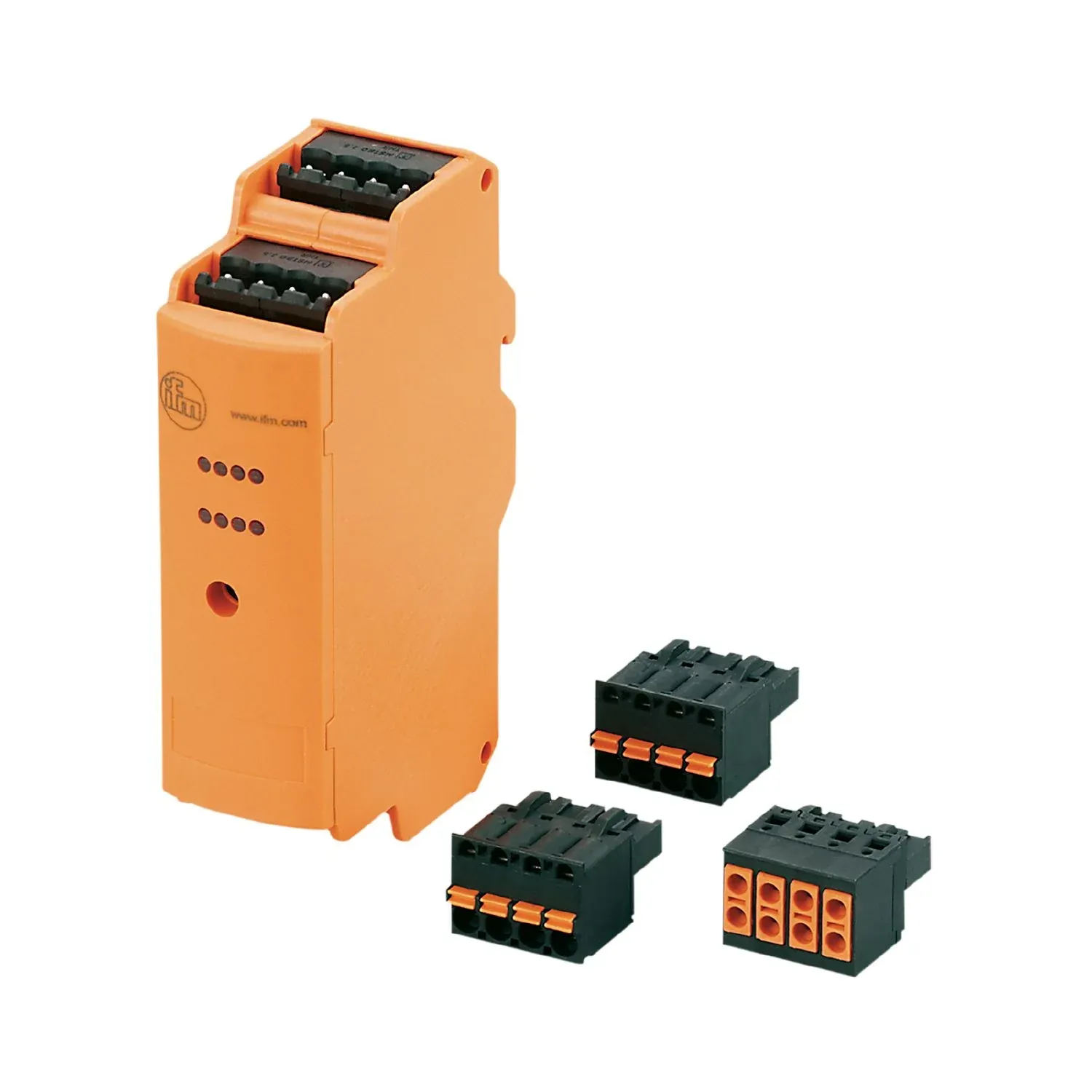

IFM AC3202
AC3202
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For use in control cabinets
Simple and fast wiring by means of cage clamps
Particularly space-saving design
Double terminals for looping through the voltage supply
Clearly visible powerful LEDs for displaying operation, switching status and function
Specification
Application
| Design | housing for DIN rail mounting |
|---|---|
| Application | Installation in control cabinets |
Electrical data
| Operating voltage[V] [V] | 18...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 250 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 18...30; (DC) |
| Max. total current rating of inputs[mA] [mA] | 200 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...75 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 20 |
| Protection rating terminals | IP 20 |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 62026-2 EN 61000-6-2 EN 61000-6-3 |
|---|---|
| MTTF[years] [years] | 437 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | addressing socket |
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-0.A.E |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 124402 |
| Assignment of the data bits | data bit D0 D1 D2 D3 input I-1 I-2 I-3 I-4 |
| data bit | D0 |
| input | I-1 |
Mechanical data
| Weight[g] [g] | 126.7 |
|---|---|
| Housing | rectangular |
| Type of mounting | mounting on DIN rail; (TH35 (EN 60715)) |
| Dimensions[mm] [mm] | 129.3 x 25.4 x 59.3 |
| Materials | plastics; PC-GF20 |
Displays / operating elements
| Display | switching status LED, yellow I1...I4 operation LED, green AS-i errors LED, red |
|---|---|
| switching status | LED, yellow I1...I4 |
| operation | LED, green AS-i |
| errors | LED, red |
Accessories
| Items supplied | cage clamps |
|---|
Remarks
| Remarks | Do not connect any of the following points to an external potential: I-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| pin headers | 4 x ; Spacing: 5.0 mm |
|---|
