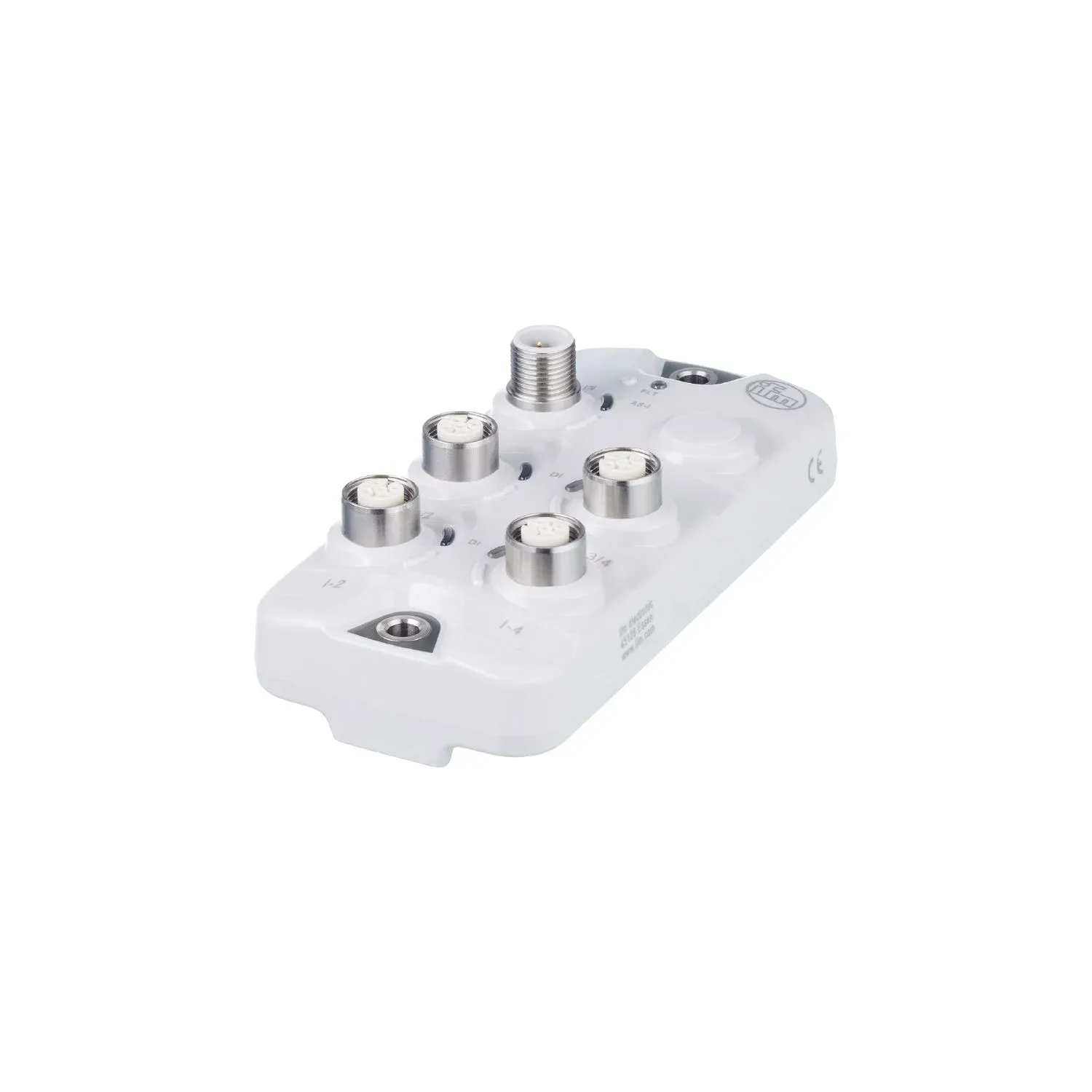

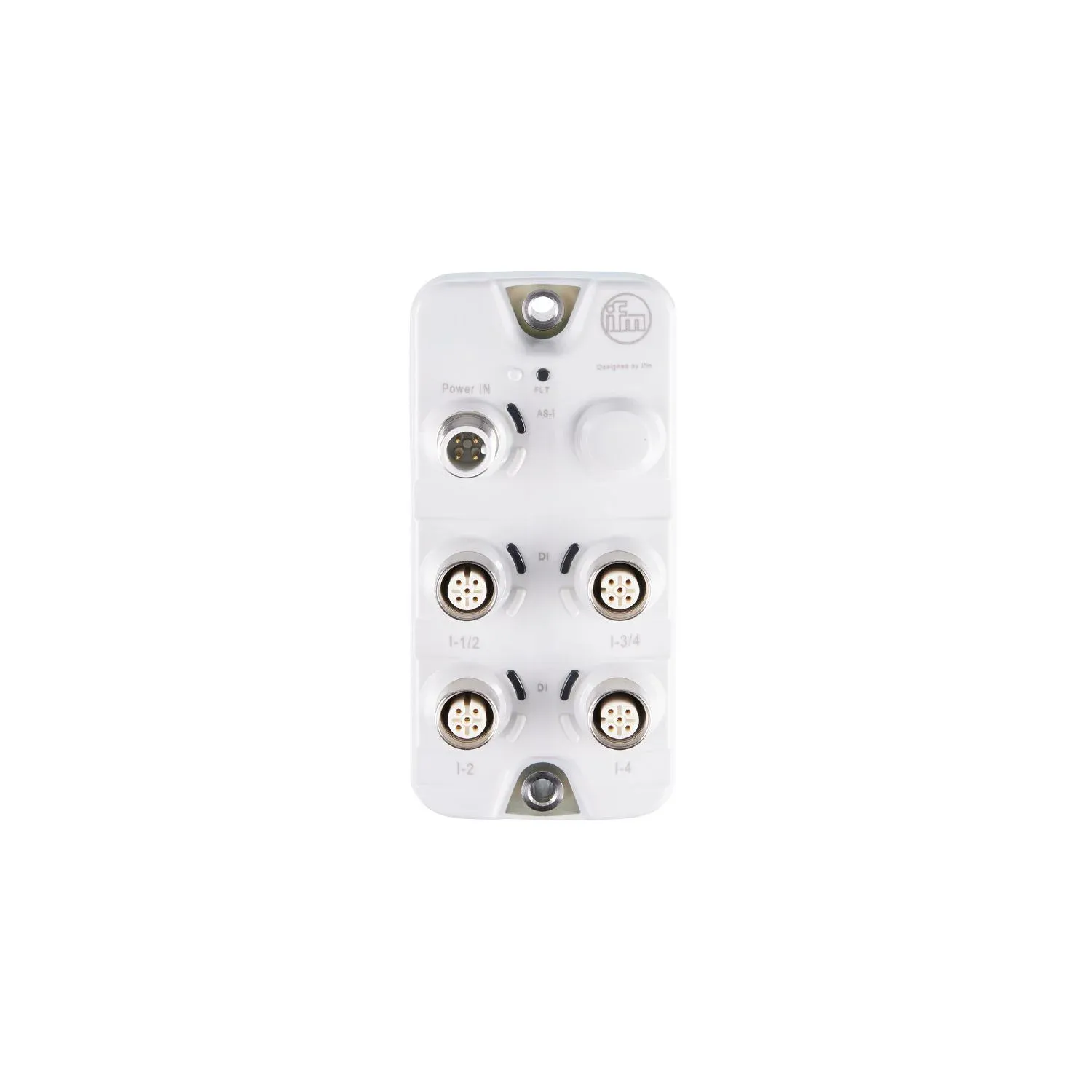

IFM AC2954
AC2954
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust design thanks to full potting
Clearly visible LEDs for displaying operation, switching status and error
Large operating temperature range and high protection rating
For use in hygienic and wet areas in the food industry
Specification
Application
| Application | hygienic and wet areas in the food industry |
|---|
Electrical data
| Operating voltage[V] [V] | 18...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 250 |
| Protection class | III |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 18...30 |
| Max. total current rating of inputs[mA] [mA] | 180 |
| Input current High[mA] [mA] | 2...4 |
| Input current Low[mA] [mA] | 0...1.5 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 62026-2 EN 61000-6-2 EN 61000-6-3 IEC 61131-2 Type 3 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-6 DIN EN 60068-2-64 |
| MTTF[years] [years] | 233 |
| UL approval | File number UL E205959 |
| File number UL | E205959 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | yes |
| AS-i profile | S-0.A.E |
| AS-i ID code[hex] [hex] | A.E |
| Assignment of the data bits | data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1/2 I-1/2 / I-2 I-3/4 I-3/4 / I-4 pin 4 2 4 4 2 4 |
| data bit | D0 |
| input | 1 |
| socket | I-1/2 |
| pin | 4 |
Mechanical data
| Weight[g] [g] | 234.1 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 124 x 59.3 x 38.4 |
| Materials | housing: PA grey; plugs and sockets: stainless steel (316L/1.4404); Sealing: EPDM |
Displays / operating elements
| Display | switching status LED, yellow IN1...IN4 operation LED, green AS-i error LED, red |
|---|---|
| switching status | LED, yellow IN1...IN4 |
| operation | LED, green AS-i |
| error | LED, red |
Remarks
| Remarks | Do not connect any of the following points to an external potential: L-; L+; IN1; IN2; IN3; IN4 The connections are electrically connected with the AS-i cable. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - Power IN
| Connector | M12; coding: A |
|---|
Electrical connection - Inputs
| Connector | M12 |
|---|
