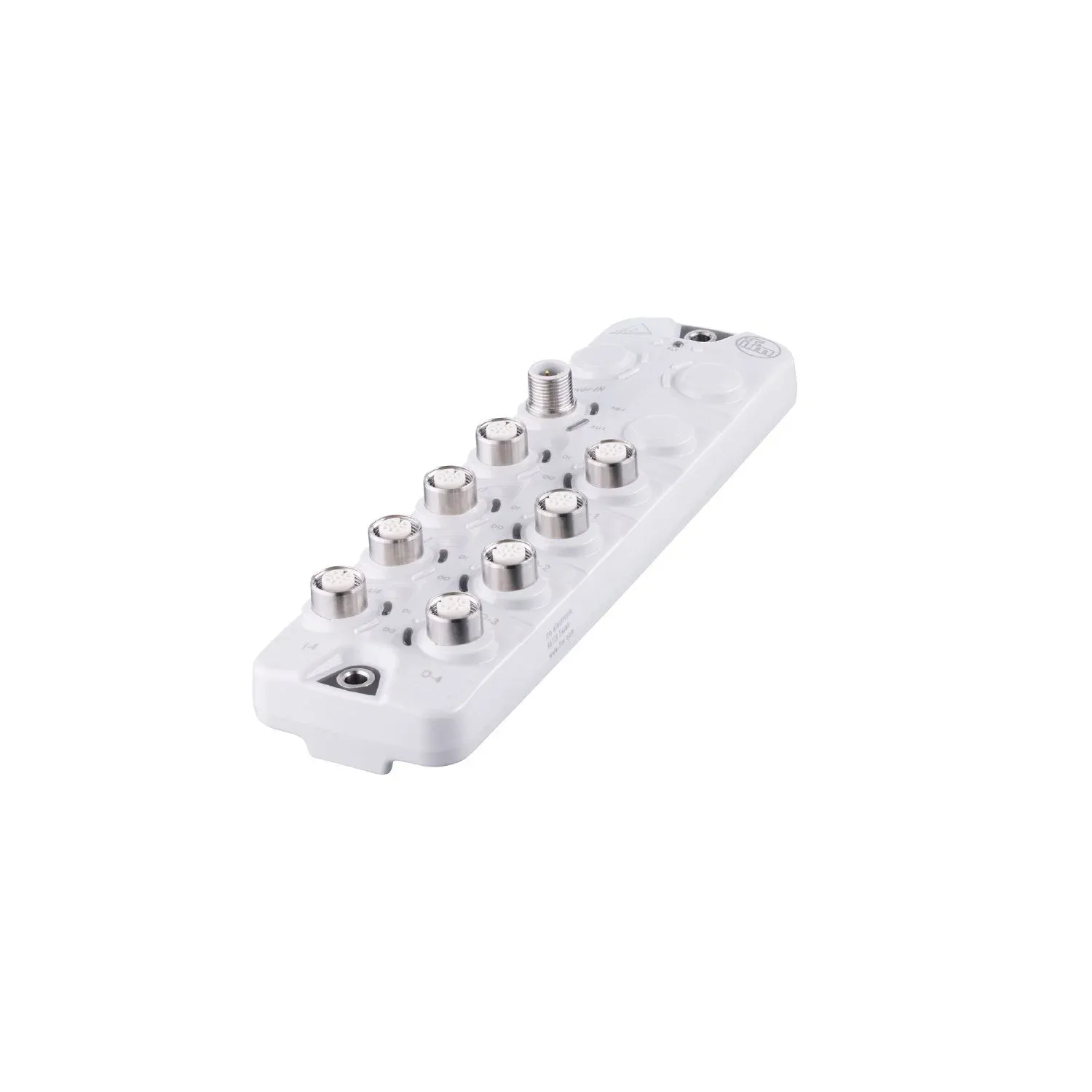

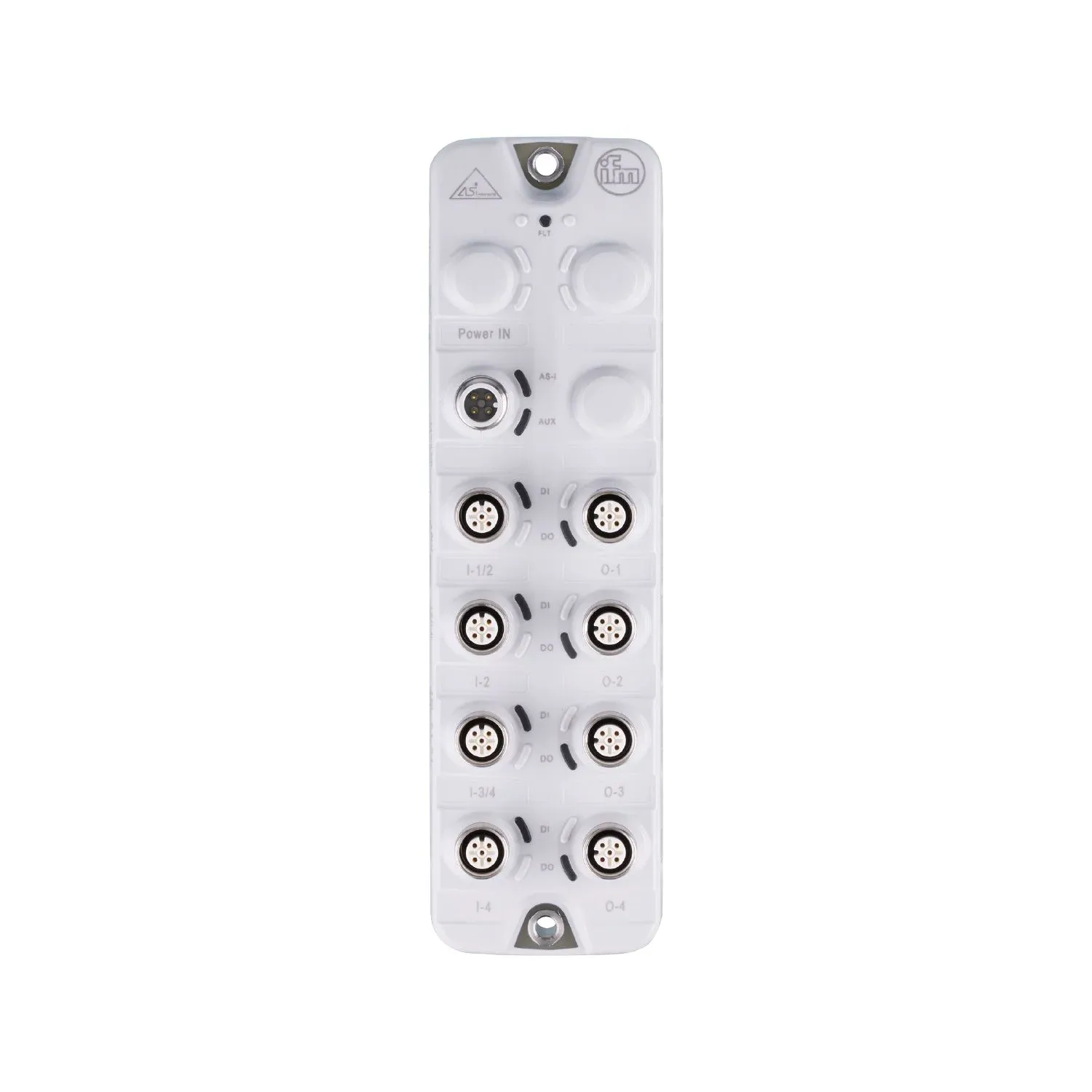

IFM AC2953
IFM AC2953 - Image 2
IFM AC2953 - Image 3
IFM AC2953 - Image 4

Fast delivery within 72 Hours

IFM AC2953

AC2953

Request for Quote

Add to compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Robust design thanks to full potting
Clearly visible LEDs for displaying operation, switching status and error
Large operating temperature range and high protection rating
For use in hygienic and wet areas in the food industry

Specification

Application

Applicationhygienic and wet areas in the food industry

Electrical data

Operating voltage[V] [V]18...31.6 DC
Max. current consumption from AS-i[mA] [mA]250
Protection classIII
Additional voltage supply[V] [V]15...30 DC
Max. current consumption from additional supply[mA] [mA]3500; (AUX)
Integrated watchdogyes

Inputs / outputs

Number of inputs and outputsNumber of digital inputs: 4; Number of digital outputs: 4

Inputs

Number of digital inputs4
Input circuit of digital inputsPNP
Sensor supply of the inputsAS-i
Power supply[V] [V]18...30
Max. total current rating of inputs[mA] [mA]180
Input current High[mA] [mA]2...4
Input current Low[mA] [mA]0...1.5
Switching level high[V] [V]> 11
Digital inputs protected against short circuitsyes

Outputs

Number of digital outputs4
CircuitPNP
Voltage range DC[V] [V]15...30
Max. current load per output[mA] [mA]1000
Max. current load outputs total[A] [A]3.5
Short-circuit proofyes
Electrically separatedyes
Actuator supply outputsAUX

Operating conditions

Ambient temperature[°C] [°C]-25...60
Note on ambient temperature2000 m: -25...60 °C
3000 m: -25...56 °C
4000 m: -25...53 °C
Storage temperature[°C] [°C]-25...85
Max. relative air humidity[%] [%]90; (non condensing)
Max. height above sea level[m] [m]4000
ProtectionIP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K)
Pollution degree2
Chemical mediaISO 16750-5
HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1
AA
ISO 16750-5HLP, CC, DB, DC, DD, CA
NEMA 250 5.13.1AA

Tests / approvals

EMCEN 62026-2
EN 61000-6-2
EN 61000-6-3
IEC 61131-2 Type 3
Shock resistanceDIN EN 60068-2-27
Vibration resistanceDIN EN 60068-2-6
DIN EN 60068-2-64
MTTF[years] [years]123
UL approvalFile number UL
E205959
File number ULE205959

AS-i classification

AS-i version3.0
Extended addressing modeyes
AS-i profileS-7.A.7
AS-i I/O configuration[hex] [hex]7
AS-i ID code[hex] [hex]A.7
AS-i ID1 code[hex] [hex]7; (fixed)
Assignment of the data bitsdata bit
D0
D1
D2
D3
input
1
2
3
4
socket
I-1/2
I-1/2 / I-2
I-3/4
I-3/4 / I-4
pin
4
2 4
4
2 4
Output
1
2
3
4
socket
O-1
O-2
O-3
O-4
pin
4
4
4
4
data bitD0
input1
socketO-1
pin4
Output1

Mechanical data

Weight[g] [g]401.1
Housingrectangular
Type of mountingbackplane mounting
Dimensions[mm] [mm]208 x 59.3 x 38.4
Materialshousing: PA grey; plugs and sockets: stainless steel (316L/1.4404); Sealing: EPDM

Displays / operating elements

Displayswitching status
LED, yellow IN1...IN4; OUT1...OUT4
operation
LED, green AS-i, AUX
error
LED, red
switching statusLED, yellow IN1...IN4; OUT1...OUT4
operationLED, green AS-i, AUX
errorLED, red

Remarks

RemarksDo not connect any of the following points to an external potential:
L-; L+; IN1; IN2; IN3; IN4
The connections are electrically connected with the AS-i cable.
Pack quantity1 pcs.
