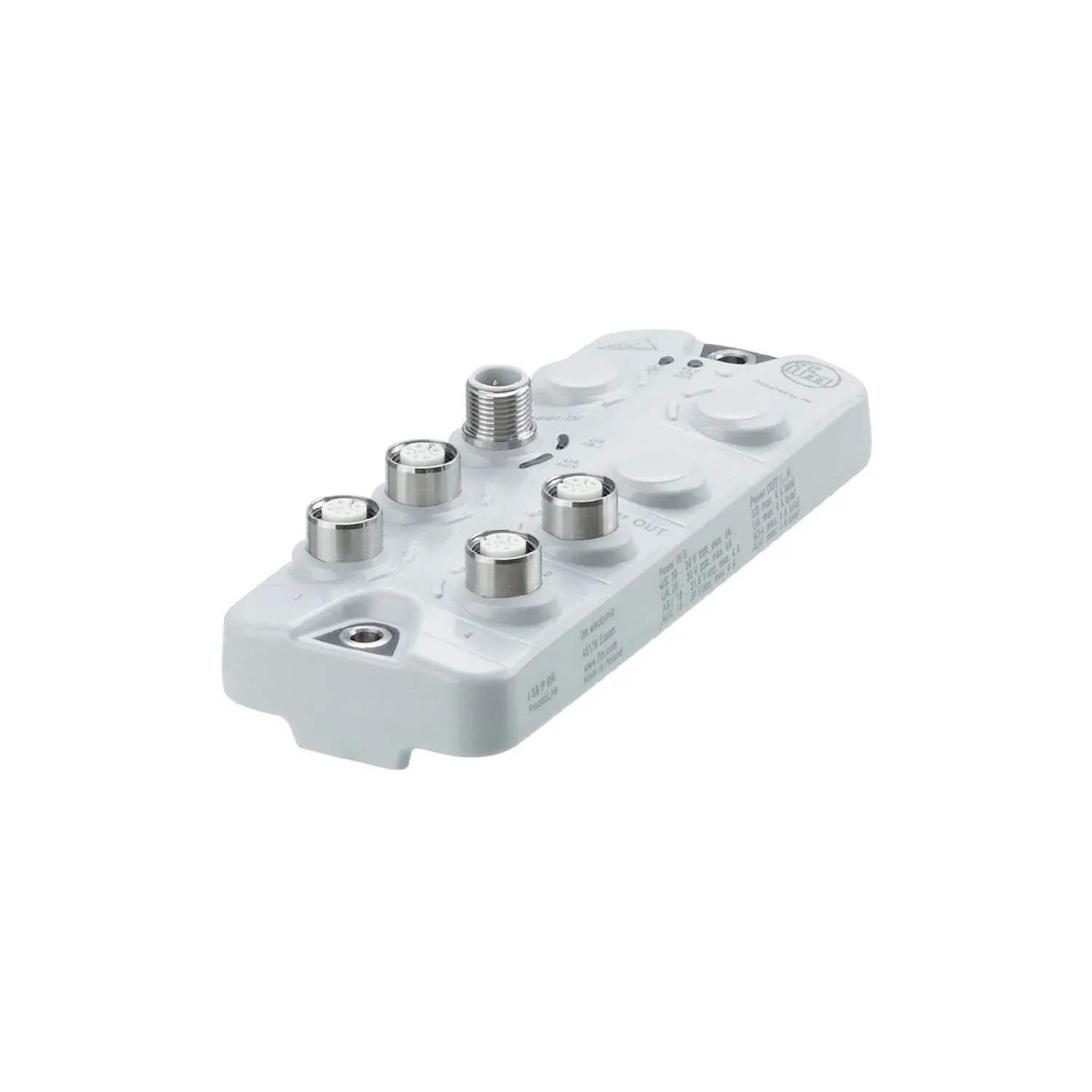

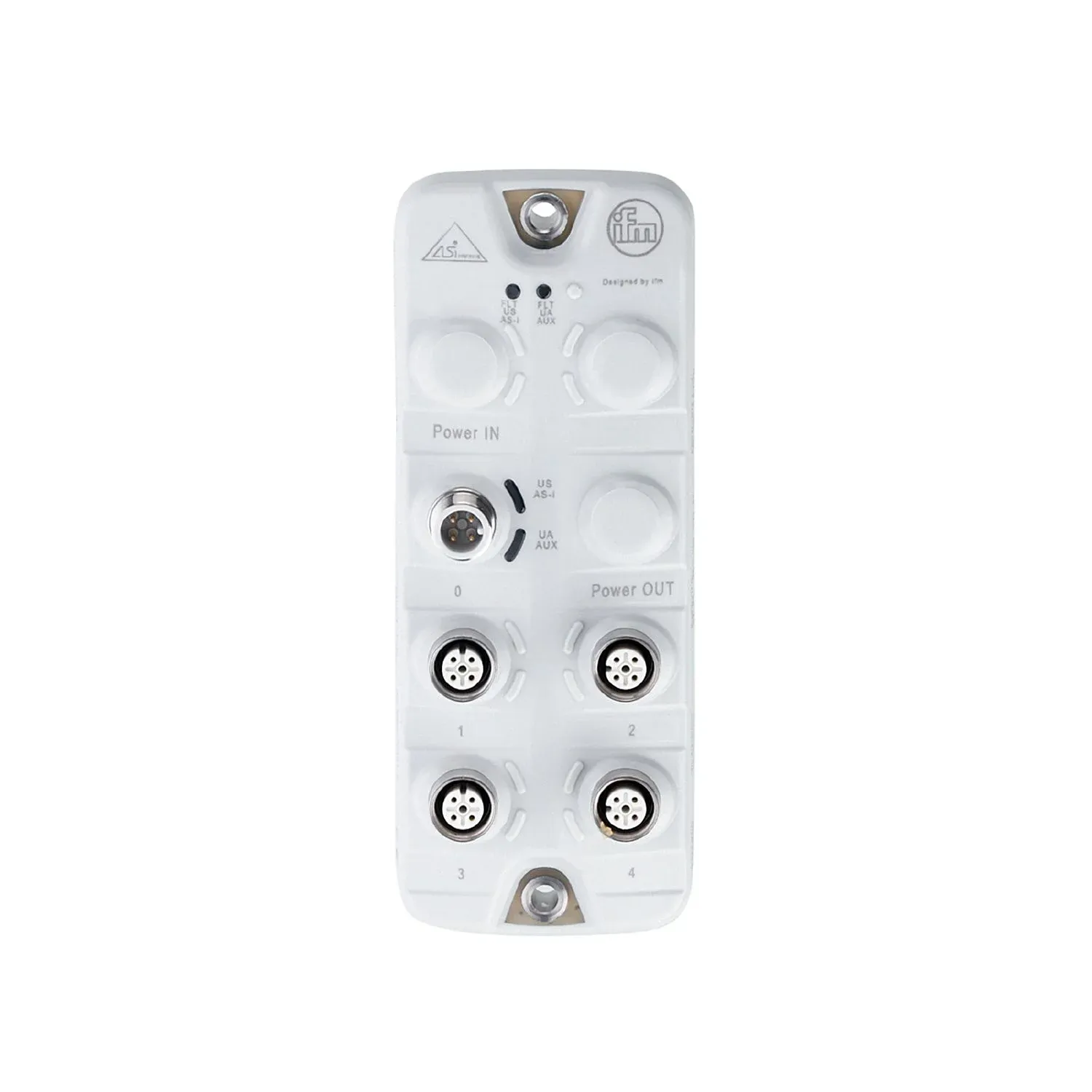

IFM AC2950
AC2950
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Robust design thanks to full potting
Clearly visible LEDs for displaying operation, switching status and error
Large operating temperature range and high protection rating
For use in hygienic and wet areas in the food industry
Specification
Application
| Design | AS-i oder IO-Link Spannungsverteiler |
|---|---|
| Application | hygienic and wet areas in the food industry |
Electrical data
| Protection class | III |
|---|---|
| Overcurrent detection | yes; (4400 mA ± 200 mA) |
| Operating voltage[V] [V] | 20...30 DC; (US) |
| Current consumption[mA] [mA] | 4000; (US) |
| Additional voltage supply[V] [V] | 20...30 DC; (UA) |
| Max. current consumption from additional supply[mA] [mA] | 4000; (UA) |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 4000 |
| Protection | IP 65; IP 66; IP 67; IP 69K; (operation with stainless steel protective caps: IP 69K) |
| Protection rating (NEMA 250) | 6P |
| Pollution degree | 2 |
| Chemical media | ISO 16750-5 HLP, CC, DB, DC, DD, CA NEMA 250 5.13.1 AA |
| ISO 16750-5 | HLP, CC, DB, DC, DD, CA |
| NEMA 250 5.13.1 | AA |
Tests / approvals
| EMC | EN 62026-2 IEC 61000-6-2 |
|---|---|
| Shock resistance | DIN EN 60068-2-27 |
| Vibration resistance | DIN EN 60068-2-64 DIN EN 60068-2-6 |
| MTTF[years] [years] | 379 |
Mechanical data
| Weight[g] [g] | 284.8 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 152 x 59.3 x 38.4 |
| Materials | housing: PA grey; plugs and sockets: stainless steel (316L/1.4404) |
Displays / operating elements
| Display | operation LED, green AS-i / AUX / US / UA fault LED, red |
|---|---|
| operation | LED, green AS-i / AUX / US / UA |
| fault | LED, red |
Electrical connection
| Module connection | M12 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - Power IN
| Connector | M12; coding: A; Tightening torque: 0.6...0.8 Nm |
|---|
Electrical connection - Power OUT
| Connector | M12; coding: A; Tightening torque: 0.6...0.8 Nm |
|---|
