Description

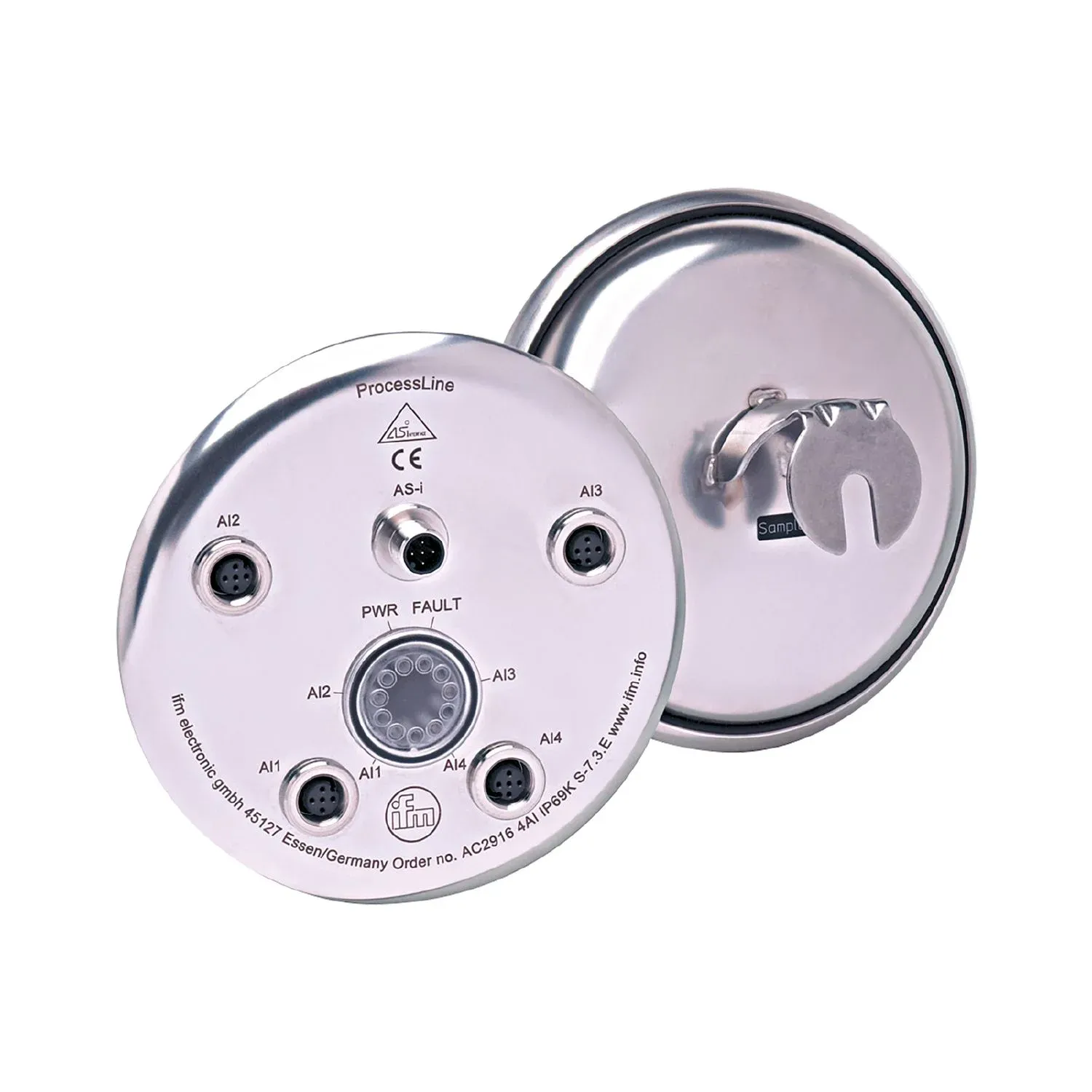

Specially for the use in wet areas of the food and beverage industry
Hygienic design without corners and edges
Resistant to high-pressure cleaning with aggressive cleaning agents
Clearly visible powerful LEDs for displaying operation, switching status and error
Specification
Application
| Application | hygienic and wet areas in the food industry |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 450 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 4 |
|---|
Inputs
| Sensor supply of the inputs | AS-i |
|---|---|
| Power supply[V] [V] | 18...30 |
| Number of analogue inputs | 4; (connection of 2- and 3-wire sensors) |
| Analogue input (current)[mA] [mA] | 4...20 |
| Max. voltage drop across load for nominal voltage[V] [V] | 10 |
| Resolution of analogue input | 1 bit = 1 µA |
| Precision analogue input[%] [%] | 0,5 |
Operating conditions
| Ambient temperature[°C] [°C] | -5...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 68; IP 69K |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 62026-2 EN 61000-6-2 |
|---|---|
| MTTF[years] [years] | 98 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.E |
| AS-i certificate | 101108 |
Mechanical data
| Weight[g] [g] | 607 |
|---|---|
| Housing | cylindrical |
| Type of mounting | mounting base |
| Dimensions[mm] [mm] | Ø 137.3 / L = 80 |
| Materials | threaded bush: stainless steel (316L/1.4404); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP |
Displays / operating elements
| Display | analogue signal LED, yellow channels AI1...AI4 operation LED, green AS-i errors LED, red |
|---|---|
| analogue signal | LED, yellow channels AI1...AI4 |
| operation | LED, green AS-i |
| errors | LED, red |
Electrical connection
| Module connection | M12 |
|---|
Accessories
| Accessories (optional) | Protective cap: M12, E70297 Flat cable insulation displacement connector:, E70455 Torque wrench:, E70390 |
|---|
Remarks
| Remarks | When the sensors and actuators are supplied from AS-i the load must not exceed a maximum of 380 mA. The load for an individual sensor connection must not exceed 200 mA. There is an electrical connection between the sensor and AS-i. MEW = % of the final value of the measuring range |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - AS-i
| Connector | 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
Electrical connection - Process connection
| Connector | 4 x M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
