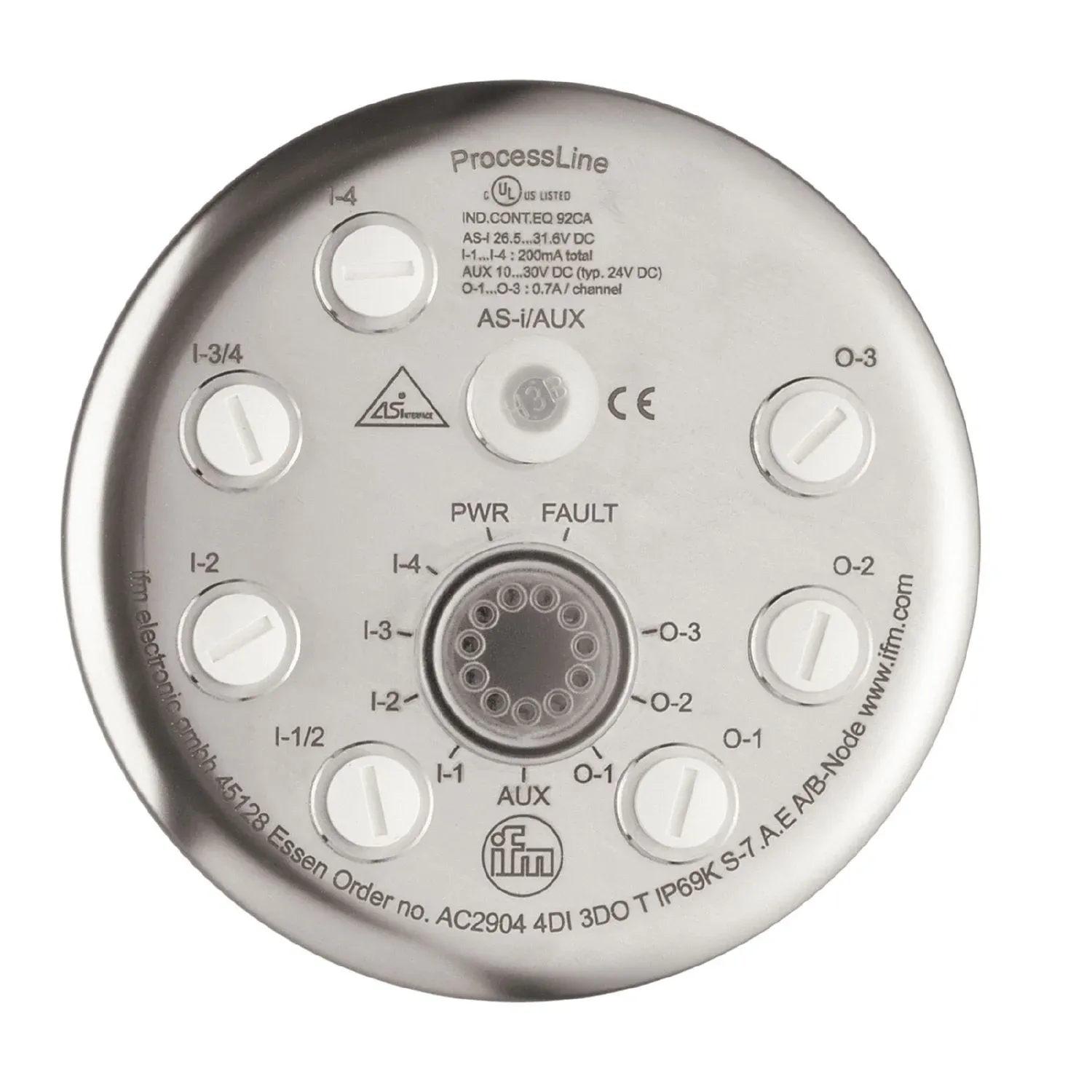

IFM AC2904
AC2904
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specially for the use in wet areas of the food and beverage industry
Hygienic design without corners and edges
Resistant to high-pressure cleaning with aggressive cleaning agents
Clearly visible powerful LEDs for displaying operation, switching status and error
AS-i and 24 V supply via a common M12 connector
Specification
Application
| Application | hygienic and wet areas in the food industry |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 240 |
| Additional voltage supply[V] [V] | 20...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 2100; (AUX) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 3 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 18...30 |
| Max. total current rating of inputs[mA] [mA] | 200 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 3 |
|---|---|
| Circuit | PNP |
| Voltage range DC[V] [V] | 20...30; (AUX) |
| Max. current load per output[mA] [mA] | 700; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Max. current load outputs total[A] [A] | 2.1 |
| Short-circuit proof | yes |
| Electrically separated | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -5...70 |
|---|---|
| Max. relative air humidity[%] [%] | 90; (linearly decreasing to 50 % (40 °C) non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 68; IP 69K |
| Pollution degree | 2 |
Tests / approvals
| EMC | EN 62026-2 EN 61000-6-2 |
|---|---|
| MTTF[years] [years] | 160 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.A.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 101107 |
| Assignment of the data bits | data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1/2 I-1/2 / I-2 I-3/4 I-3/4 / I-4 pin 4 2 4 4 2 4 Output 1 2 3 - socket O-1 O-2 O-3 - pin 4 4 4 - |
| data bit | D0 |
| input | 1 |
| socket | O-1 |
| pin | 4 |
| Output | 1 |

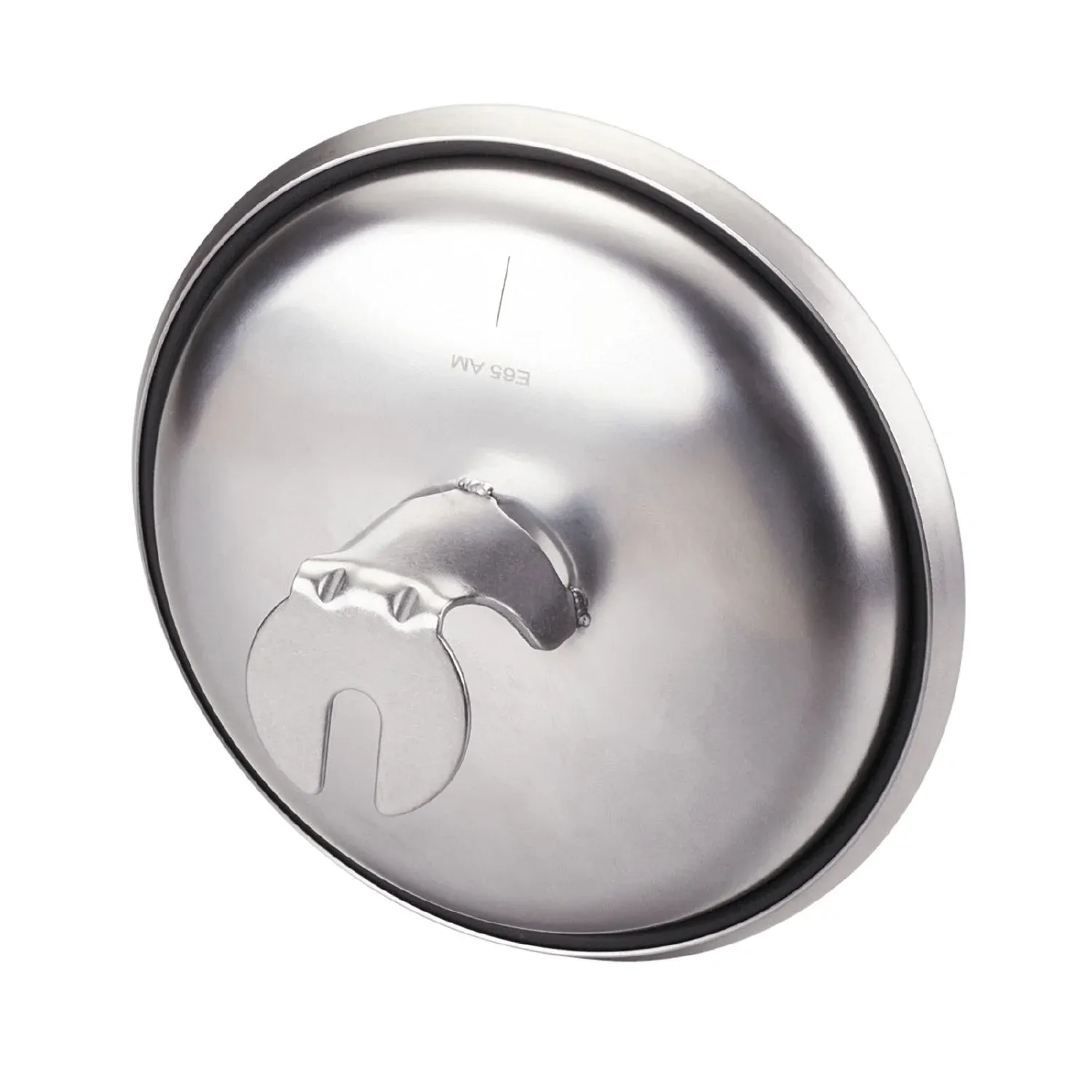

Mechanical data
| Weight[g] [g] | 632 |
|---|---|
| Housing | cylindrical |
| Type of mounting | mounting base |
| Dimensions[mm] [mm] | Ø 137.3 / L = 80 |
| Materials | threaded bush: stainless steel (316L/1.4404); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Electrical connection
| Module connection | M12 |
|---|
Accessories
| Accessories (optional) | Torque wrench:, E70390 Protective cap: M12, E70297 Flat cable splitter box:, E70354 |
|---|
Remarks
| Remarks | Inputs and outputs must be electrically isolated. Do not connect any of the following points to an external potential: I-, I+, I-1/2, I-2, I-3/4, I-4 The connections are electrically connected with the AS-i cable. The round cable connected to AS-i/AUX should not be longer than 2 m. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - AS-i
| Connector | M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
Electrical connection - Inputs
| Connector | M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
Electrical connection - Outputs
| Connector | M12; coding: A; Tightening torque: 1.2...1.4 Nm |
|---|
