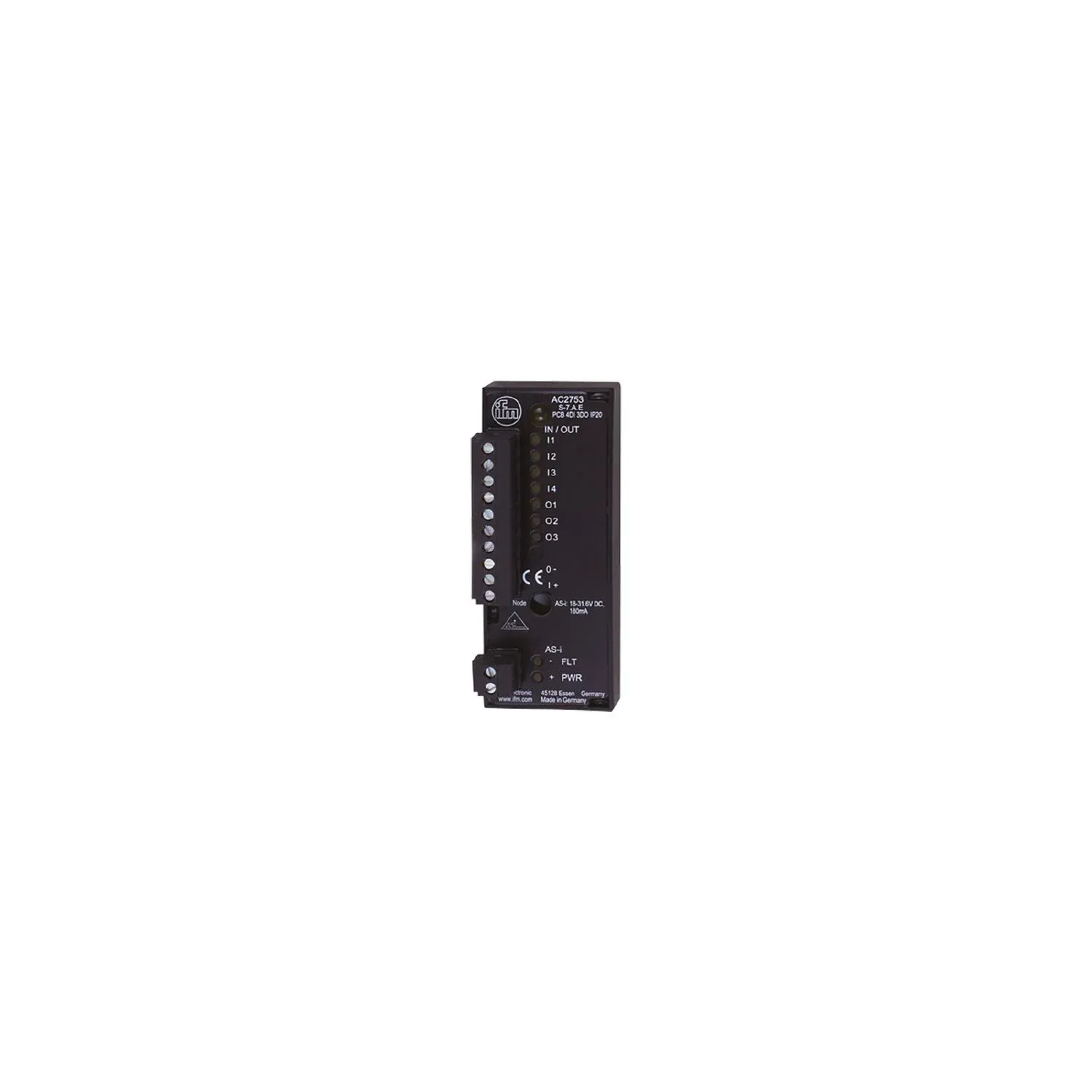

IFM AC2753
AC2753
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in small housings, control cabinets and operator panels
Simple and fast wiring by means of screw terminals
Particularly space-saving design
For integration of mechanical switches into AS-i networks
AS-i connection for three control and signalling devices
Specification
Application
| Application | For integration of mechanical switches into AS-i networks |
|---|
Electrical data
| Operating voltage[V] [V] | 18...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 180; (without sensors: < 30 mA; inputs and outputs active: < 180 mA) |
| Protection class | III |
| Max. current load total[A] [A] | 0.15; (total current for all inputs and outputs supplied from AS-i: 150 mA) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 3 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 18...30; (DC) |
| Max. total current rating of inputs[mA] [mA] | 150 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Number of digital outputs | 3 |
| Circuit | PNP |
| Voltage range DC[V] [V] | 18...30; (DC) |
| Max. current load per output[mA] [mA] | 100; (utilisation category DC-13 (control of electromagnets): 2,5 W (IEC 60947-5-1)) |
| Max. current load outputs total[A] [A] | 0.15 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AS-i |
Operating conditions
| Ambient temperature[°C] [°C] | -25...55 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| EMC | EN 50295 |
|---|
AS-i classification
| AS-i version | 3.0 |
|---|---|
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.A.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 102401 |
Mechanical data
| Weight[g] [g] | 68 |
|---|---|
| Housing | rectangular |
| Type of mounting | installation in a surface-mounted housing |
| Dimensions[mm] [mm] | 31.1 x 76.6 x 12 |
| Materials | housing: PC potted |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Remarks
| Remarks | A watchdog function switches the outputs off if there is no communication on the AS-i line. Install the unit so that exposed parts cannot be touched. Installation in a surface-mounted housing with the dimensions of 68 x 136 x 53 mm (LxWxH), e.g. Schneider Electric Harmony, XALD03, XALD04 Do not connect any of the following points to an external potential: 0-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable. can be used up to a height of 2000 metres above sea level |
|---|---|
| Pack quantity | 1 pcs. |
