Description
For installation in small housings, control cabinets and operator panels
Simple and fast wiring by means of screw terminals
Particularly space-saving design
For integration of mechanical switches into AS-i networks
AS-i connection for three control and signalling devices
Specification
Application
| Application | For integration of mechanical switches into AS-i networks |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | < 200 |
| Max. current load total[A] [A] | 0.18; (total current for all inputs and outputs supplied from AS-i: 180 mA) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 3; Number of digital outputs: 3 |
|---|
Inputs
| Number of digital inputs | 3 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20...30; (DC) |
| Digital inputs protected against short circuits | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Number of digital outputs | 3 |
| Voltage range DC[V] [V] | 18...30; (DC) |
| Max. current load per output[mA] [mA] | 180; (note current load for all inputs and outputs ) |
| Short-circuit proof | yes |
| Actuator supply outputs | AS-i |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|
Tests / approvals
| EMC | EN 50295 |
|---|
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.A.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.E |
| Assignment of the data bits | data bit D0 D1 D2 D3 input I-1 I-2 I-3 - Output O-1 O-2 O-3 - |
| data bit | D0 |
| input | I-1 |
| Output | O-1 |
Mechanical data
| Weight[g] [g] | 30.5 |
|---|---|
| Housing | rectangular |
Displays / operating elements
| Display | operation LED, green failure LED, red |
|---|---|
| operation | LED, green |
| failure | LED, red |
Remarks

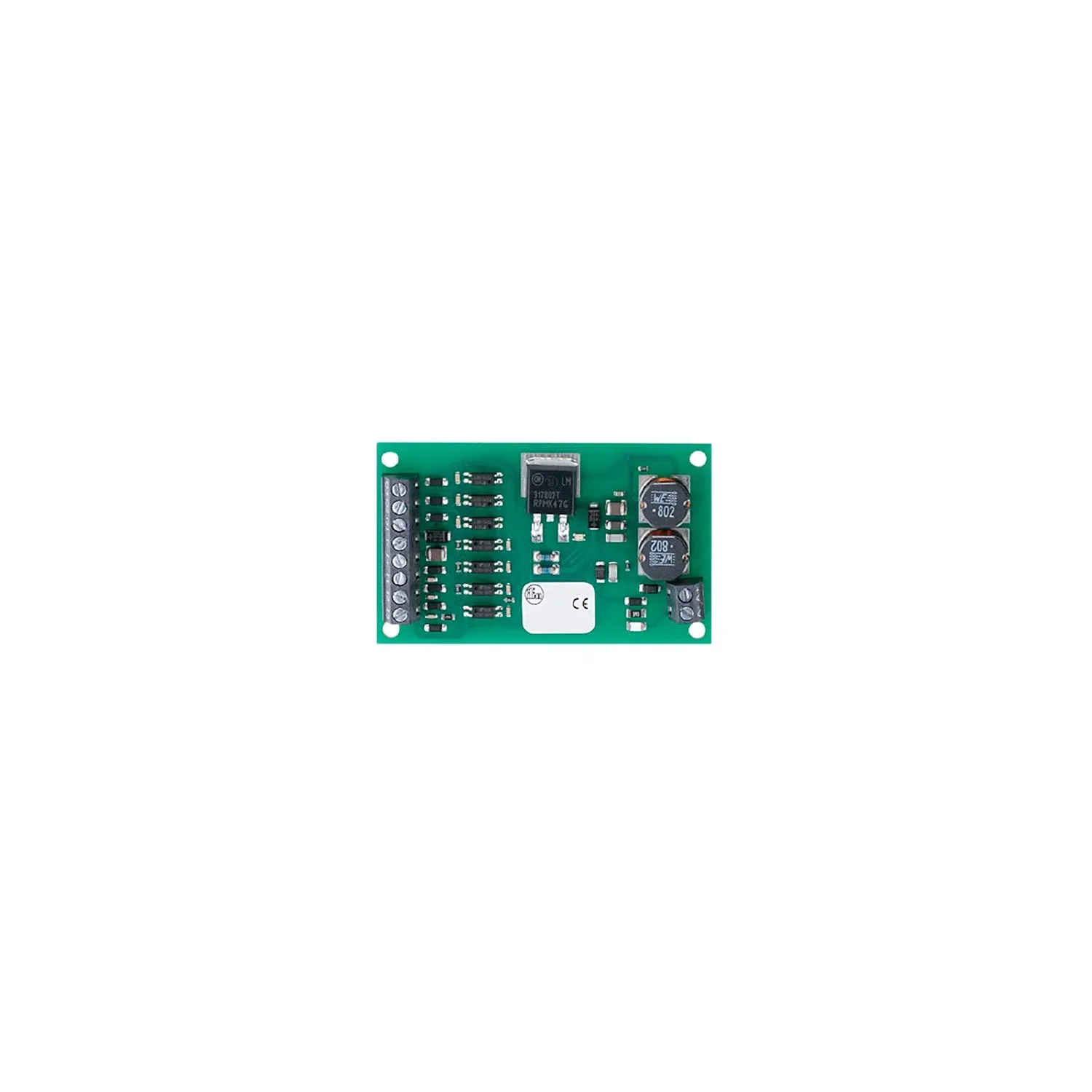

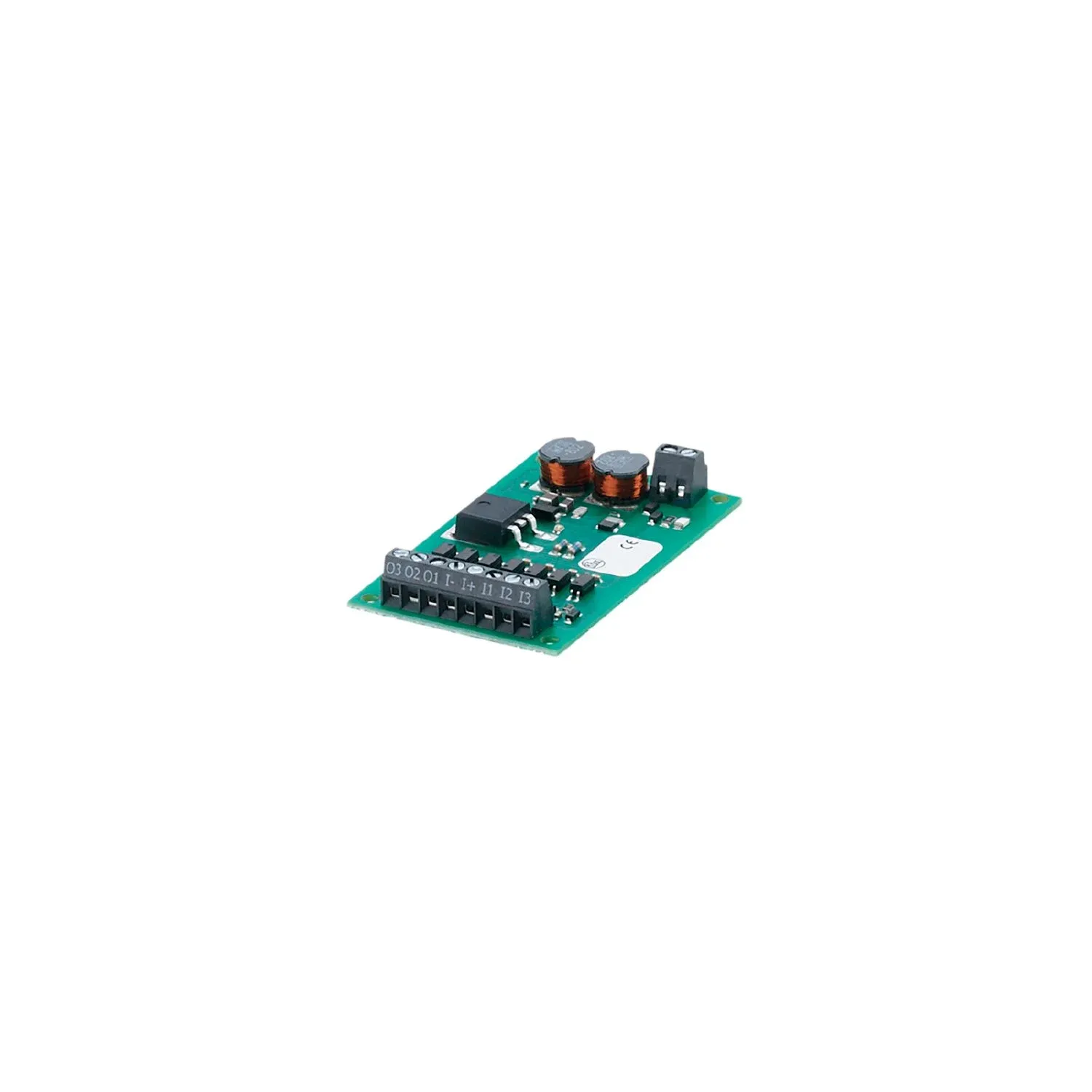

| Remarks | The AS-i module is a PCB solution for an AS-i slave, supply via AS-i. A watchdog function switches the outputs off if there is no communication on the AS-i line. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| screw terminals | 0.2...1.5 mm²; AWG26 - AWG16 |
|---|
