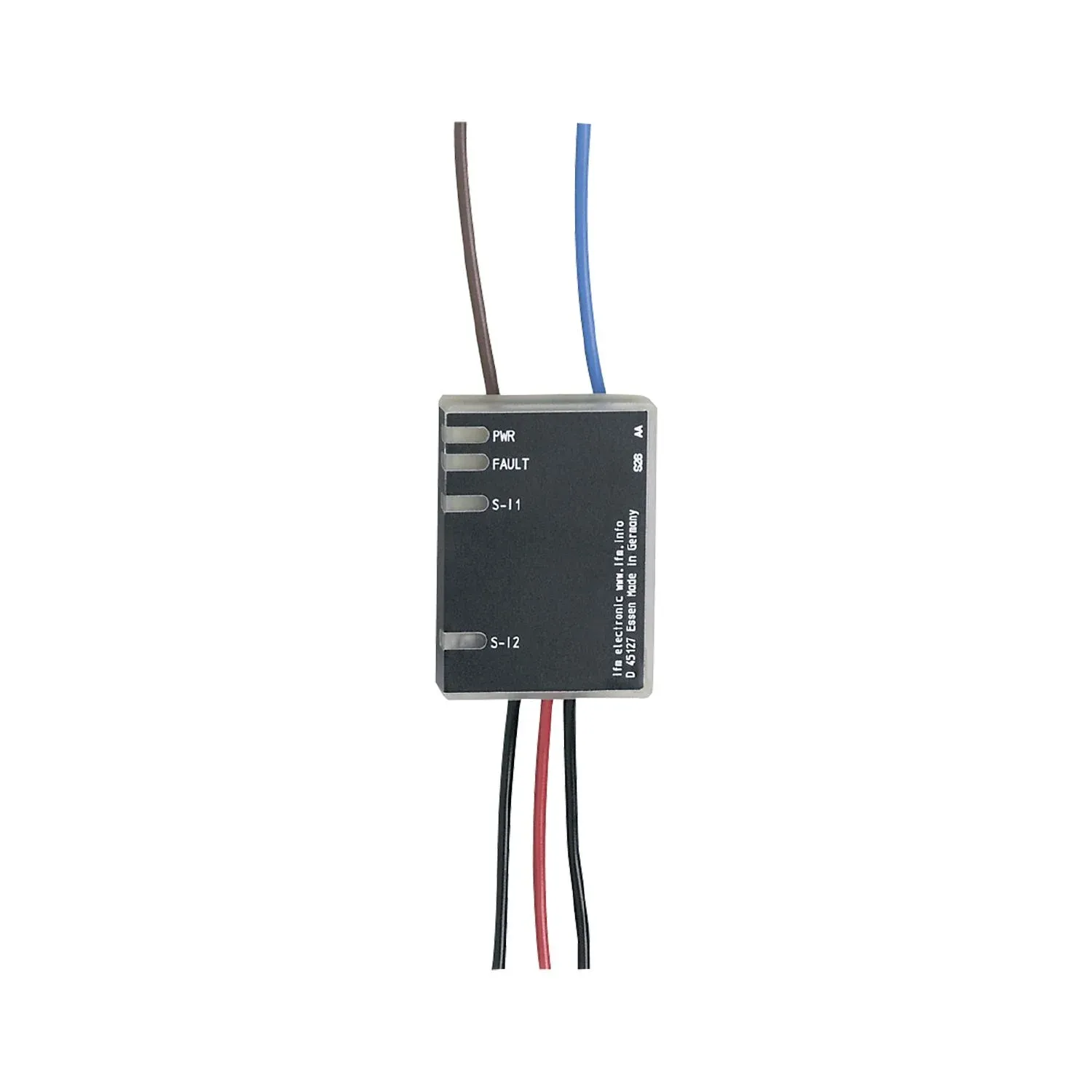

For installation in small housings, control cabinets and operator panels
Simple and fast wiring by means of wire strands
Particularly space-saving design
For integration of mechanical switches into AS-i networks
AS-i connection for two control and signalling devices
Specification
Application
| Application | For integration of mechanical switches into AS-i networks |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | < 50 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 18...30; (DC) |
| Input current High[mA] [mA] | > 5 |
| Digital inputs protected against short circuits | no |
Outputs
| Electrical design | PNP |
|---|---|
| Voltage range DC[V] [V] | DC |
| Max. current load per output[mA] [mA] | 10 |
| Short-circuit proof | no |
| Actuator supply outputs | AS-i |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 20; (depending on the housing) |
Tests / approvals
| EMC | EN 50295 |
|---|---|
| MTTF[years] [years] | 842 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.A.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 75101 |
| Assignment of the data bits | data bit D0 D1 D2 D3 Designation I-1 / O-1 I-2 - - |
| data bit | D0 |
| Designation | I-1 / O-1 |
Mechanical data
| Weight[g] [g] | 58.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 32 x 44 x 9 |
Displays / operating elements
| Display | operation LED, green errors LED, red function LED, yellow |
|---|---|
| operation | LED, green |
| errors | LED, red |
| function | LED, yellow |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Cable | 0.2 m |
|---|
