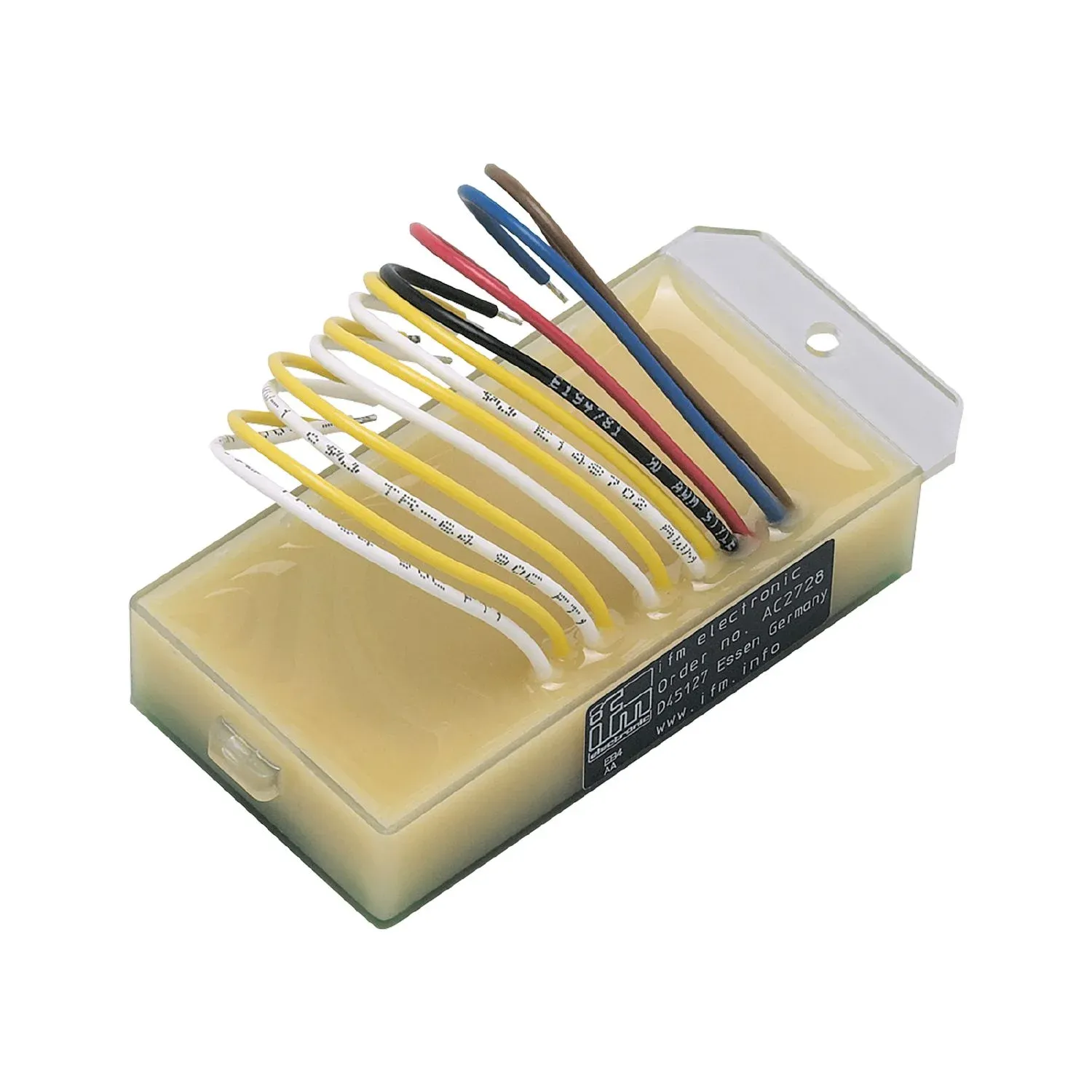

IFM AC2728
AC2728
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in small housings, control cabinets and operator panels
Simple and fast wiring by means of wire strands
Particularly space-saving design
For integration of mechanical switches into AS-i networks
Suitable for use in valve heads due to full potting
Specification
Application
| Application | For integration of mechanical switches into AS-i networks |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Current consumption[mA] [mA] | < 200 |
| Max. current load total[A] [A] | 0.18; (total current for all inputs and outputs supplied from AS-i: 180 mA) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 3 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20...30; (DC) |
| Digital inputs protected against short circuits | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Number of digital outputs | 3 |
| Voltage range DC[V] [V] | 18...30; (DC) |
| Max. current load per output[mA] [mA] | 100; (note current load for all inputs and outputs ) |
| Short-circuit proof | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| EMC | EN 50295 |
|---|
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.A.F |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.F |
| Assignment of the data bits | data bit D0 D1 D2 D3 input I-1 I-2 I-3 I-4 Output O-1 O-2 O-3 - |
| data bit | D0 |
| input | I-1 |
| Output | O-1 |
Mechanical data
| Weight[g] [g] | 74.5 |
|---|---|
| Housing | rectangular |
| Dimensions[mm] [mm] | 88 x 41 x 16 |
| Materials | housing: plastics potted |
Remarks
| Remarks | The AS-i module is a PCB solution for an AS-i slave, supply via AS-i. A watchdog function switches the outputs off if there is no communication on the AS-i line. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 0.1 m |
|---|
