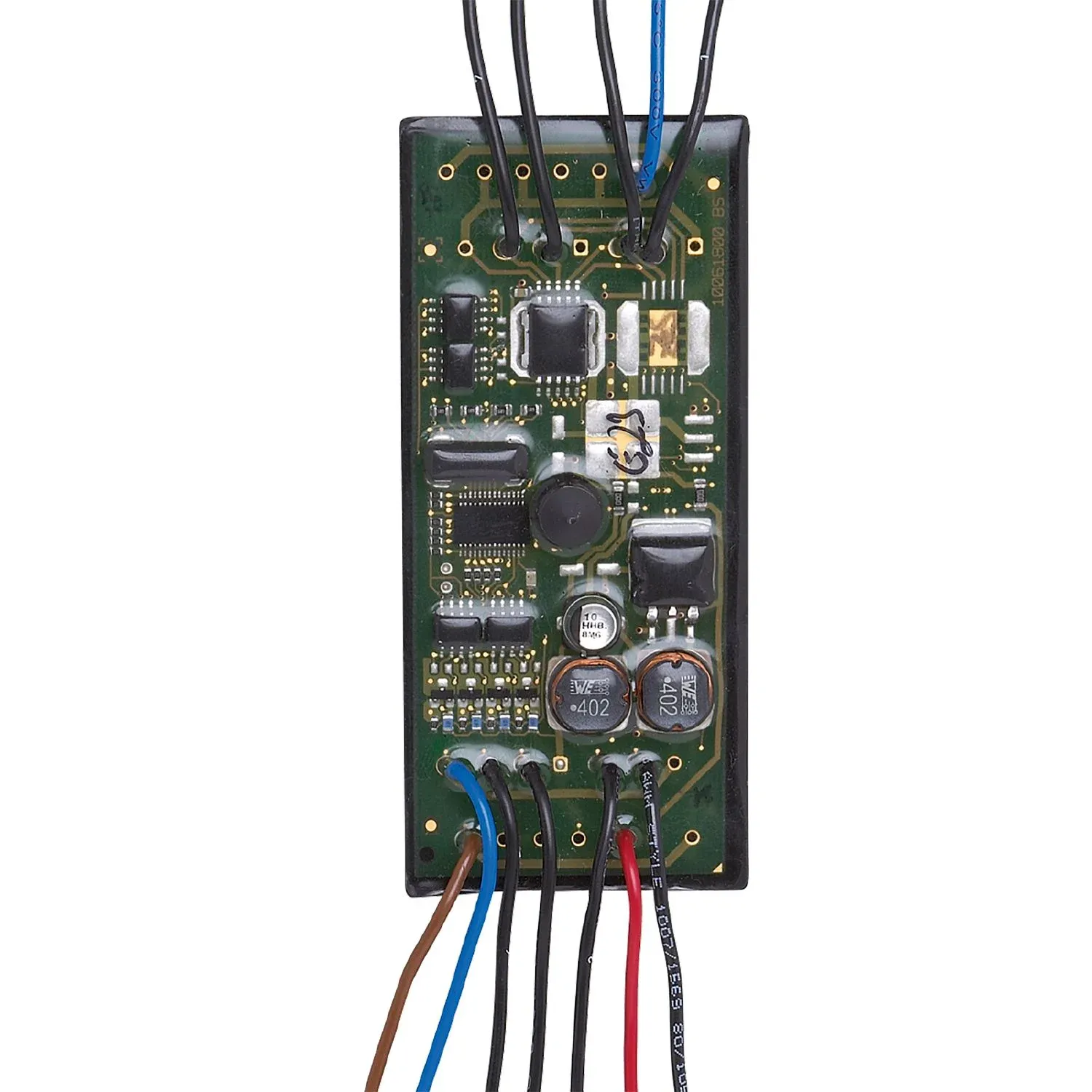

IFM AC2709
AC2709
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For installation in small housings, control cabinets and operator panels
Simple and fast wiring by means of wire strands
Particularly space-saving design
For integration of mechanical switches into AS-i networks
AS-i connection for four control and signalling devices
Specification
Application
| Application | For integration of mechanical switches into AS-i networks |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 250 |
| Max. current load total[A] [A] | 0.2; (total current for all inputs and outputs supplied from AS-i: 200 mA) |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 15...30; (DC) |
| Max. total current rating of inputs[mA] [mA] | 200 |
| Input current High[mA] [mA] | > 3 |
| Input current Low[mA] [mA] | < 1.5 |
| Switching level high[V] [V] | > 10 |
| Digital inputs protected against short circuits | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Number of digital outputs | 4 |
| Circuit | PNP |
| Max. current load per output[mA] [mA] | 50 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AS-i |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Protection | IP 20 |
Tests / approvals
| EMC | EN 50295 |
|---|---|
| MTTF[years] [years] | 322 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | no |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-7.0.F |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 0.F |
Mechanical data
| Weight[g] [g] | 115 |
|---|---|
| Housing | rectangular |
| Type of mounting | for Moeller housing RMQ-Titan: I3M, I4M, I6M |
Displays / operating elements
| Display | operation LED, green |
|---|---|
| operation | LED, green |
Remarks
| Remarks | The PCB can also be integrated into an RMQ22 housing. Do not connect any of the following points to an external potential: O-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable. Install the unit so that exposed parts cannot be touched. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Cable | 0.2 m |
|---|
