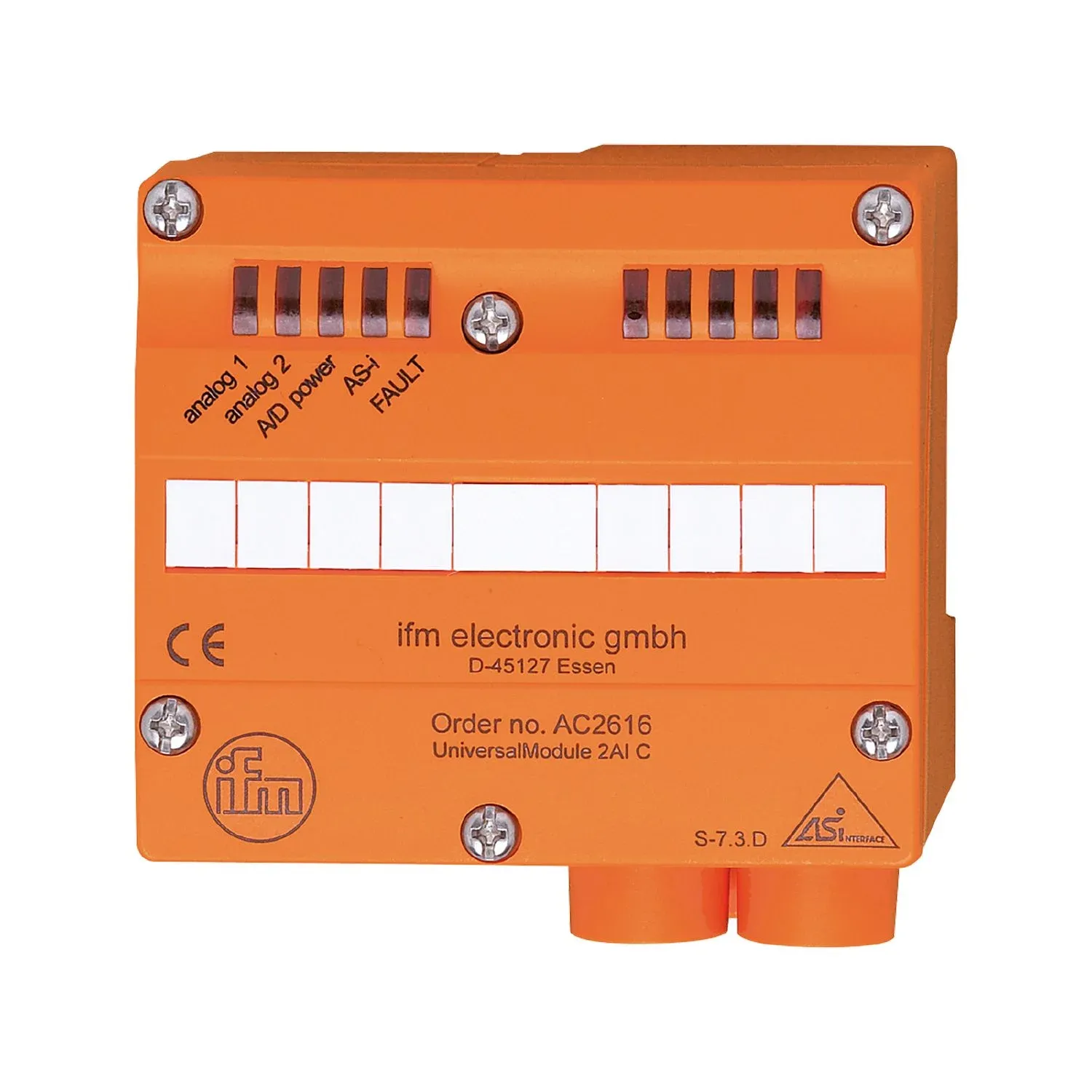

IFM AC2616
AC2616
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
For the connection of sensors and actuators with cable entry
Device connection with cage clamps
Clearly visible powerful LEDs for displaying operation, switching status and error
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 140 |
| Reverse polarity protection | yes |
| Additional voltage supply[V] [V] | 24...30 DC; (AUX) |
| Additional voltage supply | optional |
| Max. current consumption from additional supply[mA] [mA] | 550; (AUX) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 2 |
|---|
Inputs
| Sensor supply of the inputs | AS-i / AUX |
|---|---|
| Max. total current rating of inputs[mA] [mA] | 100 |
| Number of analogue inputs | 2; (Anschluss von 2-, 3-, 4-Draht-Sensoren) |
| Analogue input (current)[mA] [mA] | 4...20 |
| Analogue inputs protected against short circuits | no |
| Resolution of analogue input | 16 (1 bit = 1 µA) |
| Precision analogue input[%] [%] | 0,5 |
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65 |
Tests / approvals
| EMC | EN 50295 |
|---|---|
| MTTF[years] [years] | 150 |
AS-i classification
| AS-i master profile | M3; M4 |
|---|---|
| AS-i profile | S-7.3.D |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.D |
| Assignment of the parameter bits | parameter bit Designation P0 filter in the A/D converter : 1 50 Hz * / 0 60 Hz P1 channel 2: 1 projected / 0 not projected P2 peripheral fault : 1 activated / 0 deactivated P3 not used : 1 reserved / 0 not reserved |
| parameter bit | Designation |
| P0 | filter in the A/D converter |
| P1 | channel |
| P2 | peripheral fault |
| P3 | not used |
Mechanical data
| Weight[g] [g] | 287 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i interface to FC-E lower parts |
| Dimensions[mm] [mm] | 102 x 91 x 71 |
| Materials | PBT |
Displays / operating elements
| Display | analogue signal LED, yellow channels AI1...AI2 operation LED, green AS-i, AUX errors LED, red |
|---|---|
| analogue signal | LED, yellow channels AI1...AI2 |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Electrical connection
| Module connection | Flat cables |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
