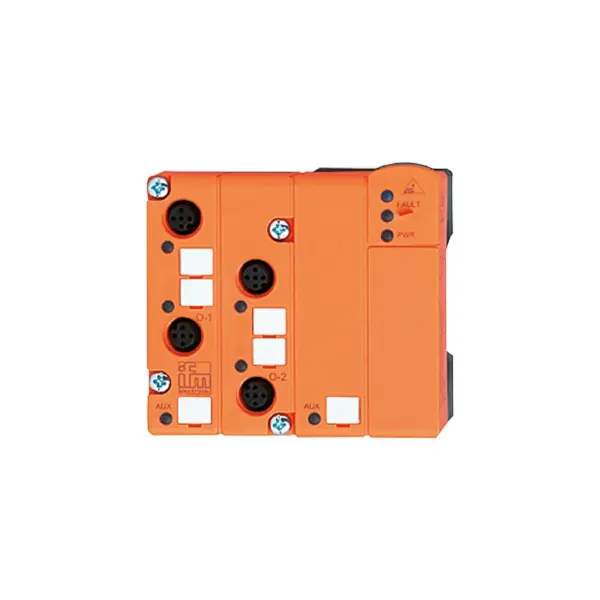

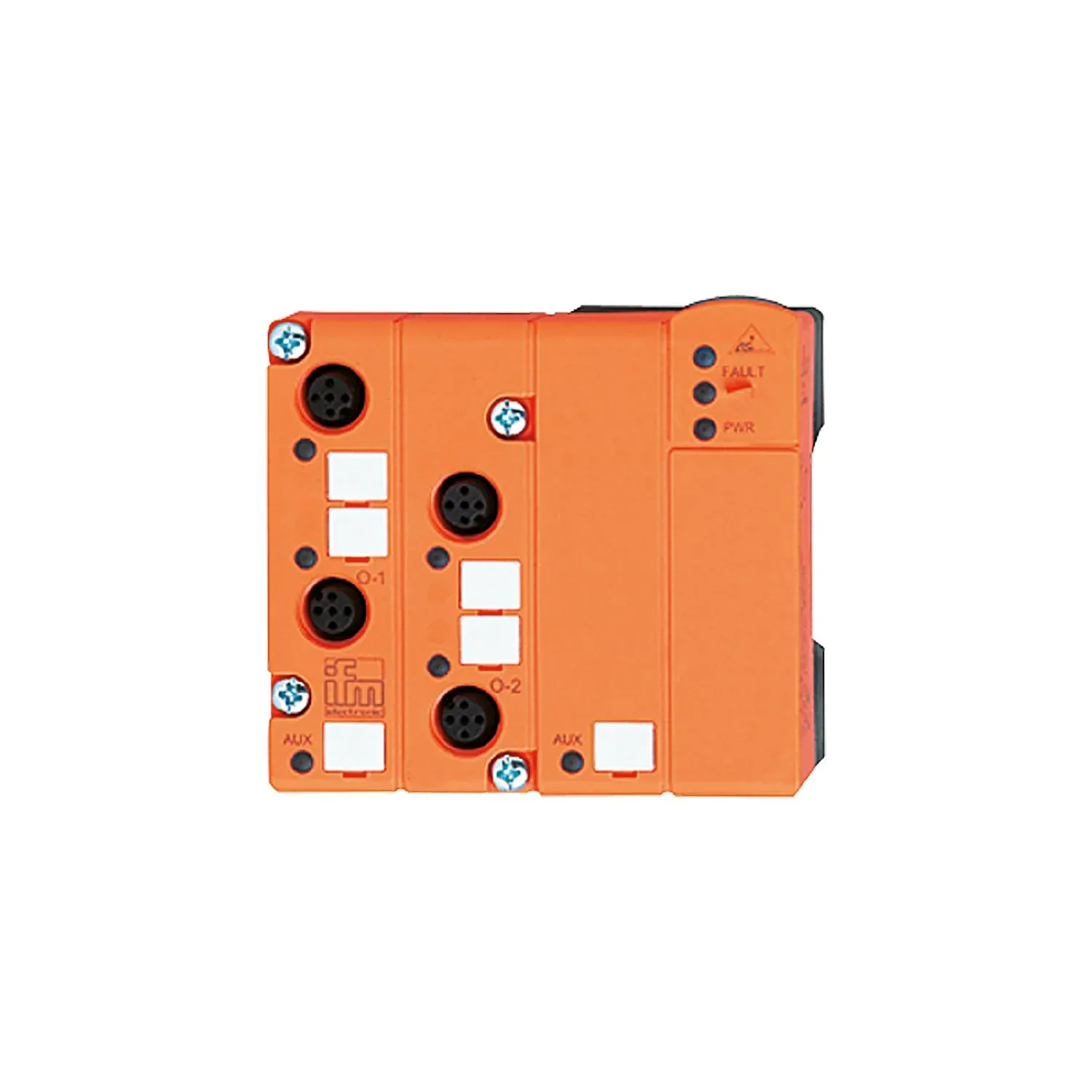

IFM AC2521
AC2521
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
Connection of the AS-i flat cable via module lower parts
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 24 |
| Reverse polarity protection | yes |
| Additional voltage supply[V] [V] | 24...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 550; (AUX) |
Inputs / outputs
| Number of inputs and outputs | Number of analogue outputs: 4 |
|---|
Inputs
| Precision analogue input[%] [%] | 0,5 |
|---|
Outputs
| Number of analogue outputs | 4; (connection of 3-wire actuators) |
|---|---|
| Analogue current output[mA] [mA] | 0...20 |
| Max. load[Ω] [Ω] | 600 |
| Resolution of analogue output | 16 (1 bit = 1 µA) |
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | -20...85 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 EN 61000-6-4 : 2001 EN 61000-6-2 : 2001 |
|---|---|
| EN 61000-6-4 | : 2001 |
| EN 61000-6-2 | : 2001 |
| MTTF[years] [years] | 150 |
AS-i classification
| AS-i addressing | addressing socket; IR addressing possible |
|---|---|
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.6 |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.6 |
| Assignment of the parameter bits | parameter bit Designation P0 not used P1 not used P2 peripheral fault indication : 1 activated / 0 deactivated P3 not used |
| parameter bit | Designation |
| P0 | not used |
| P1 | not used |
| P2 | peripheral fault indication |
| P3 | not used |
Mechanical data
| Weight[g] [g] | 206.5 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i interface to FC-E lower parts |
| Dimensions[mm] [mm] | 83 x 90 x 44 |
| Materials | PBT |
| Tightening torque[Nm] [Nm] | 0.6...0.8 |
Displays / operating elements
| Display | analogue signal LED, yellow channels AO1...AO4 operation LED, green AS-i, AUX errors LED, red |
|---|---|
| analogue signal | LED, yellow channels AO1...AO4 |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Accessories (optional) | Module lower part |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | M12; coding: A |
|---|
