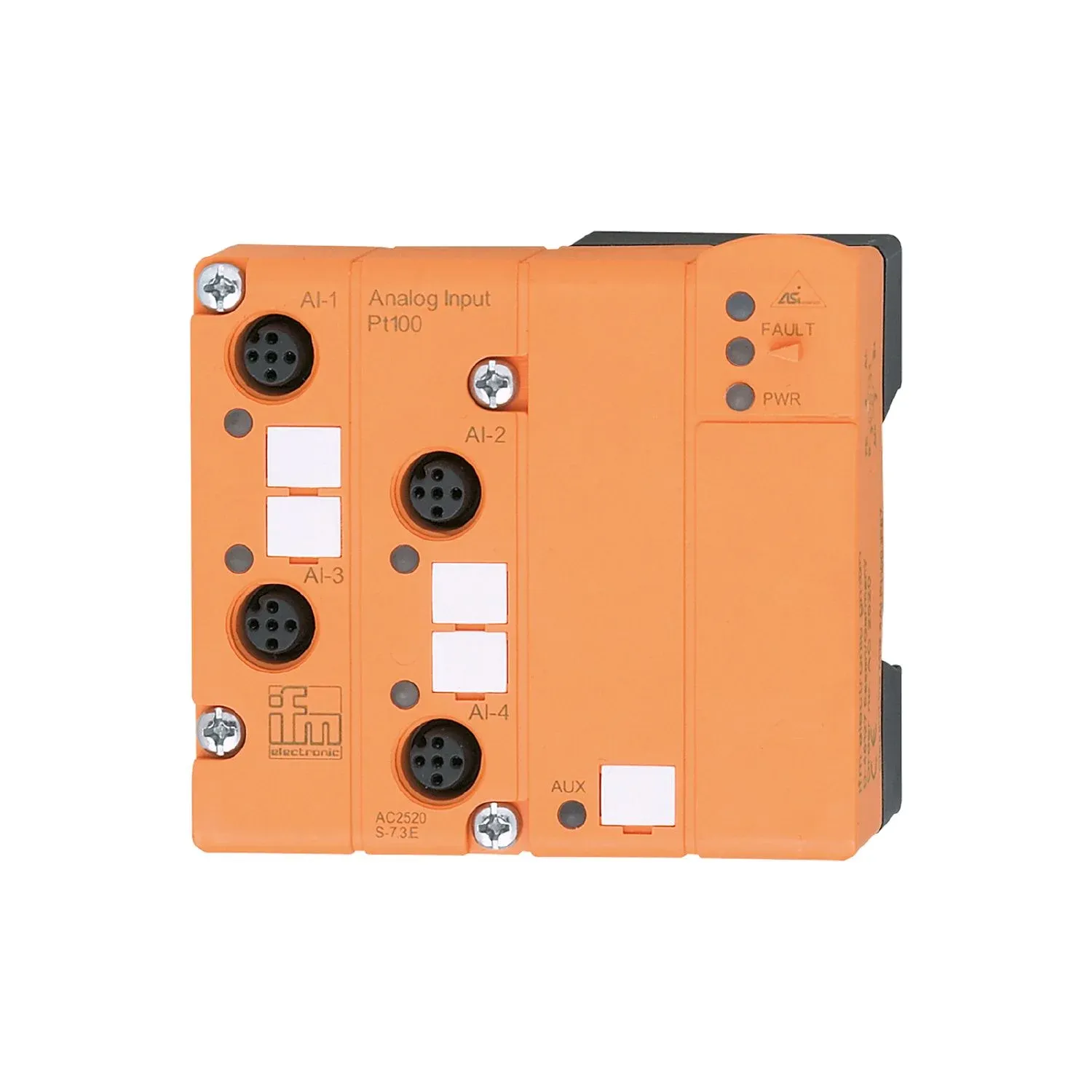

IFM AC2520
AC2520
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
Connection of the AS-i flat cable via module lower parts
Clearly visible powerful LEDs for displaying operation, switching status and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Product characteristics
| Number of inputs and outputs | Number of Pt100 inputs: 4 |
|---|---|
| Measuring range[°C] [°C] | -200...850 |
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 80 |
| Reverse polarity protection | yes |
| Max. current load total[A] [A] | 0.08 |
Inputs / outputs
| Number of inputs and outputs | Number of Pt100 inputs: 4 |
|---|
Inputs
| Number of Pt100 inputs | 4 |
|---|---|
| Sensor supply of the inputs | AS-i |
| Digital inputs protected against short circuits | yes |
| Number of analogue inputs | connection of 2- and 4-wire sensors |
| Resolution of analogue input | 16 / 0.1 °C |
Measuring/setting range
| Measuring range[°C] [°C] | -200...850 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | 0...70 |
|---|---|
| Storage temperature[°C] [°C] | -25...85 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 EN 61000-6-4 : 2001 EN 61000-6-2 : 2001 |
|---|---|
| EN 61000-6-4 | : 2001 |
| EN 61000-6-2 | : 2001 |
| MTTF[years] [years] | 140 |
AS-i classification
| AS-i addressing | addressing socket; IR addressing possible |
|---|---|
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.E |
Mechanical data
| Weight[g] [g] | 205.55 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i interface to FC lower parts |
| Dimensions[mm] [mm] | 83 x 90 x 44 |
| Materials | PBT |
| Tightening torque[Nm] [Nm] | 0.6...0.8 |
Displays / operating elements
| Display | switching status LED, yellow channels AI1...AI4 operation LED, green Voltage AS-i - AS-i errors LED, red |
|---|---|
| switching status | LED, yellow channels AI1...AI4 |
| operation | LED, green Voltage AS-i - AS-i |
| errors | LED, red |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Accessories (optional) | Module lower part |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | M12; coding: A |
|---|
