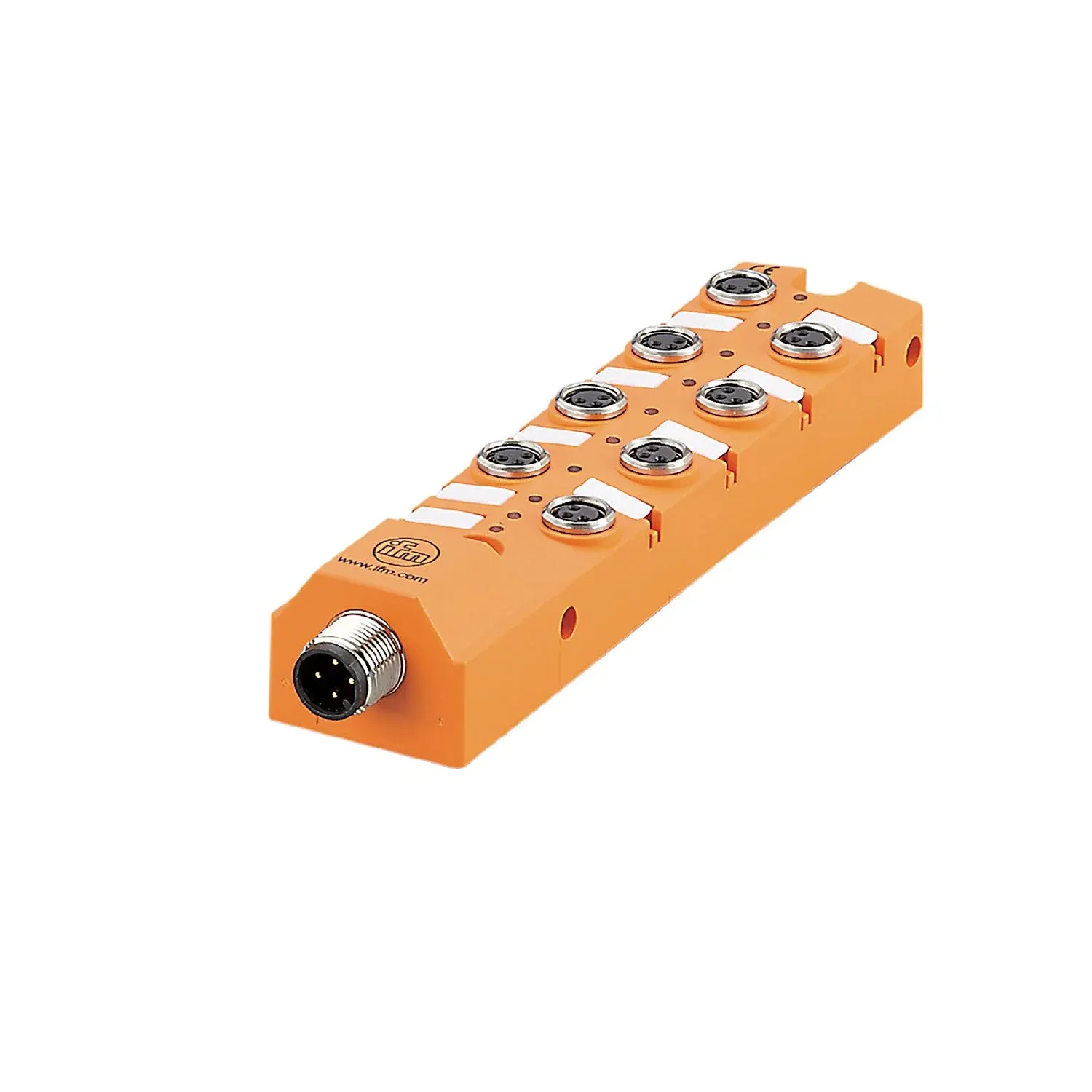

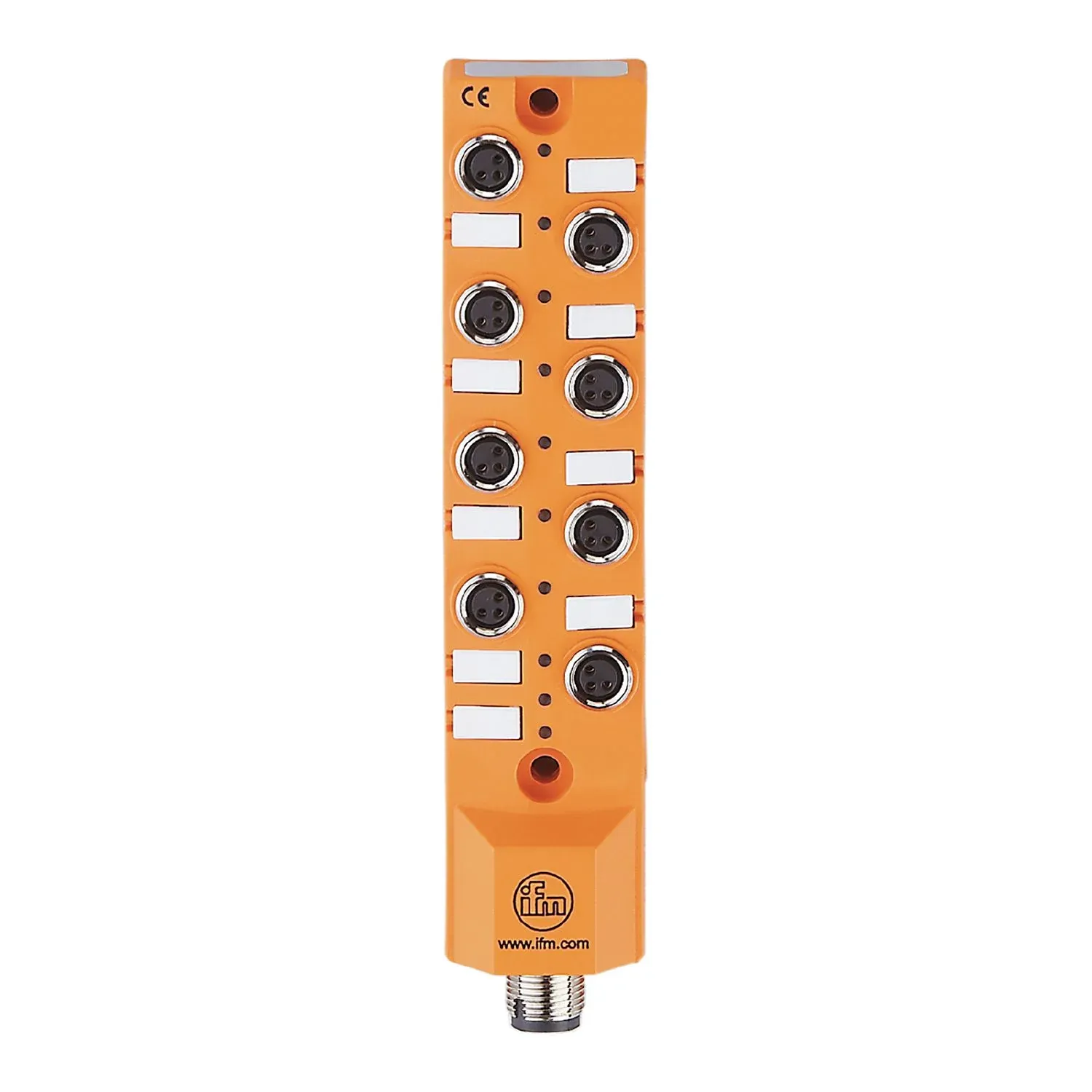

IFM AC2490
AC2490
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation, function and error
High protection rating for the requirements of harsh industrial environments
Mechanical end stop to protect the O-ring from destruction
Specification
Application
| Design | only for operation with AS-i masters with the profile M4, for the connection of mechanical contacts a suitable sensor is to be connected to any input |
|---|---|
| Application | field installation |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 230 |
| Additional voltage supply[V] [V] | 15...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 1000; (AUX; < 40 °C: 2 A) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4; Number of digital outputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 18...30; (DC) |
| Max. total current rating of inputs[mA] [mA] | 180 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Outputs
| Number of digital outputs | 4 |
|---|---|
| Circuit | PNP |
| Voltage range DC[V] [V] | 15...30; (AUX) |
| Max. current load per output[mA] [mA] | 500; (< 40 °C: 1000 mA) |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] [°C] | -25...60 |
|---|---|
| Storage temperature[°C] [°C] | -25...60 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 65; IP 67; IP 68 |
Tests / approvals
| EMC | EN 62026-2 EN 50581 |
|---|---|
| MTTF[years] [years] | 278 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
AS-i classification
| AS-i version | 3.0 |
|---|---|
| Extended addressing mode | yes |
| AS-i master profile | M4 |
| AS-i profile | S-7.A.7 |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.7 |
| Assignment of the data bits | data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1 I-2 I-3 I-4 pin 4 4 4 4 Output 1 2 3 4 socket O-1 O-2 O-3 O-4 pin 4 4 4 4 |
| data bit | D0 |
| input | 1 |
| socket | O-1 |
| pin | 4 |
| Output | 1 |
| Assignment of the parameter bits | parameter bit Designation P0 not used P1 peripheral fault indication : 1 activated / 0 deactivated P2 not used P3 not used |
| parameter bit | Designation |
| P0 | not used |
| P1 | peripheral fault indication |
| P2 | not used |
| P3 | not used |
Mechanical data
| Weight[g] [g] | 150 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 134.5 x 30 x 23.5 |
| Materials | PBT |
Displays / operating elements
| Display | switching status LED, yellow I1...I4, O1...O4 operation LED, green AS-i, AUX errors LED, red |
|---|---|
| switching status | LED, yellow I1...I4, O1...O4 |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Electrical connection
| Module connection | M12 |
|---|
Accessories
| Items supplied | Label tags Protective caps: 2 |
|---|---|
| Accessories (optional) | Protective cap: M8, E73005 Flat cable insulation displacement connector: 1 m, round cable, E70582 DIN rail adapter:, E73007 |
Remarks
| Remarks | Do not connect any of the following points to an external potential: I-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - AS-i
| Connector | 1 x M12; coding: A |
|---|
Electrical connection - Inputs
| Connector | 4 x M8; coding: A |
|---|
Electrical connection - Outputs
| Connector | 4 x M8; coding: A |
|---|
