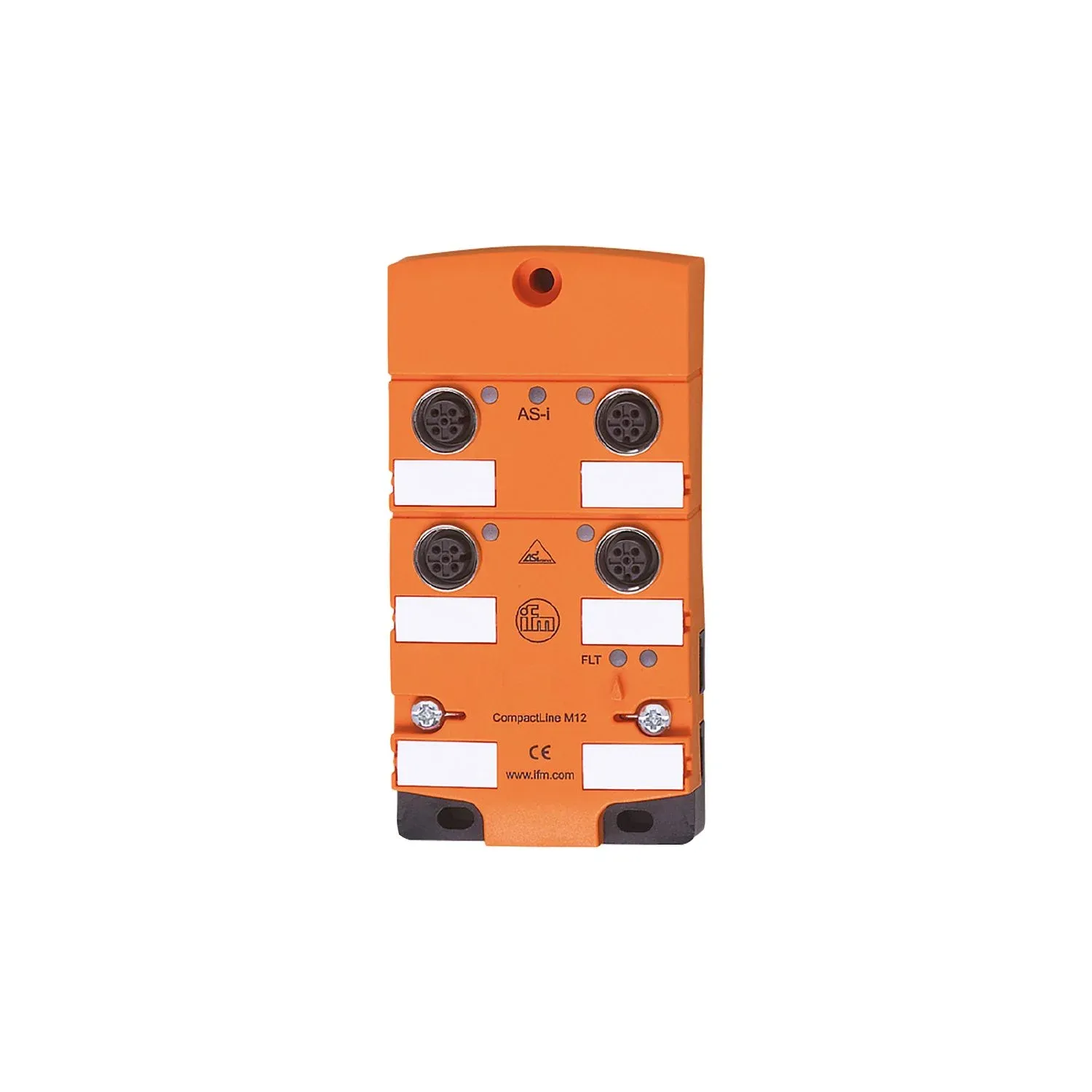

IFM AC2487
AC2487
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation, function and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Application
| Design | only for operation with AS-i masters with the profile M4 |
|---|---|
| Application | field installation |
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 75 |
| Max. current load total[A] [A] | 4 |
| Additional voltage supply[V] [V] | 15...30 DC; (AUX) |
| Max. current consumption from additional supply[mA] [mA] | 4000; (AUX) |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 4 |
|---|
Outputs
| Number of digital outputs | 4 |
|---|---|
| Circuit | PNP |
| Voltage range DC[V] [V] | 15...30; (AUX) |
| Max. current load per output[mA] [mA] | 2000; (utilisation category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1)) |
| Max. current load outputs total[A] [A] | 4 |
| Short-circuit proof | yes |
| Electrically separated | yes |
| Actuator supply outputs | AUX |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67; (when flat cables are used E7400x / E7401x) |
Tests / approvals
| EMC | EN 61000-6-2 EN 62026-2 EN 50581 |
|---|---|
| MTTF[years] [years] | 300 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
AS-i classification
| AS-i version | 3.0 |
|---|---|
| AS-i addressing | IR addressing possible |
| Extended addressing mode | yes |
| AS-i master profile | M4 |
| AS-i profile | S-7.A.7 |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.7 |
| AS-i certificate | 128401 |
| Assignment of the data bits | data bit D0 D1 D2 D3 Output 1 2 3 4 socket O-1 O-2 O-3 O-4 pin 4 4 4 4 |
| data bit | D0 |
| Output | 1 |
| socket | O-1 |
| pin | 4 |
Mechanical data
| Weight[g] [g] | 282 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i flat cables directly connectable; backplane mounting |
| Dimensions[mm] [mm] | 118.2 x 60 x 27 |
| Materials | PA; socket: stainless steel (316L/1.4404); threaded inserts in the lower part: stainless steel (316L/1.4404); O-ring: EPDM; screws: stainless steel (316Cu/1.4578); piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display | switching status LED, yellow O1...O4 operation LED, green AS-i, AUX errors LED, red |
|---|---|
| switching status | LED, yellow O1...O4 |
| operation | LED, green AS-i, AUX |
| errors | LED, red |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Accessories (optional) | Stainless steel sleeve, for installation in case of high mechanical stress , E70402 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connector | M12; coding: A |
|---|
