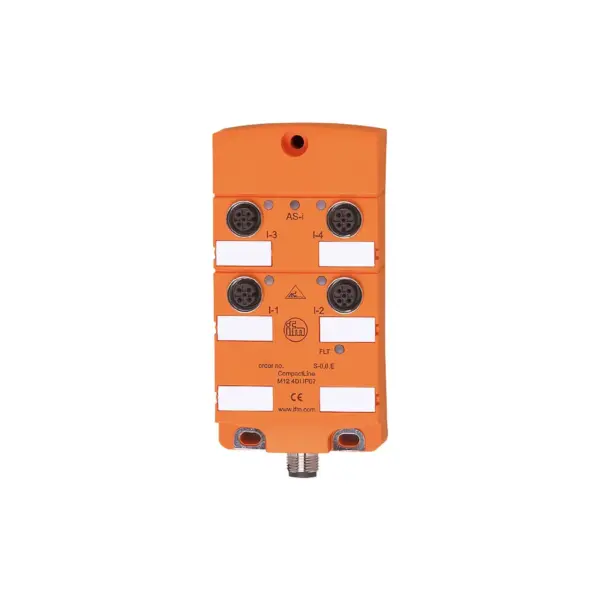

IFM AC2468
AC2468
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation, function and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 250 |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 4 |
|---|
Inputs
| Number of digital inputs | 4 |
|---|---|
| Input circuit of digital inputs | PNP; (type 2 according to IEC 61131-2) |
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20...30; (DC) |
| Max. total current rating of inputs[mA] [mA] | 200 |
| Input current limitation[mA] [mA] | 15 |
| Input current High[mA] [mA] | 6...10 |
| Input current Low[mA] [mA] | 0...2 |
| Switching level high[V] [V] | > 11 |
| Digital inputs protected against short circuits | yes |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67 |
Tests / approvals
| EMC | EN 61000-6-2 EN 62026-2 EN 50581 |
|---|---|
| MTTF[years] [years] | 383 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | IR addressing possible |
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-0.A.E |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 126401 |
| Assignment of the data bits | data bit D0 D1 D2 D3 input 1 2 3 4 socket I-1/2 I-1/2 / I-2 I-3/4 I-3/4 / I-4 pin 4 2 4 4 2 4 |
| data bit | D0 |
| input | 1 |
| socket | I-1/2 |
| pin | 4 |
Mechanical data
| Weight[g] [g] | 303 |
|---|---|
| Housing | rectangular |
| Type of mounting | backplane mounting |
| Dimensions[mm] [mm] | 118.2 x 60 x 27 |
| Materials | PA; socket: brass nickel-plated; O-ring: FKM |
Displays / operating elements
| Display | switching status LED, yellow I1...I4 operation LED, green AS-i errors LED, red |
|---|---|
| switching status | LED, yellow I1...I4 |
| operation | LED, green AS-i |
| errors | LED, red |
Electrical connection
| Module connection | M12 |
|---|
Accessories
| Accessories (optional) | Stainless steel sleeve, for installation in case of high mechanical stress , E70402 |
|---|
Remarks
| Remarks | Do not connect any of the following points to an external potential: I-, I+, I1, I2, I3, I4 The connections are electrically connected with the AS-i cable. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - AS-i
| Connector | M12; coding: A |
|---|
Electrical connection - Process connection
| Connector | M12; coding: A |
|---|
