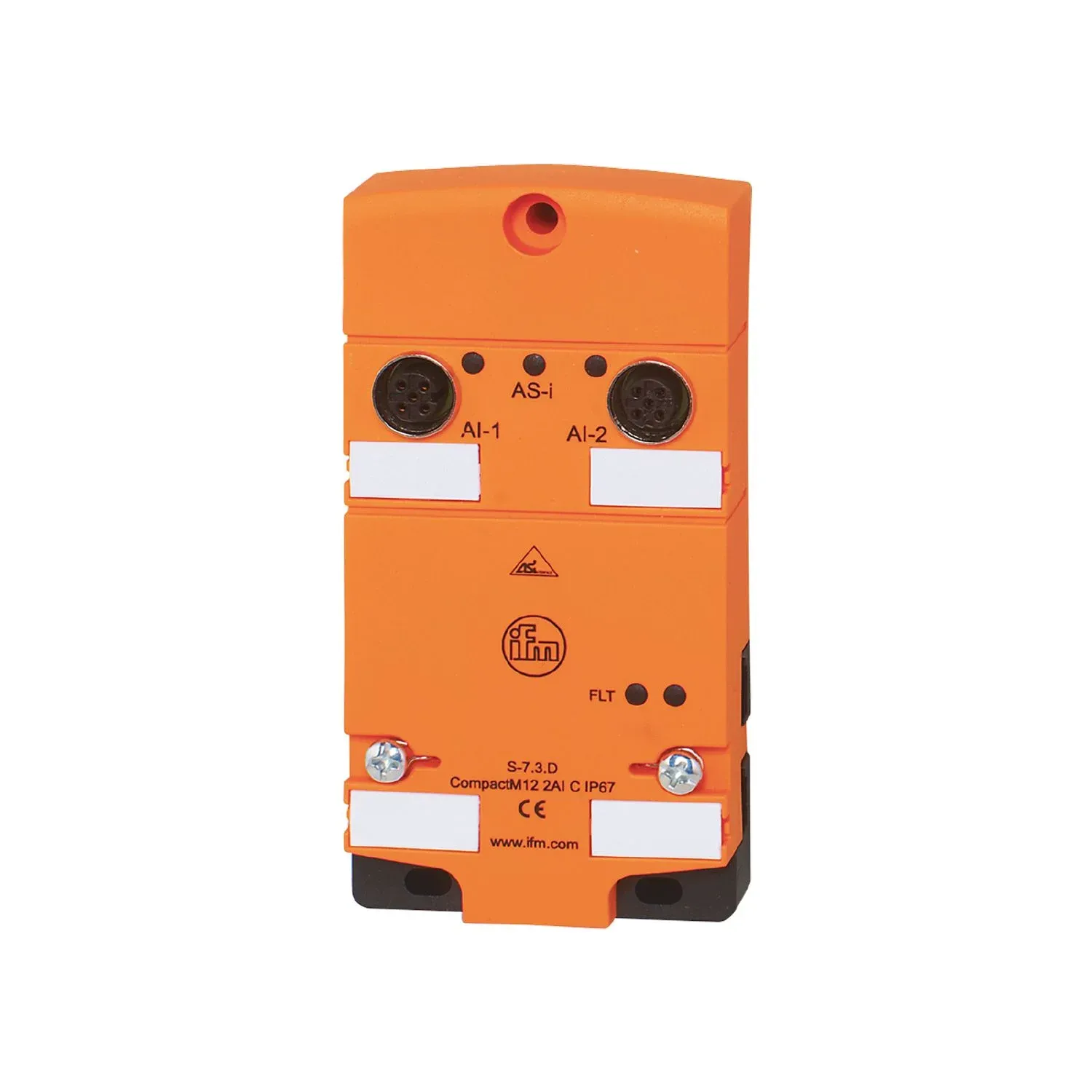

IFM AC2403
AC2403
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Easy to mount and wire
High shock and vibration resistance thanks to full potting
Clearly visible powerful LEDs for displaying operation, function and error
High protection rating for the requirements of harsh industrial environments
Robust M12 connectors for connecting sensors and actuators
Specification
Application
| Application | field installation |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 250 |
| Reverse polarity protection | yes |
Inputs / outputs
| Number of inputs and outputs | Number of analogue inputs: 2 |
|---|
Inputs
| Max. total current rating of inputs[mA] [mA] | 200 |
|---|---|
| Number of analogue inputs | 2; (Anschluss von 2- und 4-Draht-Sensoren) |
| Analogue input (current)[mA] [mA] | 4...20 |
Operating conditions
| Ambient temperature[°C] [°C] | -25...80 |
|---|---|
| Storage temperature[°C] [°C] | -25...80 |
| Max. relative air humidity[%] [%] | 90; (non condensing) |
| Max. height above sea level[m] [m] | 2000 |
| Protection | IP 67; (when flat cables are used E7400x / E7401x) |
Tests / approvals
| EMC | EN 61000-6-2 EN 62026-2 EN 50581 |
|---|---|
| MTTF[years] [years] | 167 |
| UL approval | power supply Class 2 |
| power supply | Class 2 |
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| AS-i addressing | IR addressing possible |
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.D |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | 3.D |
| AS-i certificate | 99201 |
Mechanical data
| Weight[g] [g] | 277 |
|---|---|
| Housing | rectangular |
| Type of mounting | AS-i flat cables directly connectable; backplane mounting |
| Dimensions[mm] [mm] | 118.2 x 60 x 27 |
| Materials | PA; socket: stainless steel (316L/1.4404); threaded inserts in the lower part: stainless steel (316L/1.4404); screws in the lower part: stainless steel (316Cu/1.4578); piercing contacts: CuSn6 nickel-plated and tin-plated |
Displays / operating elements
| Display | operation LED, green Voltage AS-i errors LED, red function LED, yellow channels AI1, AI2 |
|---|---|
| operation | LED, green Voltage AS-i |
| errors | LED, red |
| function | LED, yellow channels AI1, AI2 |
Electrical connection
| Module connection | Flat cables |
|---|
Accessories
| Accessories (optional) | Protective cap: M12, E73004 Stainless steel sleeve, for installation in case of high mechanical stress , E70402 |
|---|
Remarks
| Remarks | The module is exclusively supplied via the yellow AS-i cable. When connecting a 2-wire or 3-wire sensor without own supply there has to be an external link between pin 3 and pin 4. The inputs (pins 2 and 4) are electrically separated and have no connection to AS-i. |
|---|---|
| Pack quantity | 1 pcs. |
