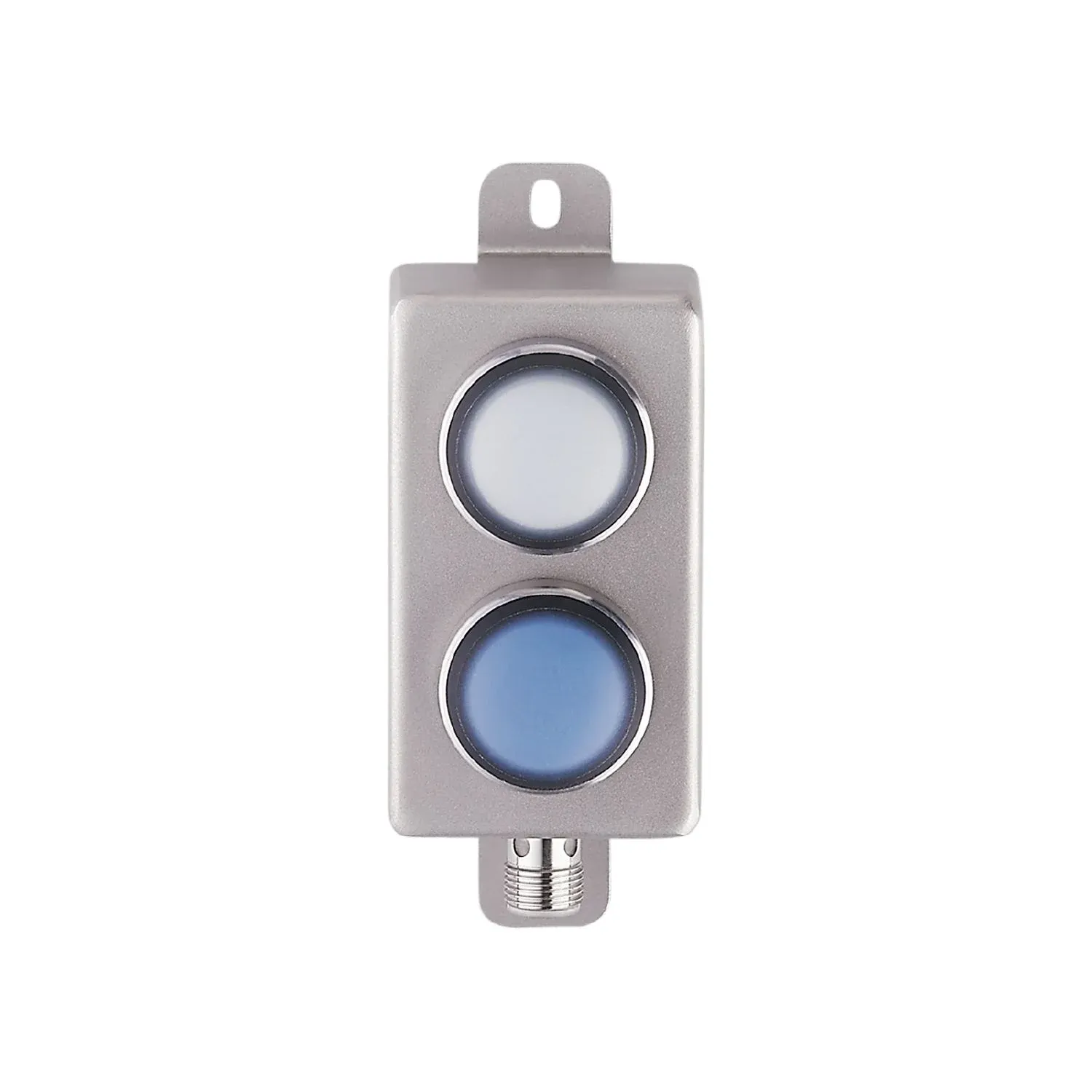

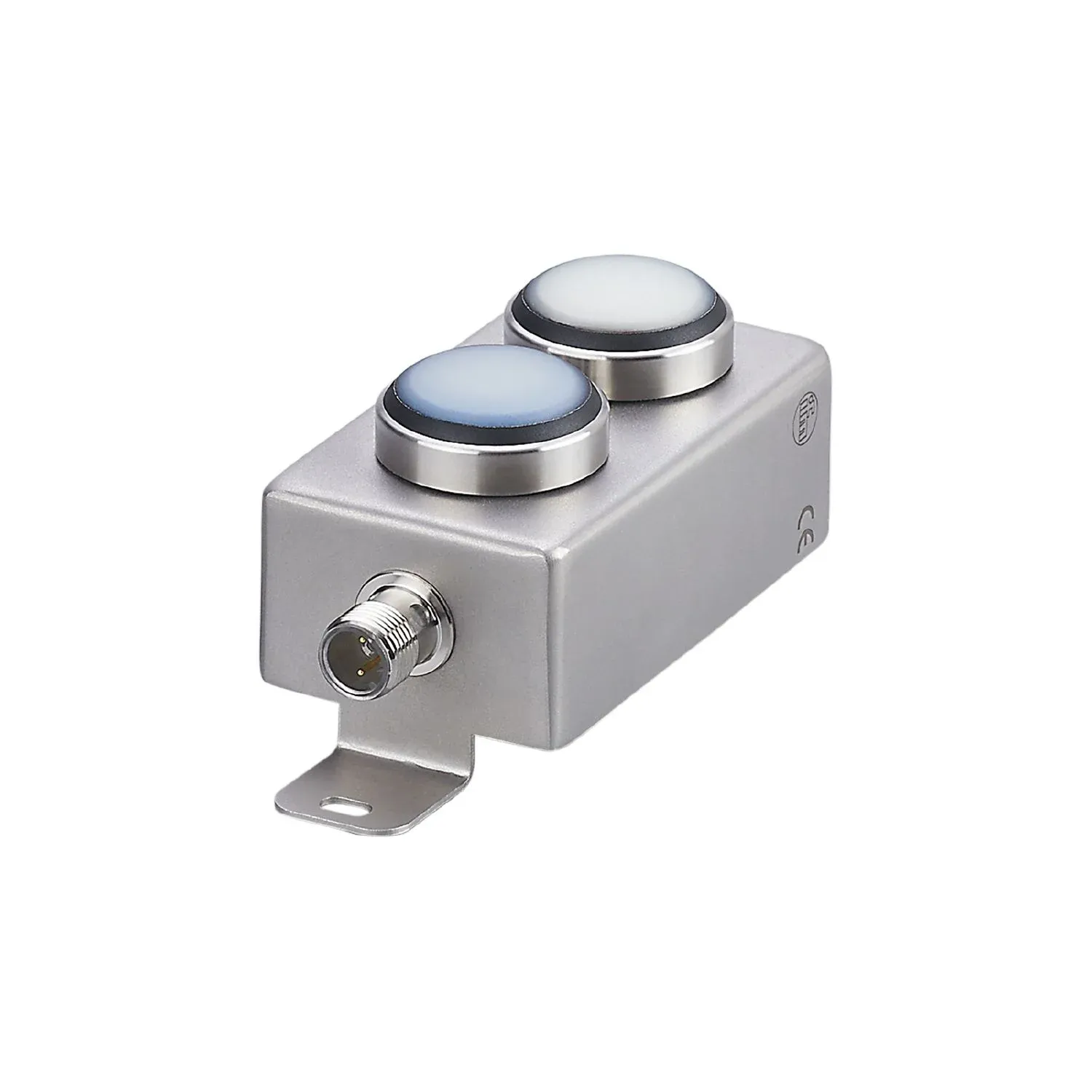

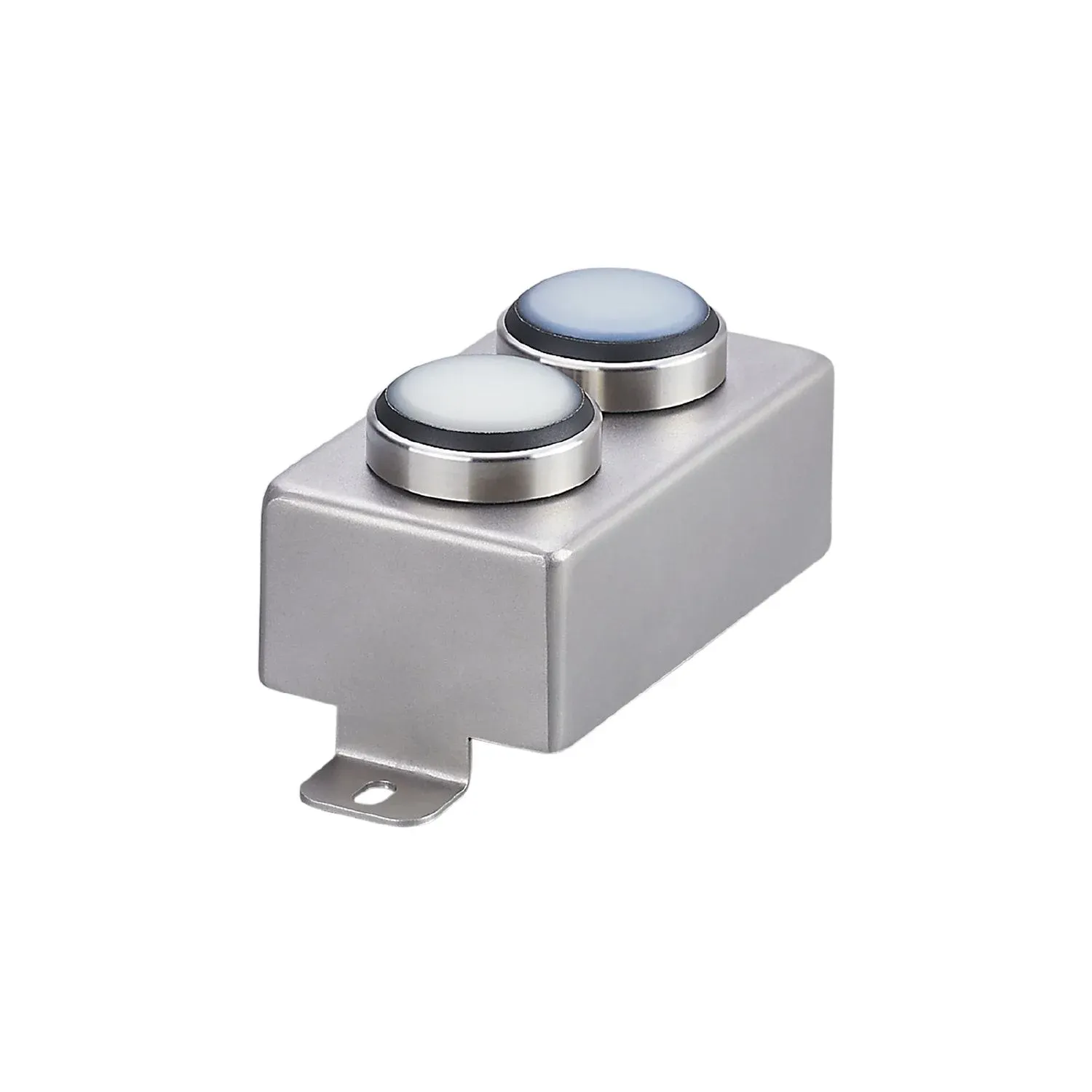

IFM AC2380
AC2380
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
2 pushbuttons and 2 LED outputs
pushbuttons with tactile pressure point as protection against accidental triggering
robust stainless steel housing with high protection rating
Quick and easy mounting
the module is directly supplied from AS-Interface
Specification
Application
| Application | field installation; hygienic and wet areas in the food industry |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 80 |
Inputs
| Sensor supply of the inputs | AS-i |
|---|
Outputs
| Electrical design | AS-i |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -25...70 |
|---|---|
| Storage temperature[°C] [°C] | -40...80 |
| Protection | IP 67; IP 68; IP 69K |
Tests / approvals
| EMC | EN 61000-6-2 EN 62026-2 |
|---|
AS-i classification
| AS-i version | 2.11; 3.0 |
|---|---|
| Extended addressing mode | yes |
| AS-i master profile | M2; M3; M4 |
| AS-i profile | S-B.A.E |
| AS-i I/O configuration[hex] [hex] | B |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 135301 |
| Assignment of the data bits | data bit D0 D1 D2 D3 LED 1 blue DO-0 - - - LED 2 white - DO-1 - - pushbutton 1 - - DI-2 (NO) - pushbutton 2 - - - DI-3 (NO) |
| data bit | D0 |
| LED 1 blue | DO-0 |
| LED 2 white | - |
| pushbutton 1 | - |
| pushbutton 2 | - |
Mechanical data
| Weight[g] [g] | 275.6 |
|---|---|
| Housing | rectangular |
| Type of mounting | screw mounting |
| Dimensions[mm] [mm] | 118 x 46.5 x 50 |
| Materials | housing: stainless steel |
Displays / operating elements
| Display | operation LED, green errors LED, red |
|---|---|
| operation | LED, green |
| errors | LED, red |
| Operating elements | 2 freely programmable backlit function keys |
| 2 | freely programmable backlit function keys |
Electrical connection
| Module connection | M12 |
|---|
Remarks
| Remarks | The pushbutton modules (RAFI type RAFIX22) offer protection against accidental contact. |
|---|---|
| Pack quantity | 1 pcs. |
