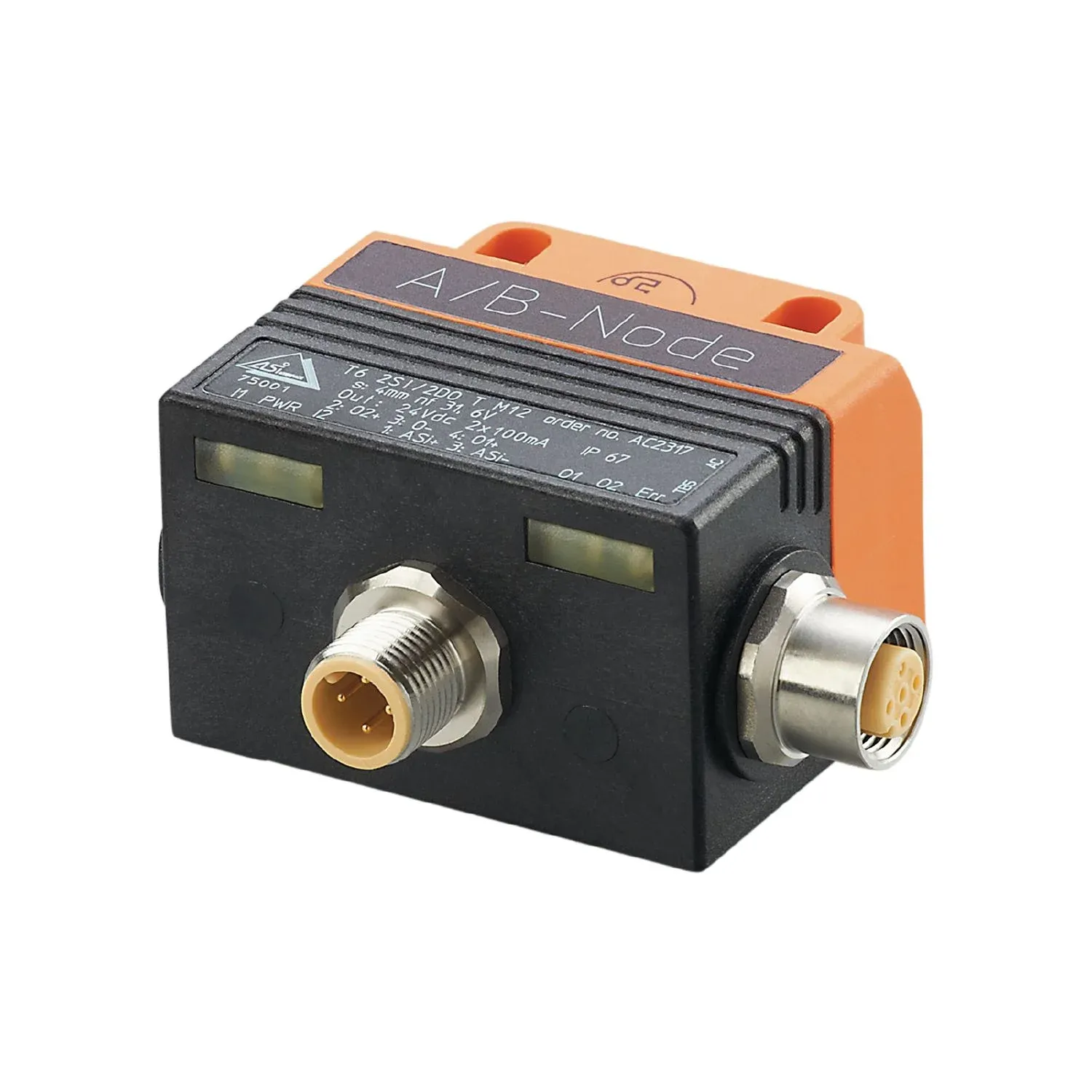

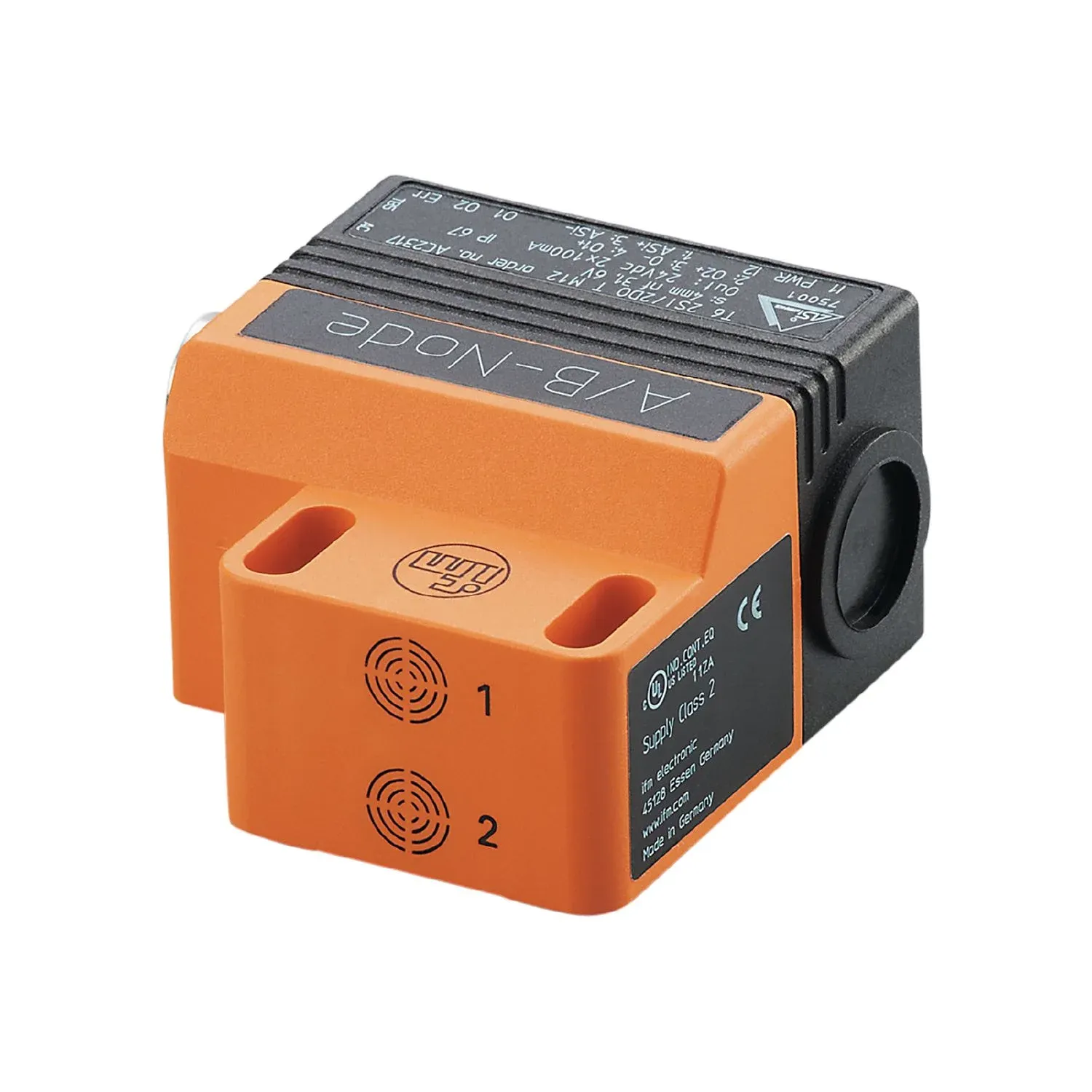

IFM AC2317
AC2317
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For monitoring valve positions
For reliable position feedback on valve actuators
With triggering and fault monitoring of the solenoid valve
Non-contact and self-cleaning system
Quick and secure mounting with only three screws
Specification
Product characteristics
| Electrical design | AS-i |
|---|---|
| Sensing range[mm] [mm] | 4 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 55 x 60 x 35 |
Application
| Application | position sensor for valve actuators; actuator control |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC; ("supply class 2" to cULus) |
|---|---|
| Max. current consumption from AS-i[mA] [mA] | 260 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital inputs: 2; Number of digital outputs: 2 |
|---|
Inputs
| Number of digital inputs | 2 |
|---|---|
| Sensor supply of the inputs | AS-i |
| Power supply[V] [V] | 20...30 |
| Digital inputs protected against short circuits | no |
Outputs
| Electrical design | AS-i |
|---|---|
| Number of digital outputs | 2 |
| Max. current load per output[mA] [mA] | 100 |
| Short-circuit proof | yes |
| Electrically separated | no |
| Actuator supply outputs | AS-i |
Detection zone
| Sensing range[mm] [mm] | 4 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 EN 61000-6-2 |
|---|---|
| MTTF[years] [years] | 310 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | yes |
| AS-i profile | S-7.A.E |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | A.E |
| AS-i certificate | 75001 |
Mechanical data
| Weight[g] [g] | 178.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 55 x 60 x 35 |
| Materials | PBT; PC |
Displays / operating elements
| Display | operation 1 x LED, green function 1 x LED, yellow error 1 x LED, red |
|---|---|
| operation | 1 x LED, green |
| function | 1 x LED, yellow |
| error | 1 x LED, red |
Accessories
| Items supplied | Reinforcement bracket: 1 x (39,5 x 17,5 x 1 mm), E11310 socket head screws: 2 x (M5 x 35 mm) washers: 2 |
|---|
Remarks
| Remarks | The outputs must not be set simultaneously if the total load current exceeds 100 mA. |
|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector | 1 x M12; coding: A; Moulded body: stainless steel |
|---|
Electrical connection - socket
| Connector | 1 x M12; coding: A; Moulded body: stainless steel |
|---|
