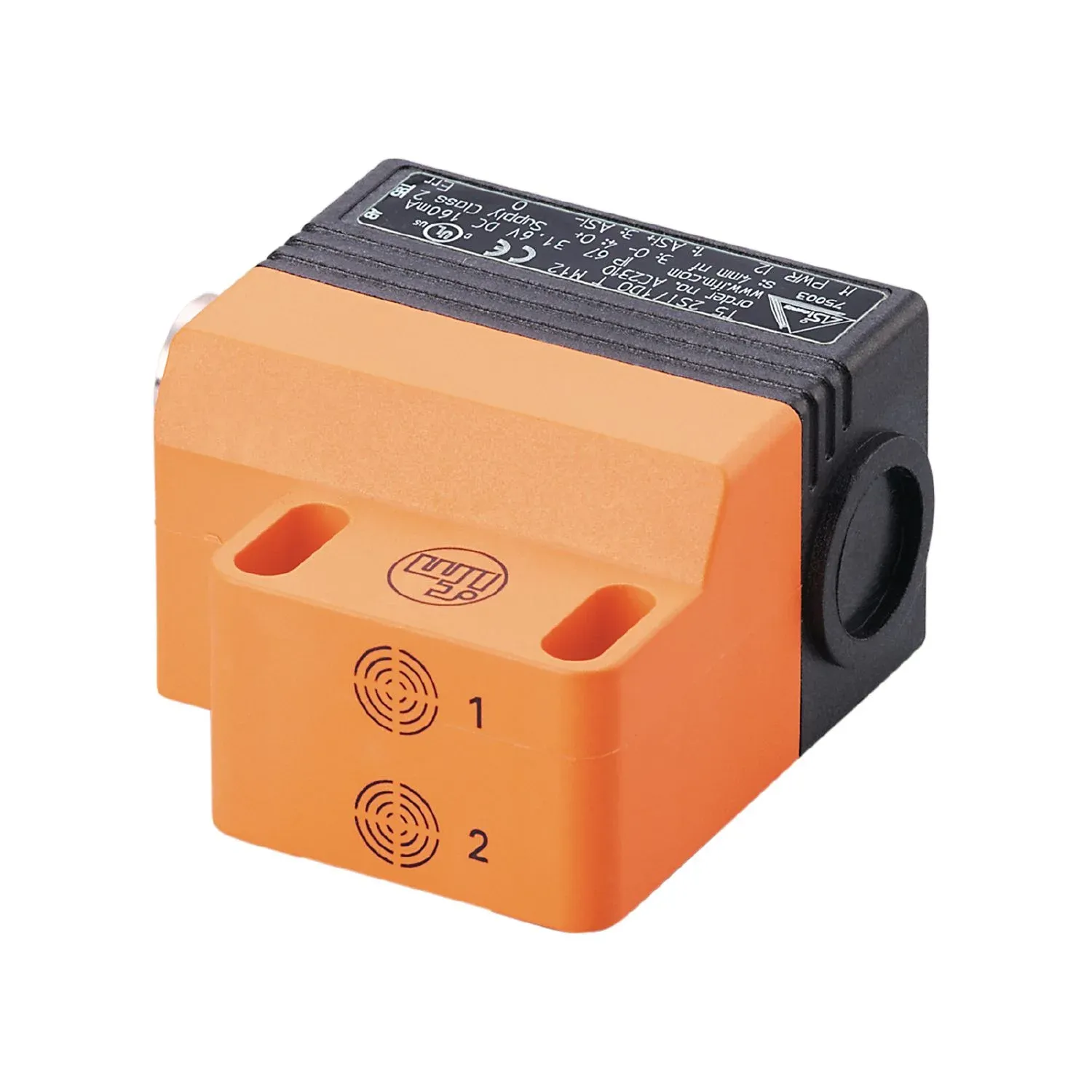

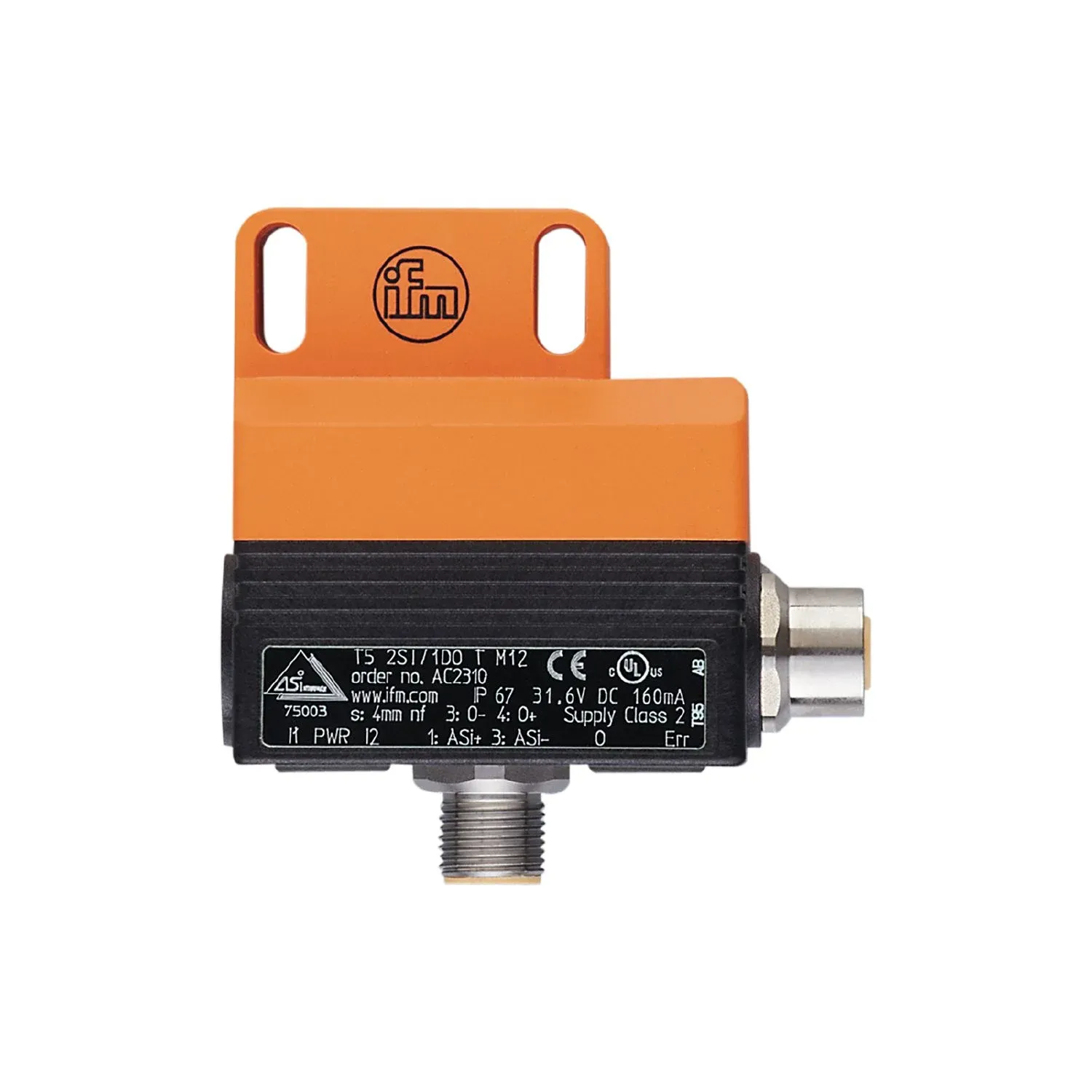

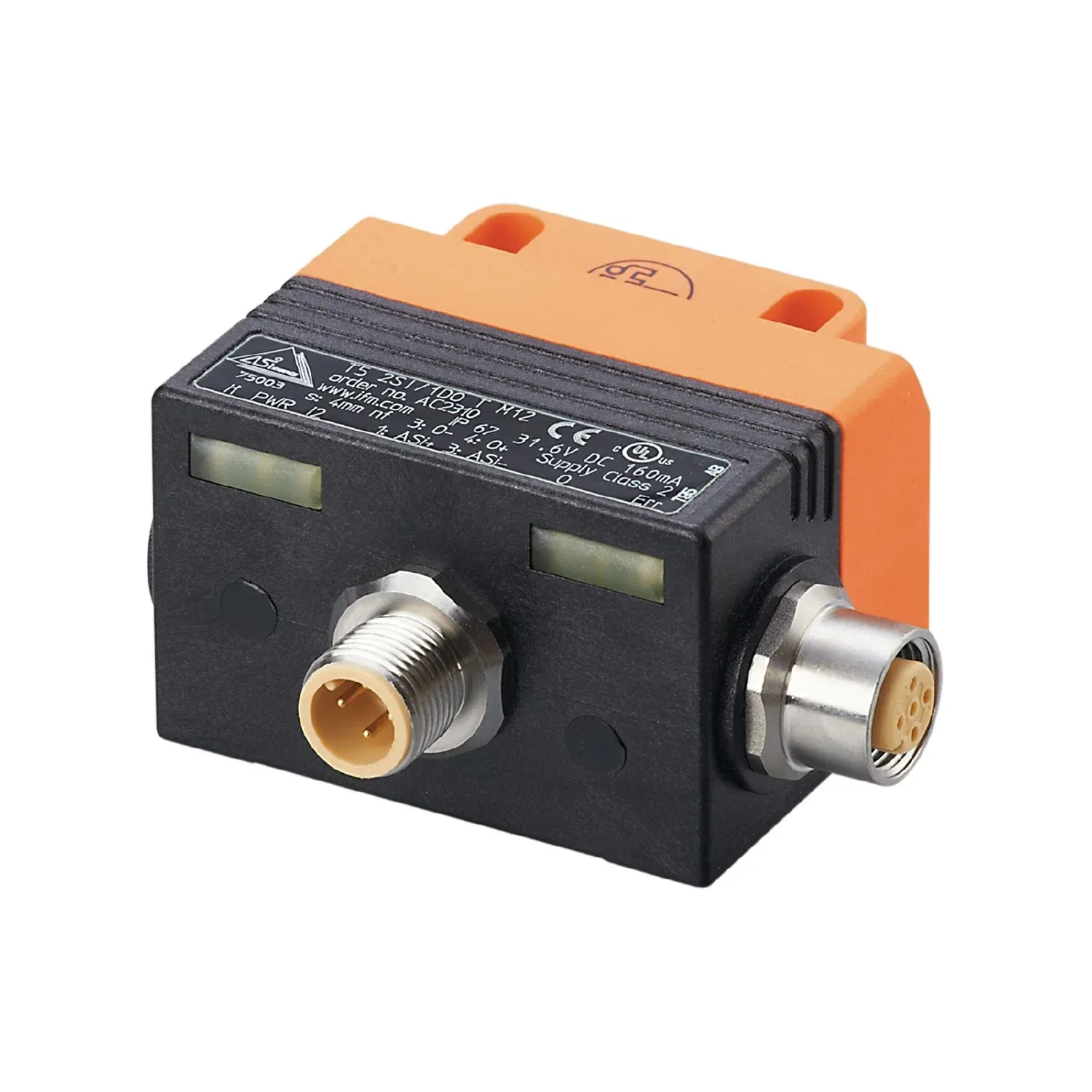

IFM AC2310
AC2310
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
For monitoring valve positions
For reliable position feedback on valve actuators
With triggering and fault monitoring of the solenoid valve
Non-contact and self-cleaning system
Quick and secure mounting with only three screws
Specification
Product characteristics
| Electrical design | AS-i |
|---|---|
| Sensing range[mm] [mm] | 4 |
| Housing | rectangular |
| Dimensions[mm] [mm] | 55 x 60 x 35 |
Application
| Application | position sensor for valve actuators; actuator control |
|---|
Electrical data
| Operating voltage[V] [V] | 26.5...31.6 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption[mA] [mA] | < 160 |
Outputs
| Electrical design | AS-i |
|---|---|
| Permanent current rating of switching output DC[mA] [mA] | 100 |
| Short-circuit proof | yes |
Detection zone
| Sensing range[mm] [mm] | 4 |
|---|
Operating conditions
| Ambient temperature[°C] [°C] | -20...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC | EN 50295 EN 61000-6-2 |
|---|---|
| MTTF[years] [years] | 394 |
AS-i classification
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | no |
| AS-i I/O configuration[hex] [hex] | 7 |
| AS-i ID code[hex] [hex] | F.F |
| AS-i certificate | 75003 |
Mechanical data
| Weight[g] [g] | 179.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions[mm] [mm] | 55 x 60 x 35 |
| Materials | PBT; PC |
Displays / operating elements
| Display | operation 1 x LED, green function 1 x LED, yellow error LED, red |
|---|---|
| operation | 1 x LED, green |
| function | 1 x LED, yellow |
| error | LED, red |
Accessories
| Items supplied | Reinforcement bracket: 1 x (39,5 x 17,5 x 1 mm), E11310 socket head screws: 2 x (M5 x 35 mm) washers: 2 |
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
